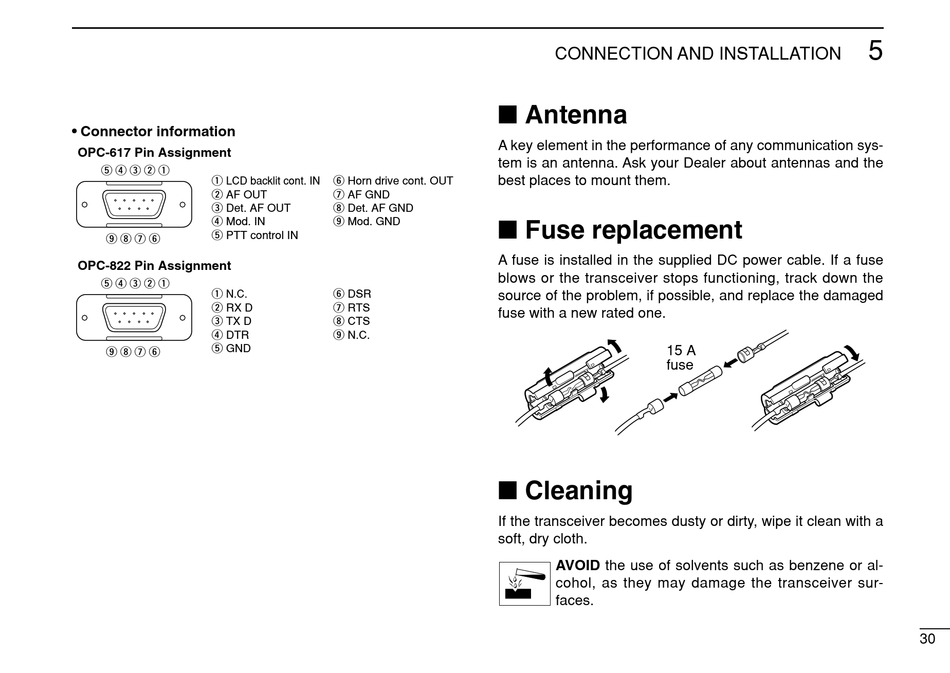

• Connector information
OPC-617 Pin Assignment
t r e w q
q LCD backlit cont. IN
w AF OUT
e Det. AF OUT
r Mod. IN
t PTT control IN
o i u y
OPC-822 Pin Assignment
t r e w q
q N.C.
w RX D
e TX D
r DTR
t GND
o i u y

I Antenna

A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
y Horn drive cont. OUT best places to mount them.
u AF GND
i Det. AF GND

I Fuse replacement

o Mod. GND
A fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
y DSR
source of the problem, if possible, and replace the damaged
u RTS
fuse with a new rated one.
i CTS
o N.C.

I Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
CONNECTION AND INSTALLATION
15 A
fuse
AVOID the use of solvents such as benzene or al-
cohol, as they may damage the transceiver sur-
faces.
5
30
