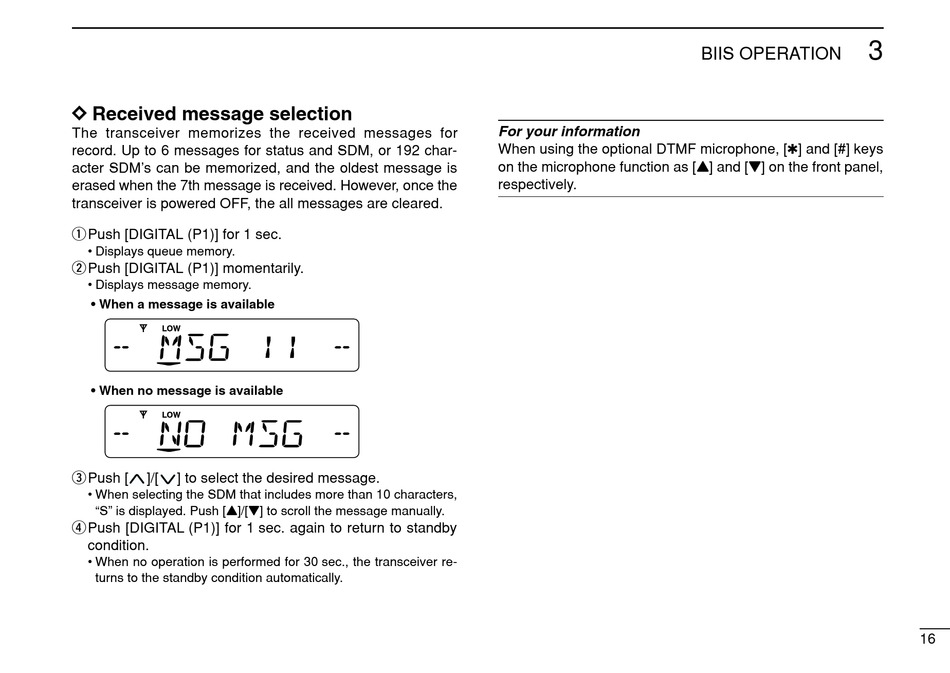

D D Received message selection
The transceiver memorizes the received messages for
record. Up to 6 messages for status and SDM, or 192 char-
acter SDM's can be memorized, and the oldest message is
erased when the 7th message is received. However, once the
transceiver is powered OFF, the all messages are cleared.
q Push [DIGITAL (P1)] for 1 sec.
• Displays queue memory.
w Push [DIGITAL (P1)] momentarily.
• Displays message memory.
• When a message is available
• When no message is available
e Push [
]/[ ] to select the desired message.
• When selecting the SDM that includes more than 10 characters,
"S" is displayed. Push [Y]/[Z] to scroll the message manually.
rPush [DIGITAL (P1)] for 1 sec. again to return to standby
condition.
• When no operation is performed for 30 sec., the transceiver re-
turns to the standby condition automatically.
For your information
When using the optional DTMF microphone, [✱] and [#] keys
on the microphone function as [Y] and [Z] on the front panel,
respectively.
3
BIIS OPERATION
16
