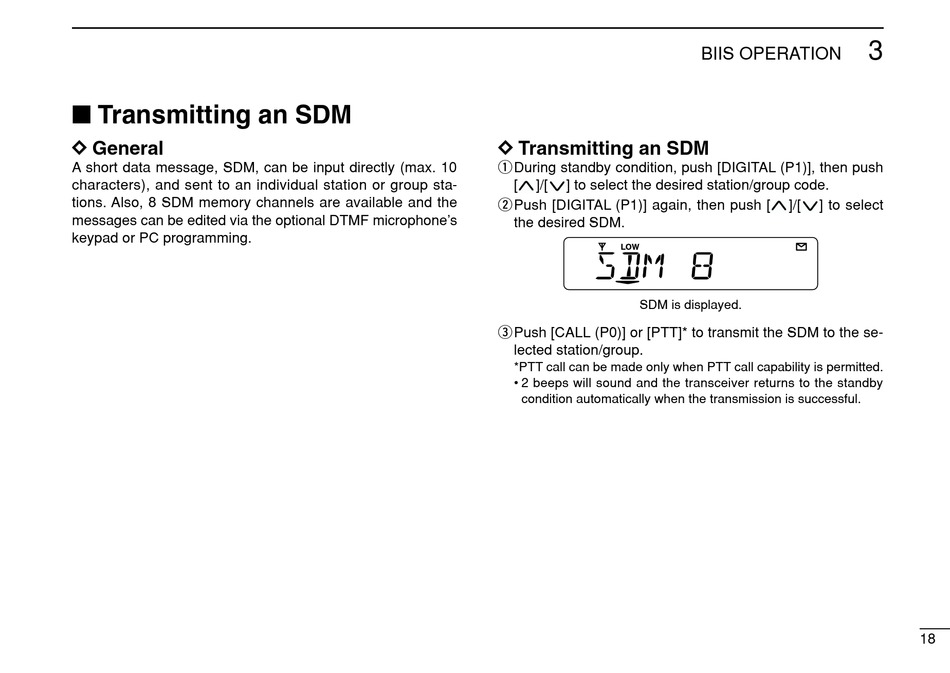

I Transmitting an SDM

D D General
A short data message, SDM, can be input directly (max. 10
characters), and sent to an individual station or group sta-
tions. Also, 8 SDM memory channels are available and the
messages can be edited via the optional DTMF microphone's
keypad or PC programming.
D D Transmitting an SDM
qDuring standby condition, push [DIGITAL (P1)], then push
[ ]/[ ] to select the desired station/group code.
wPush [DIGITAL (P1)] again, then push [
the desired SDM.
SDM is displayed.
ePush [CALL (P0)] or [PTT]* to transmit the SDM to the se-
lected station/group.
*PTT call can be made only when PTT call capability is permitted.
• 2 beeps will sound and the transceiver returns to the standby
condition automatically when the transmission is successful.
3
BIIS OPERATION
]/[ ] to select
18
