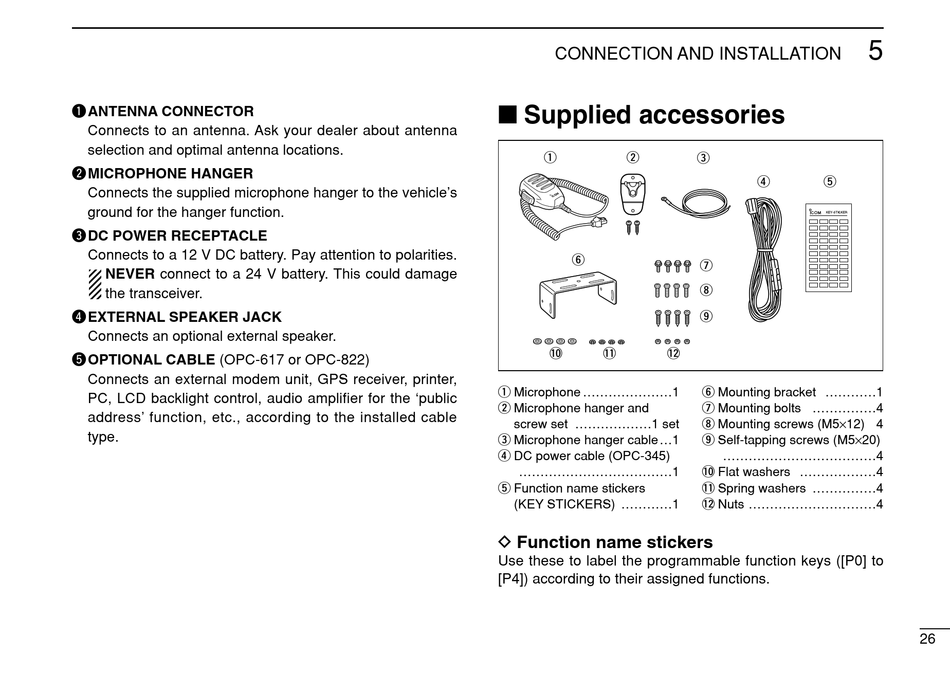

I Supplied Accessories - Icom IC-F510 Instruction Manual

q ANTENNA CONNECTOR
Connects to an antenna. Ask your dealer about antenna
selection and optimal antenna locations.
w MICROPHONE HANGER
Connects the supplied microphone hanger to the vehicle's
ground for the hanger function.
e DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay attention to polarities.
NEVER connect to a 24 V battery. This could damage
the transceiver.
r EXTERNAL SPEAKER JACK
Connects an optional external speaker.
t OPTIONAL CABLE (OPC-617 or OPC-822)
Connects an external modem unit, GPS receiver, printer,
PC, LCD backlight control, audio amplifier for the 'public
address' function, etc., according to the installed cable
type.
CONNECTION AND INSTALLATION

I Supplied accessories

q w
y
!0 !1 !2
q Microphone .....................1
w Microphone hanger and
screw set ..................1 set
e Microphone hanger cable ...1
r DC power cable (OPC-345)
....................................1
t Function name stickers
(KEY STICKERS) ............1
D Function name stickers
Use these to label the programmable function keys ([P0] to
[P4]) according to their assigned functions.
5
e
r t
u
i
o
y Mounting bracket ............1
u Mounting bolts ...............4
i Mounting screws (M5×12) 4
o Self-tapping screws (M5×20)
....................................4
!0 Flat washers ..................4
!1 Spring washers ...............4
!2 Nuts ..............................4
26
