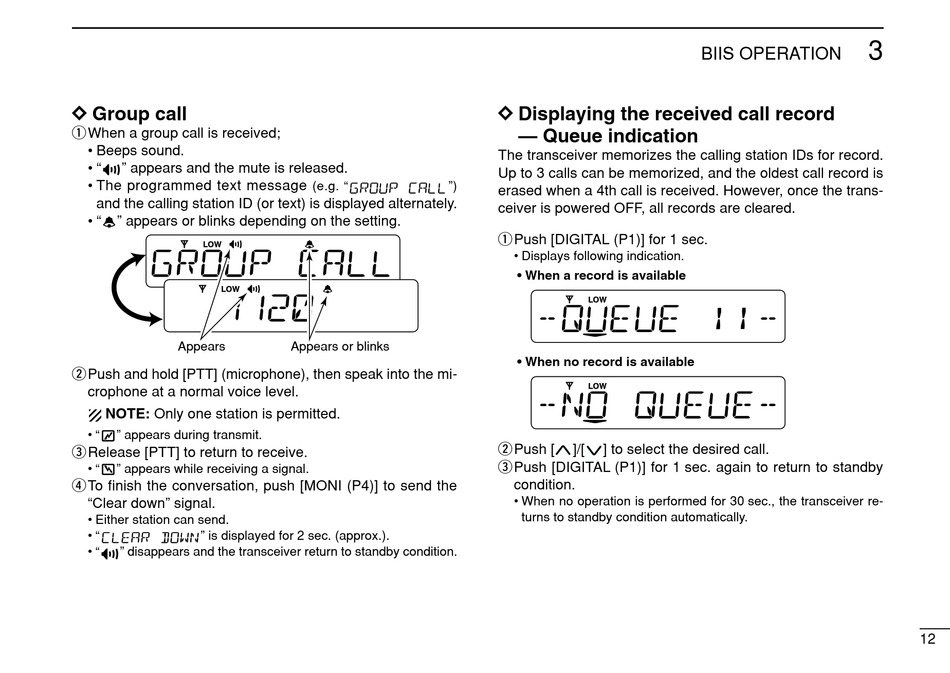

D Displaying The Received Call Record - Icom IC-F510 Instruction Manual

D D Group call
q When a group call is received;
• Beeps sound.
• " " appears and the mute is released.
• The programmed text message
and the calling station ID (or text) is displayed alternately.
• " " appears or blinks depending on the setting.
Appears
wPush and hold [PTT] (microphone), then speak into the mi-
crophone at a normal voice level.
NOTE: Only one station is permitted.
• " " appears during transmit.
e Release [PTT] to return to receive.
• " " appears while receiving a signal.
rTo finish the conversation, push [MONI (P4)] to send the
"Clear down" signal.
• Either station can send.
• " " is displayed for 2 sec. (approx.).
• " " disappears and the transceiver return to standby condition.
(e.g. " ")
Appears or blinks
D D Displaying the received call record
— Queue indication
The transceiver memorizes the calling station IDs for record.
Up to 3 calls can be memorized, and the oldest call record is
erased when a 4th call is received. However, once the trans-
ceiver is powered OFF, all records are cleared.
q Push [DIGITAL (P1)] for 1 sec.
• Displays following indication.
• When a record is available
• When no record is available
w Push [
]/[ ] to select the desired call.
ePush [DIGITAL (P1)] for 1 sec. again to return to standby
condition.
• When no operation is performed for 30 sec., the transceiver re-
turns to standby condition automatically.
3
BIIS OPERATION
12
