5
CONNECTION AND INSTALLATION

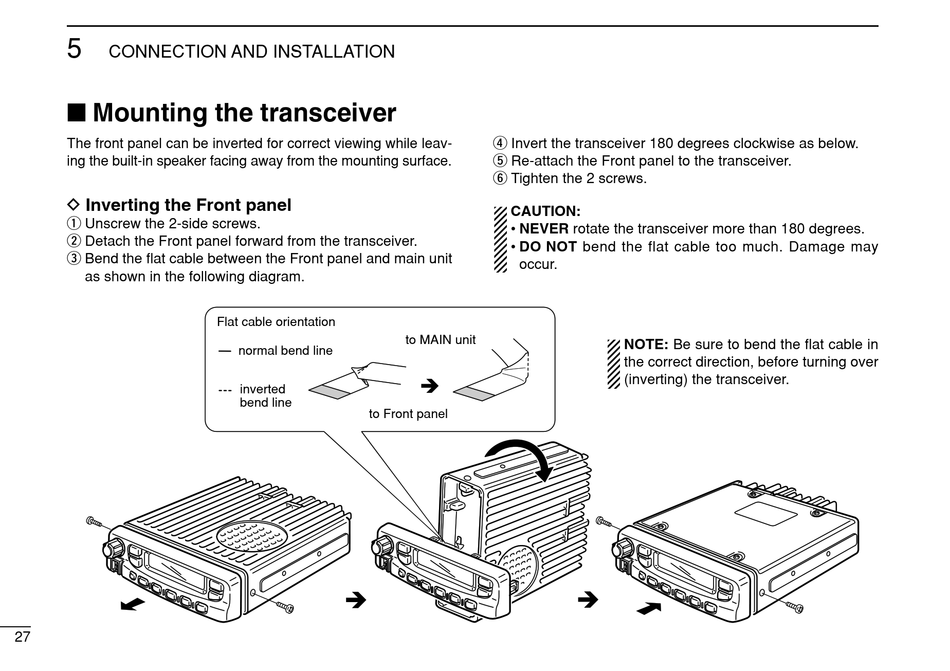

I Mounting the transceiver

The front panel can be inverted for correct viewing while leav-
ing the built-in speaker facing away from the mounting surface.

D Inverting the Front panel

q Unscrew the 2-side screws.
w Detach the Front panel forward from the transceiver.
e Bend the flat cable between the Front panel and main unit
as shown in the following diagram.
27
Flat cable orientation
normal bend line
inverted
bend line
to Front panel
r Invert the transceiver 180 degrees clockwise as below.
t Re-attach the Front panel to the transceiver.
y Tighten the 2 screws.
CAUTION:
• NEVER rotate the transceiver more than 180 degrees.
• DO NOT bend the flat cable too much. Damage may
occur.
to MAIN unit
NOTE: Be sure to bend the flat cable in
the correct direction, before turning over
(inverting) the transceiver.
