installing the axis 231D/232D Camera (cont.)

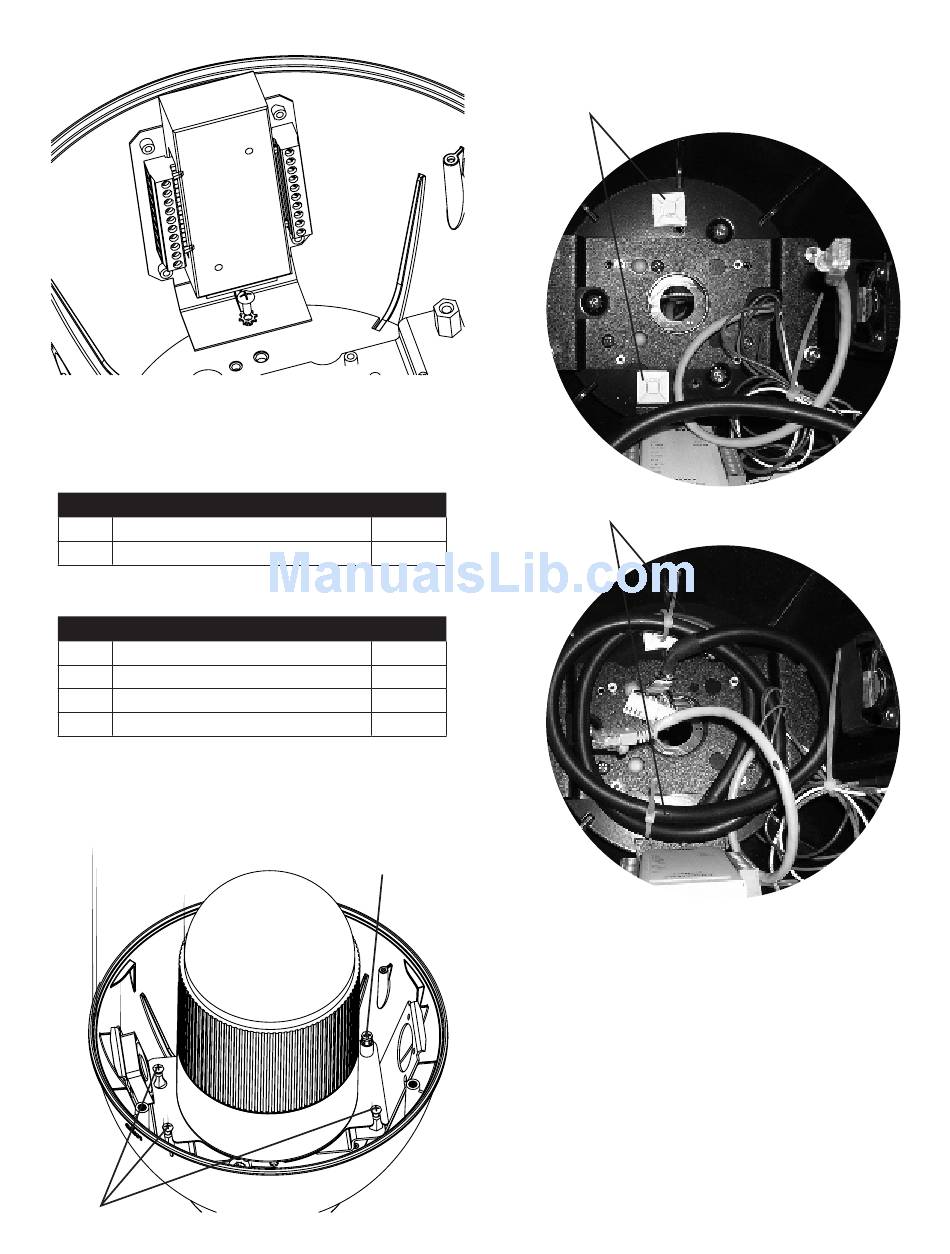

12. Make wiring connections to connector block assembly per
camera instructions.
For Model 25733 only
PoWER
1 Camera Power (24VAC)
2 Camera Power (24VAC)
CONTROL
RJ45 Ethernet Connector
alaRMs
1 Alarm 1
2 Alarm 2
3 Alarm 3
4 Common
Open screw slots
13. To manage the input cable running from the connector
block to the camera use the (2) cable tie mounts and
cable ties that are located in the housing packet.
Red
Orange
Blue
Violet
Gray
White
Captive screw
14. Now grab the camera assembly and connector the RJ45
cable and the input cable to the camera (see diagram
opposite).
15. Now attach the camera assembly to the housing by sliding
the (3) open screw slots over the screws in the housing.
Slide the bracket forward, and the tighten the captive
screw on the bracket.
- 9 -
Cable Tie Mounts
Cable Ties
