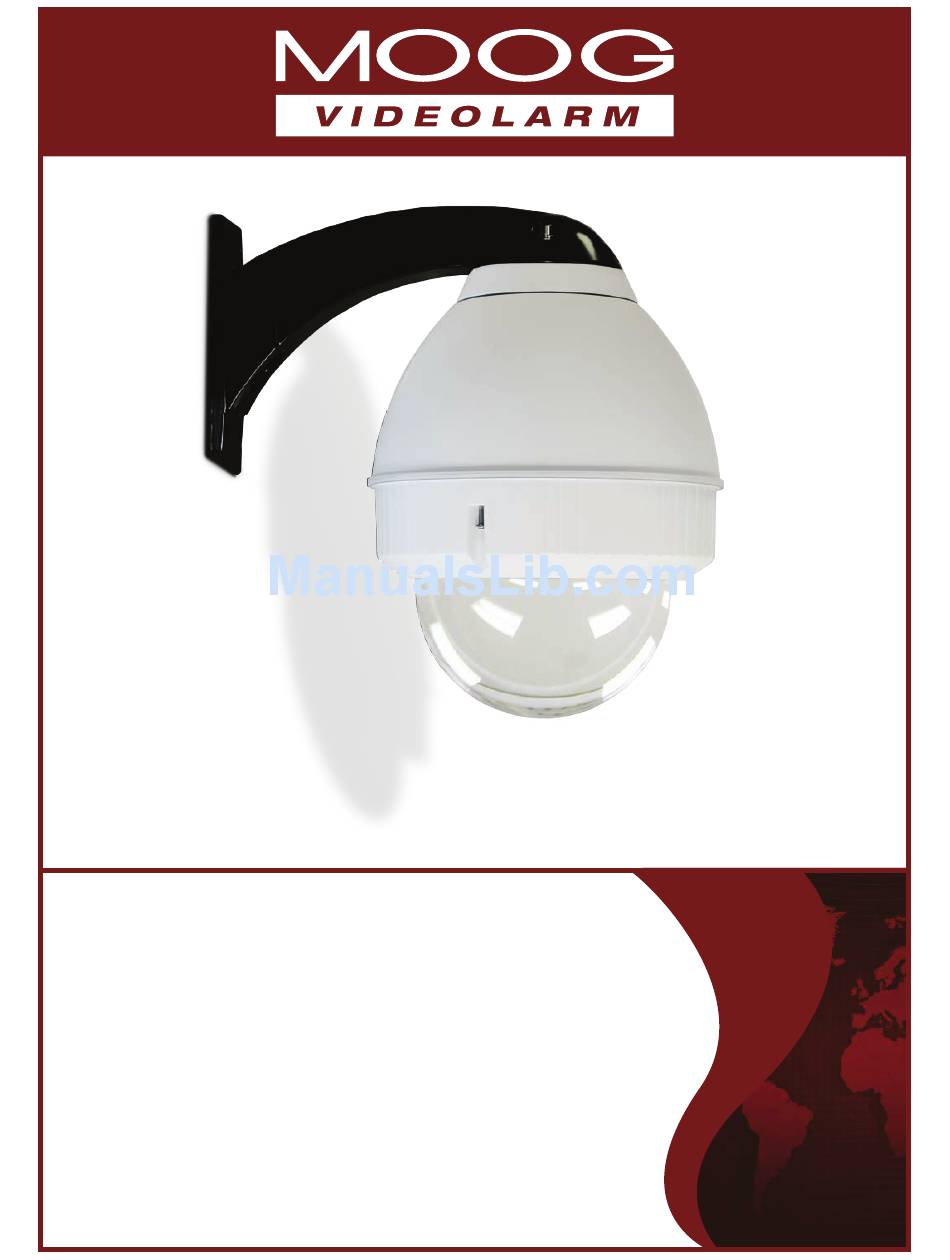

© 2011, Moog Videolarm, Inc. All Rights Reserved
F D W 7 5 C F 2 N

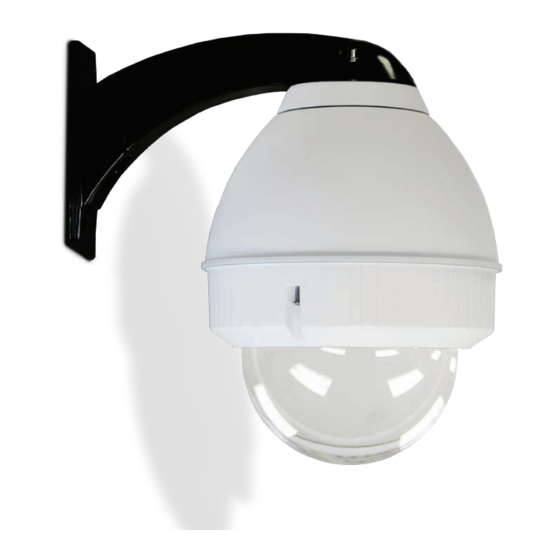

Fixed Camera Fusion Dome (Outdoor/ Indoor Wall Mount with Housing)
Installation and Operation Instructions for the following models:
FDW75CF2N
IP Network Ready 7" Outdoor dome housing with wall mount, clear dome,
with 24VAC input, heater/blower, for an IP Network fixed camera, 120 to
24VAC transformer
FDW75TF2N
IP Network Ready 7" Outdoor dome housing with wall mount,tinted dome, with
24VAC input, heater/blower, for an IP Network fixed camera, 120 to
24VAC transformer
IFDP75CF2N
IP Network Ready 7" Indoor dome housing with pendent mount, clear dome
with 24VAC input, heater/blower, for an IP Network fixed camera, 120 to
24VAC transformer
FDW75CF2
Outdoor dome housing with wall mount, clear dome with 24VAC input,
heater/blower, fixed camera bracket
IFDW7CF
Indoor dome housing with wall mount, fixed camera bracket
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5359
01-31-2012
Advertisement
Table of Contents
Related Manuals for Moog Videolarm FDW75CF2N
Summary of Contents for Moog Videolarm FDW75CF2N
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved F D W 7 5 C F 2 N Fixed Camera Fusion Dome (Outdoor/ Indoor Wall Mount with Housing) www.videolarm.com Installation and Operation Instructions for the following models: FDW75CF2N IP Network Ready 7” Outdoor dome housing with wall mount, clear dome, with 24VAC input, heater/blower, for an IP Network fixed camera, 120 to 24VAC transformer FDW75TF2N IP Network Ready 7” Outdoor dome housing with wall mount,tinted dome, with...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Electrical Specifications Contents of Box FDW75F2N Power 24VAC Class 2 Only 24 VAC 26 Watts Accessories: Heater: 25 Watts, Blower: 1 Watt Camera Power: 26 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 24 VAC 26 vatios Accesorios: Calentador: 25 Vatios, Soplador: 1 vatio Energía De la Cámara fotográfica:... - Page 5 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket. conduit). Run wire into bracket, secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
- Page 6 WALL MOUNTING Important Gasket Must be in place 26 Watts COAX (coax wire not supplied) Wiring the dome can be completed by Align large arrows. referring to the diagram. • Atar con alambre la bóveda puede ser terminada • Alinee las flechas grandes. refiriendo al diagrama.
- Page 7 FOR PENDENT/ WALL MOUNTING 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
- Page 8 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Alignez les grandes flèches. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre.
- Page 9 RJ45 24VAC POWER Camera Max 40 Watts Camera Orange Heater/Blower Yellow 26 Watts Heater/Blower Green Make the appropriate male and female connections. Indoor model does not include pre-run cables. • Haga las conexiones masculinas y femeninas apropiadas. El modelo de interior no incluye pre-funciona los cables. •...
- Page 10 Loosen the thumb screws to adjust the Bolt camera to camera bracket as shown. cameras height and tilt angle. • Cámara fotográfica del perno al soporte de la cámara • Afloje los tornillos de pulgar para ajustar la altura de las fotográfica según lo demostrado.
- Page 11 Fasten down the dome with a Phillips Wipe the dome clean. screwdriver. • Sujete abajo de la bóveda con un destornillador • Limpie la bóveda limpia. Phillips. • Attachez en bas du dôme avec un tournevis • Essuyez le dôme. Phillips.
-
Page 12: Replacement Parts List
Replacement Parts List FDW75CF2N PART NUMBER DESCRIPTION FD7C CLEAR REPLACEMENT CAPSULE 1A FD7T TINTED REPLACEMENT CAPSULE RPFD7501 LOWER TRIM RING RPFD703 DOME CLAMPING RING RPNET02 NETWORK HGS POWER SUPPLY RPFD072 24V HEATER 5A RPFD072/12 12V HEATER (12VDC MODELS ONLY) RPFD080... -
Page 13: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
