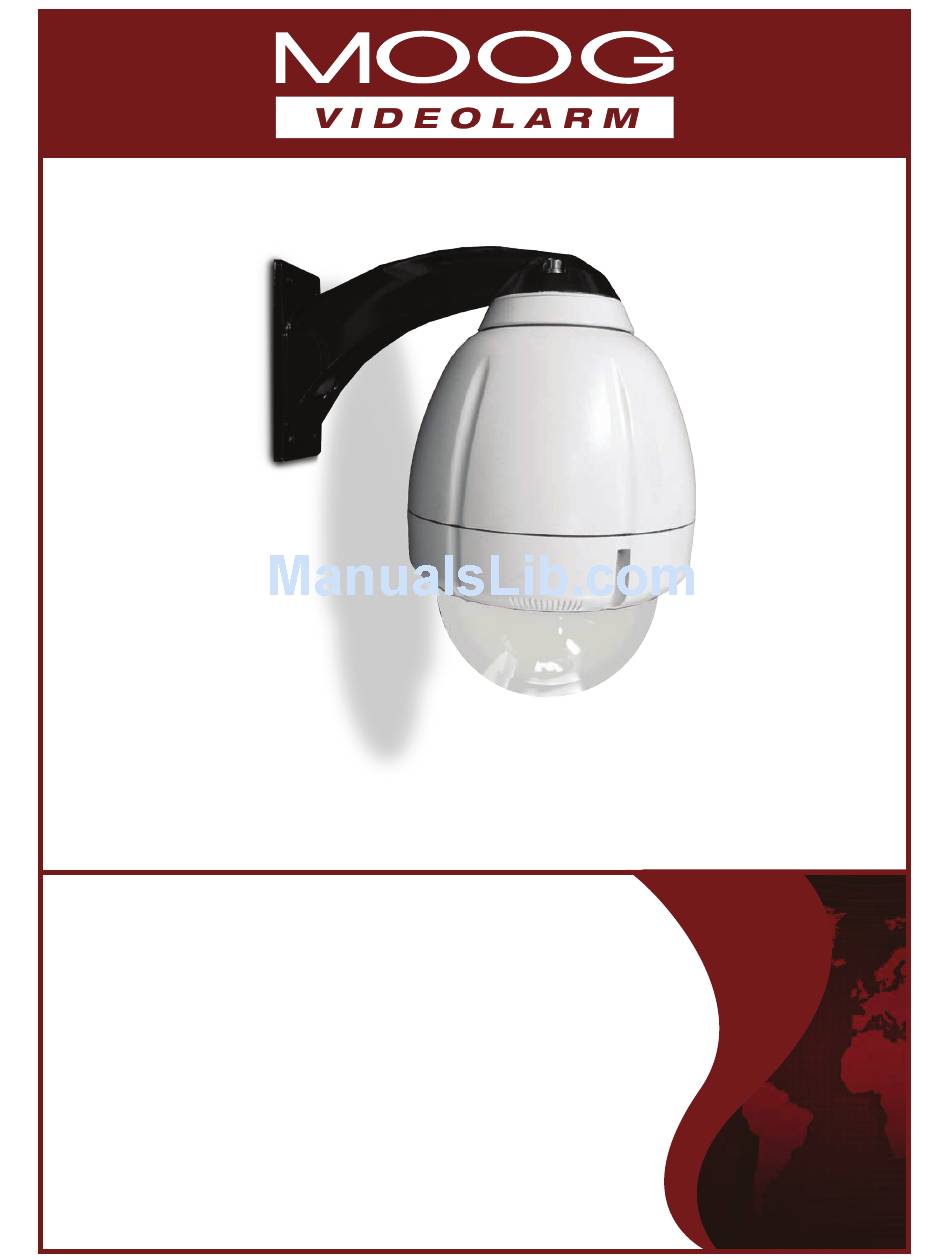

© 2011, Moog Videolarm, Inc. All Rights Reserved
R H W 7 5 C F 2 N / I R H W 7 5 C F 2 N
Outdoor / Indoor Dome Housing Brackets and Mounts
Installation and Operation Instructions for the following models:
RHW75CF2N
IP Network Ready 7" Vandal-Resistant Outdoor dome housing with wall mount,
rugged cast aluminum top and polycarbonate clear dome, with 24Vac input,
heater/blower, for an IP Network fixed camera, 120 to 24Vac transformer
RHW75TF2N
IP Network Ready 7" Vandal-Resistant Outdoor dome housing with wall mount, rugged cast
aluminum top and polycarbonate tinted dome, with 24Vac input, heater/blower, for an IP
Network fixed camera, 120 to 24Vac transformer
IRHW75CF2N
IP Network Ready 7" Vandal-Resistant Indoor dome housing with wall mount, rugged cast
aluminum top and polycarbonate clear dome, with 24Vac input, heater/blower, for an IP
Network fixed camera, 120 to 24Vac transformer
RHW7CF2
Vandal-Resistant Outdoor dome housing with wall mount, rugged cast aluminum
top and polycarbonate clear dome, with 24Vac input, for an fixed analog camera
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5377
01-31-2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRHW75CF2N and is the answer not in the manual?

Questions and answers

Summary of Contents for Moog Videolarm IRHW75CF2N

  • Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved R H W 7 5 C F 2 N / I R H W 7 5 C F 2 N Outdoor / Indoor Dome Housing Brackets and Mounts www.videolarm.com Installation and Operation Instructions for the following models: RHW75CF2N IP Network Ready 7” Vandal-Resistant Outdoor dome housing with wall mount,...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3: Product Category

    If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
  • Page 4: Electrical Speci Cations

    (1) BNC (Video Analog) (2) Connettori Della Vite-Giù (Power/Alarms) (1) RJ45 (dati) IRHW75CF2N (Indoor Only) 25 Watts at 24 VAC (Camera Only) No Input Connectors: All wiring is to be ran directly to the camera Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 25 vatios en 24 VAC (cámara fotográ...
  • Page 5 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket. conduit). Run wire into bracket, secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
  • Page 6 WALL MOUNTING Important Gasket Must be in place 27 Watts 52 Watts COAX (coax wire not supplied) Wiring the dome can be completed by Align large arrows. referring to the diagram. • Atar con alambre la bóveda puede ser terminada •...
  • Page 7 FOR PENDENT/ WALL MOUNTING 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
  • Page 8 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Alignez les grandes flèches. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre.
  • Page 9 RJ45 24VAC POWER Camera 27 Watts (MAX) Camera Orange Heater/Blower Yellow 52 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White Make the appropriate male and female connections. Indoor model does not include pre-run cables. •...
  • Page 10   Align the arrows on the outside of the dome Connect Lanyard to trim ring assembly. and lock. • Alinee las flechas en el exterior de la bóveda y • Conecte el acollador con el montaje del anillo del trábese.
  • Page 11: Replacement Parts List

    Replacement Parts List RHW75CF2N IRHW75CF2N Part Description RPRH7502 LOWER TRIM RING DOME CLAMPING RPRH7503 BRACKET RC7T TINTED REPLACEMENT CAPSULE CLEAR REPLACEMENT RC7C CAPSULE RPFD072 24 VAC HEATER (12 VDC) BLOWER (USED RPFD080 IN 24V HOUSING) RPRH707 CONNECTION PCB (NETWORK MODELS)
  • Page 12: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...

This manual is also suitable for:

Rhw75cf2nRhw75tf2nRhw7cf2
