Sony Sncrz25 - Moog Videolarm IP Ready IFDW75CN Product Instructions

installinG QuiCk RElEasE BRaCkEts

SONY SNCRZ25

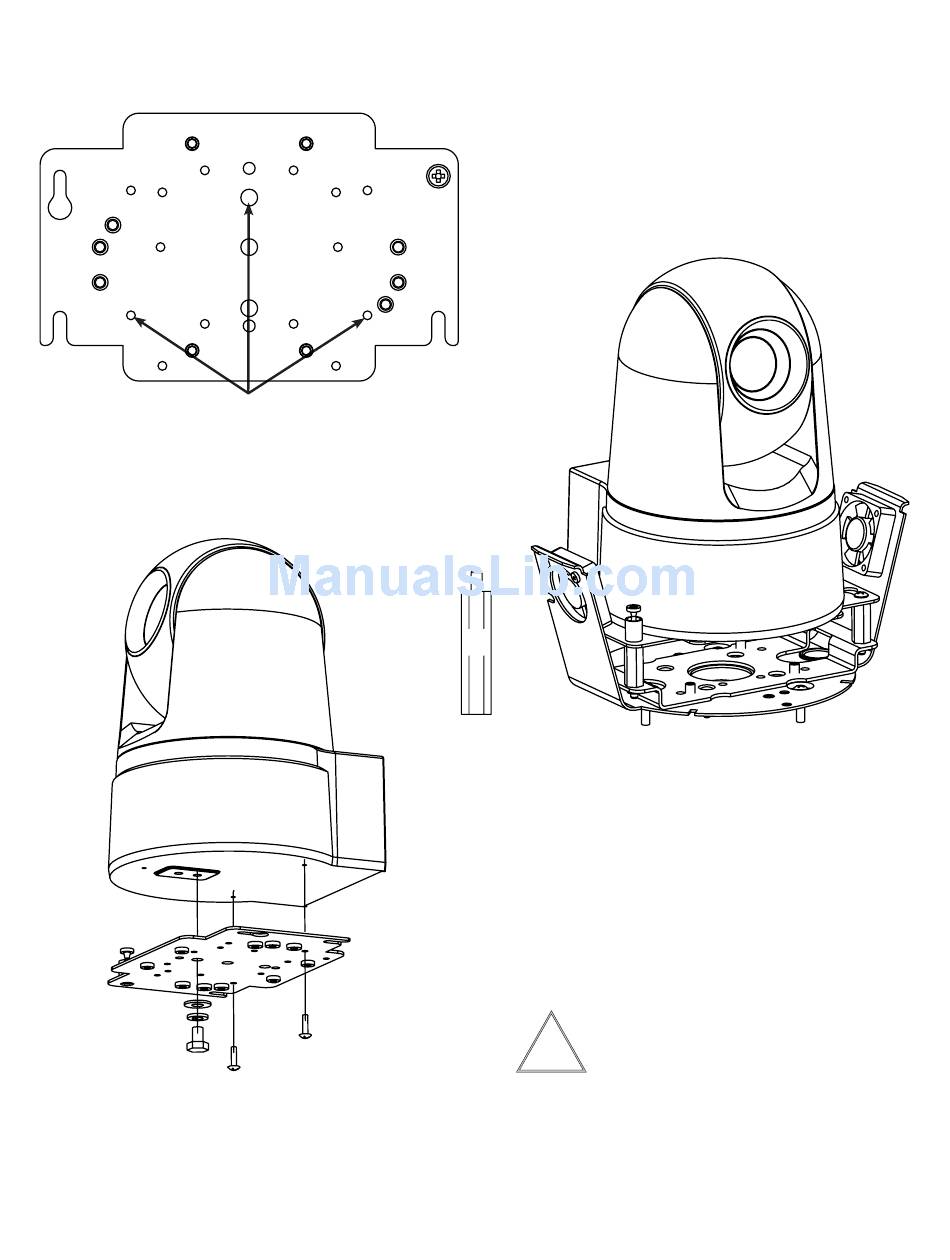

2539 Mounting Plate:
Attach camera using these (3) holes
1. Attach the SNCRZ25 camera to 2539 mounting plate
using (1) ¼ x 20 bolt, washer and lockwasher and
(2) 3mm x 8mm Philip head screw and lockwashers
provided.
1"
2. The SNCRZ25 require 1" of spacing to properly position
the camera in the housing. Use (4) 1" spacers provided
in the hardware packet.
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
5. ! notE: The SNCRZ25 is a 24Vac unit.
Check instructions for connecting 24Vac
camera (page 26).
-  -
