© 2009-2010, Moog Videolarm, Inc. All Rights Reserved
F D W 7 C N - 3
Outdoor / Indoor PTZ Fusion Dome Mount
Installation and Operation Instructions for the following models:

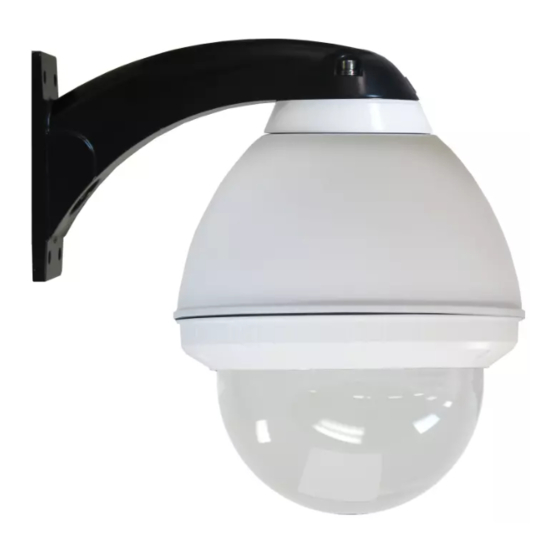

FDW7CN-3 IP Network Ready 7" Outdoor FusionDome PTZ Camera System with 23x zoom
IFDW7CN-3 Day/Night camera, wall mount, MPEG-4/ MJPEG video compression, full D1.
(Indoor)
Clear dome, with 24Vac input, heater/blower (Outdoor only)
FDP7CN-3 IP Network Ready 7" Outdoor FusionDome PTZ Camera System with 23x zoom Day/Night
IFDP7CN-3 camera, pendent mount, MPEG-4/ MJPEG video compression, full D1. Clear dome, with
(Indoor)
24Vac input, heater/blower (Outdoor only)
FDW7CS-3 (Analog Version) 7" Outdoor FusionDome PTZ Camera System with 23x zoom Day/Night
IFDW7TS-3 camera, wall mount, MPEG-4/ MJPEG video compression, full D1. Clear dome, with
(Indoor)
24Vac input, heater/blower (Outdoor only)
FDP7CS-3
(Analog Version) 7" Outdoor FusionDome PTZ Camera System with 23x zoom
IFDP7CS-3 Day/Night camera, pendent mount, MPEG-4/ MJPEG video compression, full D1.
(Indoor)
Clear dome, with 24Vac input, heater/blower (Outdoor only)
The unit is available in both tinted (T) and clear (C) Models
Before attempting to connect or operate this product, please read these
instructions completely. To be used with the 81-IN5409 Instruction Manual.
www.videolarm.com
CERTIFIED
81-IN5357
07-26-2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm SView FDP7CN-3
Summary of Contents for Moog Videolarm SView FDP7CN-3
- Page 1 © 2009-2010, Moog Videolarm, Inc. All Rights Reserved F D W 7 C N - 3 Outdoor / Indoor PTZ Fusion Dome Mount Installation and Operation Instructions for the following models: FDW7CN-3 IP Network Ready 7” Outdoor FusionDome PTZ Camera System with 23x zoom IFDW7CN-3 Day/Night camera, wall mount, MPEG-4/ MJPEG video compression, full D1.
- Page 2 IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean only with damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Cable Runs- All cable runs must be within permissible distance.
-
Page 3: Limited Warranty
1. NOTIFICATIONOF CLAIMS: WARRANTYSERVICE: If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period. -
Page 4: Electrical Speci Cations
Electrical Speci cations Power 24VAC Class 2 Only 24 VAC 80 Watts Accessories: Heater: 50 Watts, Blower: 2 Watt Camera Power: (See Camera Speci cations): 28 Watts Max Tools Required: .100” Flat Head Screwdriver English 24 VAC 80 Vatios De Accesorios: Calentador: 50 Watts, Blower: 2 Vatio Energía De la Cámara fotográ... - Page 5 WALL MOUNTING Bracket is designed for 45° conduit tting (If using the conduit). Run wire into bracket secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el conducto). Funcione con el alambre en el soporte seguro para emparedar.
- Page 6 Important Gasket Must be in place Align large arrows • Con seguridad soporte del montaje a emparedar. Tire del cableado a través del soporte y del ojal de la posición según lo demostrado. • Solidement parenthèse de bâti à murer. Tirez le câblage par la parenthèse et le canon isolant de position comme montré.
- Page 7 4”-5” Trim incoming control and power wires to 4-5 for either wall or pendent bracket • La tapa segura de la cubierta SM5 con mercancías duras proporcionó; termine a la asamblea por las instrucciones SM5 • Le dessus bloqué du logement SM5 avec les articles durs a fourni;...
- Page 8 Align large arrows • Alinee las flechas grandes • Alignez les grandes flèches • Richten Sie große Pfeile aus • Alinhe grandes setas • Allini le grandi frecce Secure with ¼” Allen wrench • Asegure con la llave Allen del ¼” •...
- Page 9 Make the appropriate male and female connections. Indoor model does not include pre-run cables. • Haga las conexiones masculinas y femeninas apropiadas. El modelo de interior no incluye pre-funciona los cables. • Établissez les rapports masculins et femelles appropriés. Le modèle d'intérieur n'inclut pas pré-courent des câbles. •...
- Page 10 Remove Pan/Tilt from shipping carton. Install in base bracket in housing. • Quite Pan/Tilt del cartón del envío. Instale en soporte bajo en la cubierta. • Enlevez Pan/Tilt du carton d'expédition. Installez dans la parenthèse basse dans le logement. • Entfernen Sie Pan/Tilt vom Verschiffenkarton. Bringen Sie in niedrigen Haltewinkel im Gehäuse an.
- Page 11 Wipe the dome clean. • Limpie la bóveda limpia. • Essuyez le dôme. • Wischen Sie die Haube sauber ab. • Limpe a abóbada limpa. • Asciughi la cupola. Additional wires are provided to run power to PB24. Use with connector supplied. Run RJ45 connector through PB24, wall mount, and connect lead from housing.
-
Page 12: Replacement Parts List
Replacement Parts List PART NUMBER FD7C 1A FD7T RPFD7501 RPFD703 RPNET02 RPFD072 5A RPFD072/12 RPFD080 RP3510 RP70FP7PB 8A RP70FP7PB12 RPFD040 10 RPFD2612 11 RPFD3245 12 RPGK3356 13 RP3458 14 RP3551 15 RP3606 16 RP3719 N/S RPPKH2098 N/S RPPKE1100 N/S RPTRAN02 17 RPVL2857 18 RP76VL385A 19 RP96PSGK08... -
Page 13: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second- to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products...
