© 2011, Moog Videolarm, Inc. All Rights Reserved
R H W 7 5

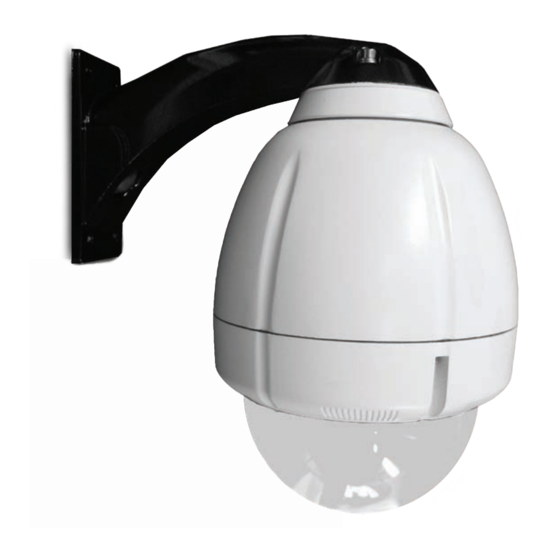

Vandal-Resistant Rugged (Outdoor Dome Housing)
Installation and Operation Instructions for the following models:
RHW75C2N IP Network Ready 7" Vandal-Resistant Outdoor dome housing with wall mount,
rugged cast aluminum top and polycarbonate clear dome, with 24VAC input,
heater/blower, for an IP Network PTZ camera, 120 to 24VAC transformer.
RHP75C2N IP Network Ready 7" Vandal-Resistant Outdoor dome housing with pendent mount,
rugged cast aluminum top and polycarbonate clear dome, with 24VAC input,
heater/blower, for an IP Network PTZ camera, 120 to 24VAC transformer.
IRHW75C2N IP Network Ready 7" Vandal-Resistant Indoor dome housing with wall mount, rugged cast
aluminum top and polycarbonate clear dome.
IRHP75C2N IP Network Ready 7" Vandal-Resistant Indoor dome housing with pendent mount,
rugged cast aluminum top and polycarbonate clear dome.
IRHW7C
Vandal-Resistant Indoor dome housing with wall mount, rugged cast aluminum top
and polycarbonate clear dome.
RHW75C2NE IP Network Ready 7" Vandal-Resistant Outdoor dome housing with wall mount,
rugged cast aluminum top and polycarbonate clear dome, with 24VAC input,
heater/blower, for an IP Network PTZ camera, 120 to 24VAC transformer.
(European Model)
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5481 Instruction Manual.
www.videolarm.com
W81-IN5309
01-10-2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHW75 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Moog Videolarm RHW75 SERIES

  • Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved R H W 7 5 Vandal-Resistant Rugged (Outdoor Dome Housing) www.videolarm.com Installation and Operation Instructions for the following models: RHW75C2N IP Network Ready 7” Vandal-Resistant Outdoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome, with 24VAC input, heater/blower, for an IP Network PTZ camera, 120 to 24VAC transformer. RHP75C2N IP Network Ready 7” Vandal-Resistant Outdoor dome housing with pendent mount, rugged cast aluminum top and polycarbonate clear dome, with 24VAC input, heater/blower, for an IP Network PTZ camera, 120 to 24VAC transformer. IRHW75C2N IP Network Ready 7” Vandal-Resistant Indoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome. IRHP75C2N IP Network Ready 7” Vandal-Resistant Indoor dome housing with pendent mount, rugged cast aluminum top and polycarbonate clear dome.
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
  • Page 4: Electrical Specifications

    Electrical Specifications Contents of Box RHW75 Power 24VAC Class 2 Only 24 VAC 92 Watts Accessories: Heater: 50 Watts, Blower: 2 Watt Camera Power: (See Camera Specifications): 40 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 24 VAC 92 Vatios De Accesorios: Calentador: 50 Watts, Blower: 2 Vatio...
  • Page 5 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket conduit). Run wire into bracket secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
  • Page 6 WALL MOUNTING Important Gasket Must be in place 40 Watts 26 Watts COAX (coax wire not supplied) Wiring the dome can be completed by Align large arrows. referring to the diagram. • Atar con alambre la bóveda puede ser terminada •...
  • Page 7 FOR PENDENT/ WALL MOUNTING 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
  • Page 8 Important Gasket Must be in place Align large arrows. To lock turn clockwise. • Alinee las flechas grandes. • Alinee las flechas grandes. • Alignez les grandes flèches. • Alignez les grandes flèches. • Richten Sie große Pfeile aus. • Richten Sie große Pfeile aus. •...
  • Page 9 RJ45 24VAC POWER Camera Max 40 Watts Camera Orange Heater/Blower Yellow 26 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White Make the appropriate male and female connections. Indoor model does not include pre-run cables. •...
  • Page 10: Axis 233D

    Axis 233D Important information for the model of camera. English Due to the high 35x zoom feature of the Axis 233D camera, a slight focus issue may occur when the camera lens is fully extended within the Videolarm camera housing. For applications where the full 35x high-powered zoom is needed, please contact Videolarm to request a complimentary enhanced optically clear acrylic dome.
  • Page 11 PB24 Addendum Additional wires are provided to run power to PB24. Use with connector supplied. Run RJ45 connector through PB24, wall mount, and connect lead from housing. • Los alambres adicionales se proporcionan a la energía funcionada con a PB24. El uso con el conectador proveyó. Funcione con el conectador RJ45 con PB24, emparede el montaje, y conecte el plomo de la cubierta.
  • Page 12: Replacement Parts List

    Replacement Parts List RHW75 IRHW75 PART NUMBER DESCRIPTION RC7C CLEAR REPLACEMENT CAPSULE 1A RC7T TINTED REPLACEMENT CAPSULE RPRH752 LOWER TRIM RING RPRH7503 DOME CLAMPING RING RPNET02 NETWORK HGS POWER SUPPLY RPFD072 24V HEATER 5A RPFD072/12 12V HEATER (12VDC MODELS ONLY) RPFD080 BLOWER RP3510...
  • Page 13 © 2011, Moog Videolarm, Inc. All Rights Reserved www.videolarm.com C a m e r a M o u n t i n g I n s t r u c t i o n s W81-IN5481 01-19-2012...
  • Page 14 NOTE: For all RHP and RHW models a ½” (13mm) Für alles RHP und RHW modelliert eine ½“ spacer is added for additional height. (13mm) Distanzscheibe hinzugefügt für zusätzliche Höhe. Deutsch English Para todo el RHP y RHW modela un Para todo o RHP e RHW modela um espaciador del ½”...
  • Page 15 ARECONT: AV8185 / AV8365 / AV20185 / AV20365 • Mounting holes (4-#8 x ¾”) (75mm) 1” 2” AVIGILON: HD-Dome Series • Mounting holes (3-#8) (100mm) 1” 1” 2”...
  • Page 16 AXIS: 215 • Mounting holes (4-#8) (100mm) 1” 1” 2” AXIS: 233D • Mounting holes (4-#8) (25mm) 1” BASLER: BIP2-1000C-DN / BIP2-1300C-DN / BIP-D1000C-DN / BIP-D1300C-DN • Mounting holes (3-#8) (100mm) 1” 1” 2”...
  • Page 17 CANON: VB-C60 • Mounting holes (64mm) ½” 2” CANON: VB-M40 • Mounting holes (64mm) 2” ½” CANON: VB-C300 • Mounting holes (88mm) ½” 1” 2”...
  • Page 18 ELMO: PTC 400C • Mounting holes (4-#8) (100mm) ½” ½” 1” 2” JVC: VN-V686BU / VN-V685U • Mounting holes (3-#8) (38mm) ½” 1” PANASONIC: BB-HCM580/581 • Mounting holes (88mm) ½” 2” 1”...
  • Page 19 PANASONIC: WV-CS580 Series • Mounting holes (4-#8) (38mm) ½” 1” PANASONIC: SC386 • Mounting holes (4-#8) (25mm) 1” PANASONIC: WV-CS574 • Mounting holes (4-#8) (50mm) 2”...
  • Page 20 PANASONIC: WV-CS954 / WV-NS954 • Mounting holes (4-#8) (13mm) ½” PANASONIC: WV-NS202 / WV-SC385 / WV-SC384 • Mounting holes (4-#8) (75mm) 1” 2” PIXORD: P-463 • Mounting holes (3-#8) (25mm) 1”...
  • Page 21 SANYO: VCC-HD 5400 • Mounting holes (2-#8) (64mm) ½” 2” SONY: EP / ER Series (520 / 550 / 580) • Mounting holes (4-#8) (38mm) ½” 1” SONY: RX Series (RX530 / RX550 / RX570) • Mounting holes (4-M3)
  • Page 22: Sony: Snc-Rz25

    SONY: SNC RH/RS Series (RH124 / RS44 / RS46) • Mounting holes (4-#8) (25mm) 1” SONY: SNC-RZ25 • Mounting holes (2-M3) (13mm) ½” SONY: SNC-RZ50 • Mounting holes (2-M3) (50mm) 2”...
  • Page 23: Toshiba: Ik-Wb21A

    TOSHIBA: IK-WB16A • Mounting holes (88mm) ½” 2” 1” TOSHIBA: IK-WB21A • Mounting holes (4-#8) (75mm) 1” 2” VIDEO IQ: VIQ-CT / CID / CRD / HD-CRD • Mounting holes (4-M4x10) (75mm) 1” 2”...
  • Page 24: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
