installinG QuiCk RElEasE BRaCkEts

ELMO PTC-201

Mounting plate for this unit is included in the housing
packet. Remove existing mounting plate installed in
the unit before proceeding.

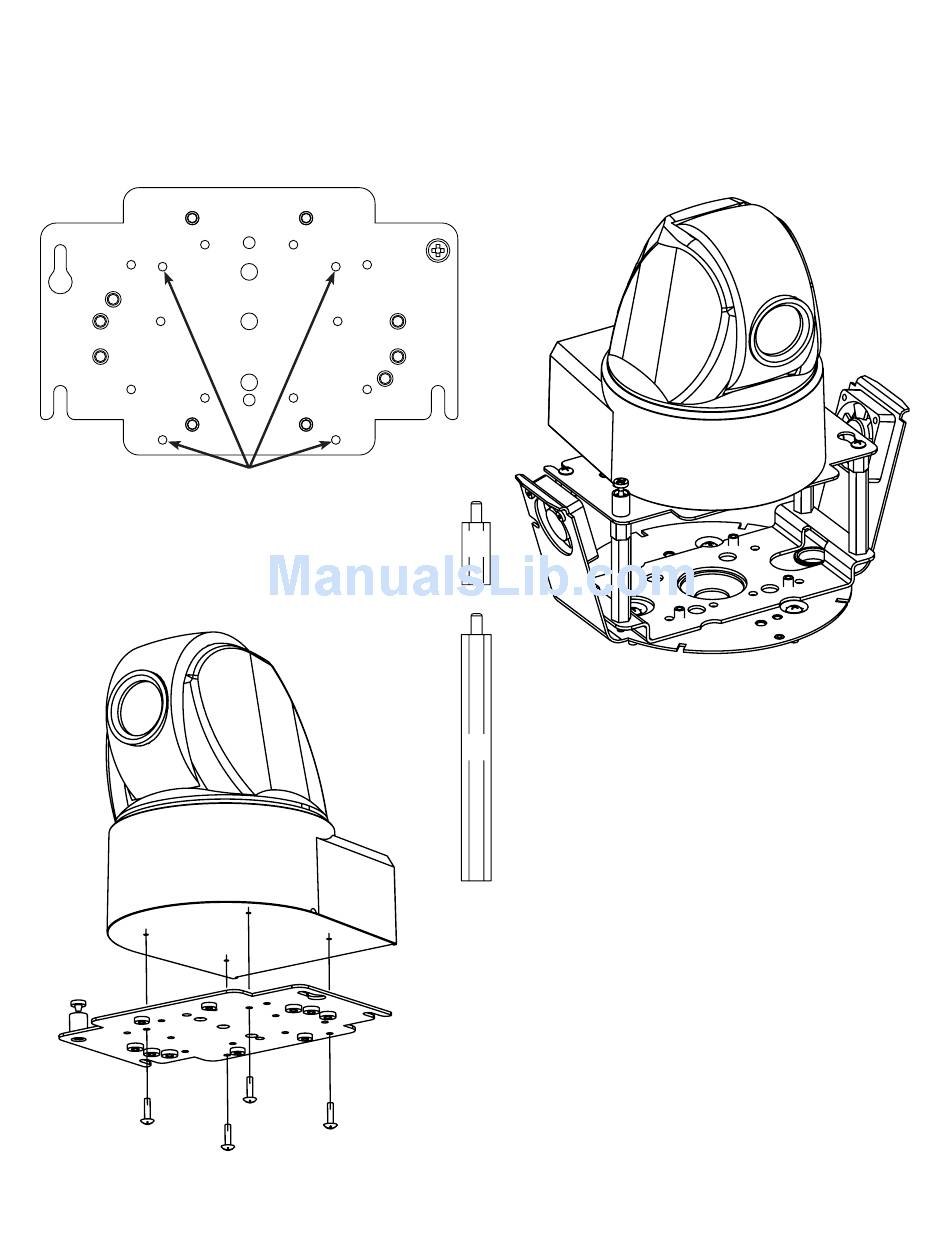

2539 Mounting Plate:
Attach camera using these (4) holes
1. Place the camera onto the quick release bracket using
the (4) metric 3M Phillips head screws provided with the
kit.
½"
2. The Elmo PTC-201 camera requires 2½" of spacing for
optimal position within the housing. Use (4) 2" spacer(s)
plus (4) ½" spacer(s) provided in the (2) hardware
2"
packets.
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
- 4 -
