installinG QuiCk RElEasE BRaCkEts

TOSHIBA IK-WB21A

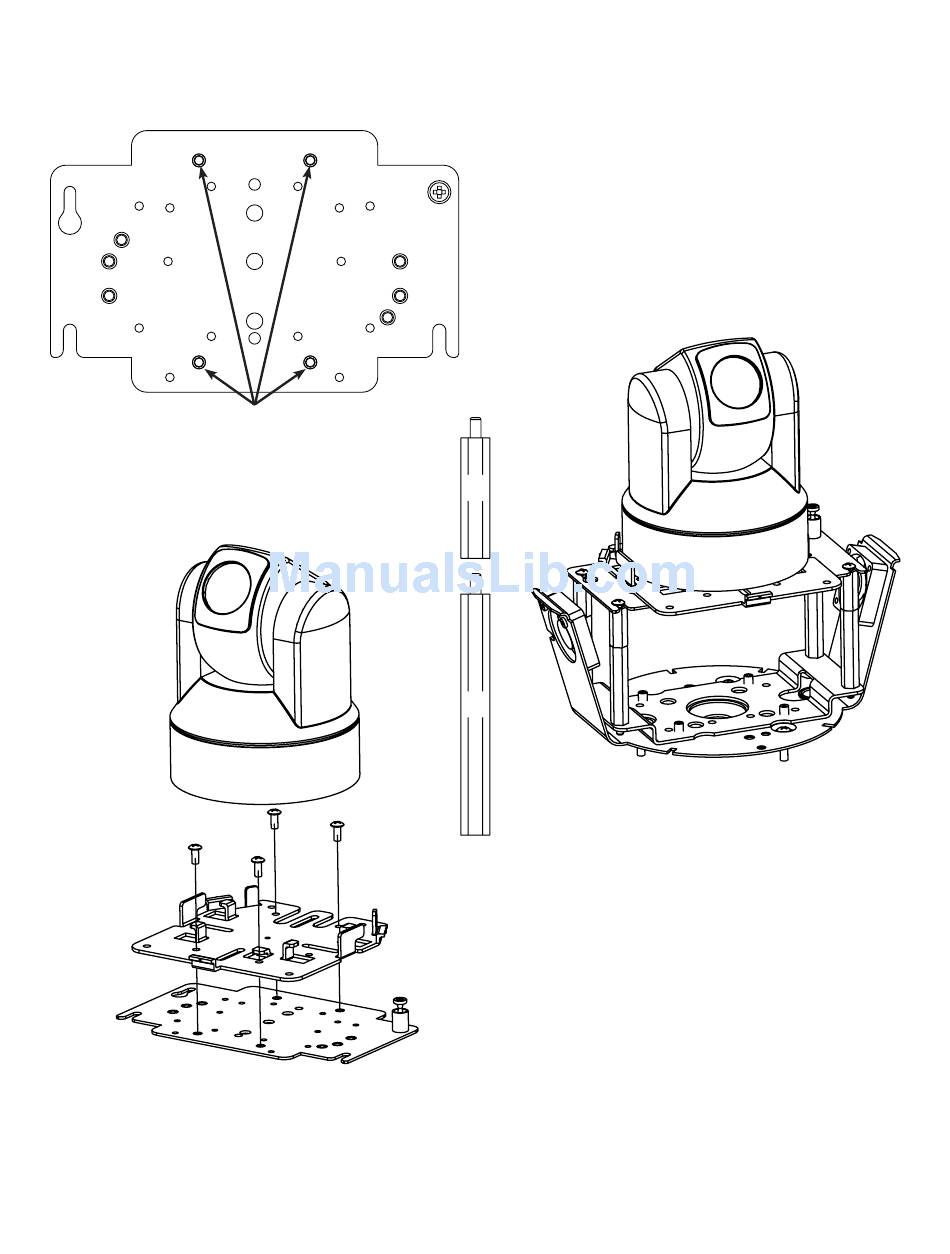

2539 Mounting Plate:
Attach camera using these (4) holes
1. Remove the quick release bracket from the camera.
Using (4) 8 x 32 x 3/8 bolts and star washers attach the
quick release place to the 2539 mounting plate.
1"
2"
2. The Toshiba 1K-WB21A requires 3" of spacing to properly
position the camera within the housing. Use (4) 2"
spacers plus (4) 1" spacers provided in the hardware
packets.
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
- 5 -
