installinG QuiCk RElEasE BRaCkEts

SONY SNCRZ50

2539 Mounting Plate:

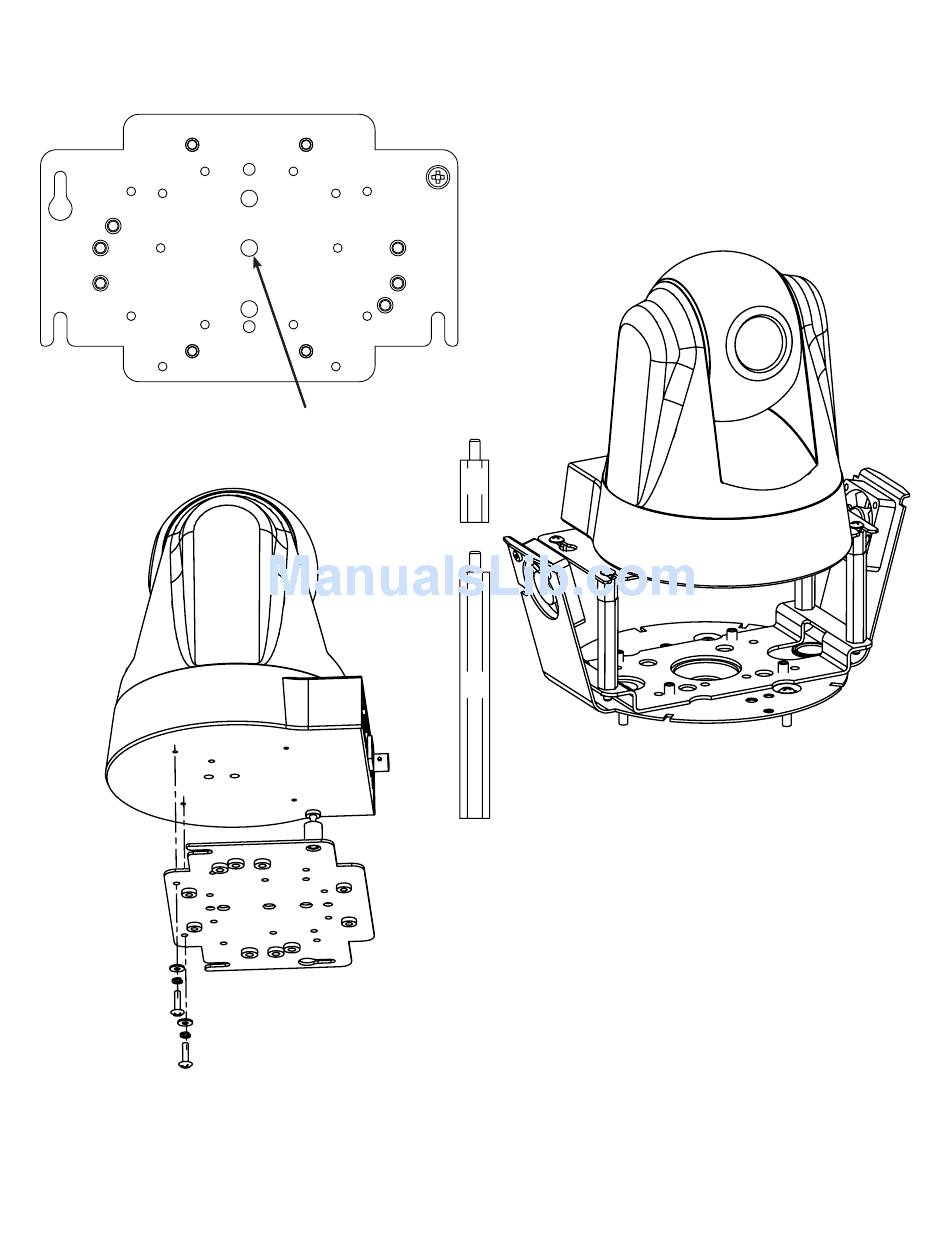

Attach camera using this hole
1. Attach the SNCRZ50 camera to 2539 mounting plate
using 3mm x 8mm bolt lockwashers provided.
½"
2"
2. The SONY SNCRZ50 require 2 ½ " of spacing to properly
position the camera within the housing. Use (4) 2"
spacers plus (4) ½ " spacers provided in the hardware
packet.
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
