installinG QuiCk RElEasE BRaCkEts

SONY SNCRZ30

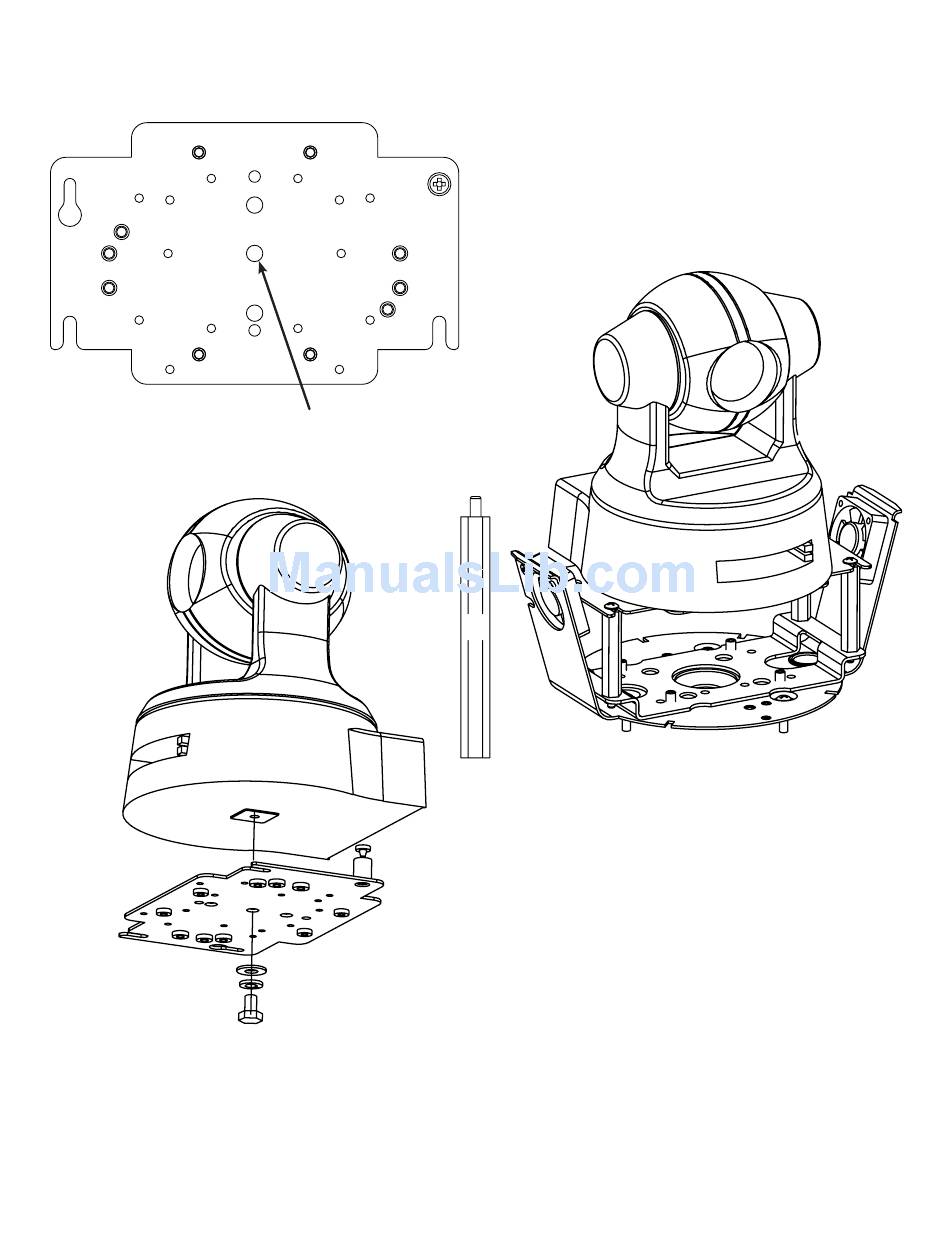

2539 Mounting Plate:
Attach camera using this hole
1. Attach the camera to the 2539 mounting plate using
the (1) ¼ x 20 bolt, washer and lockwasher provided.
2"
2. The SNCRZ30 require 2" of spacing to properly position
the camera within the housing. Use (4) 2" spacers
provided in the hardware packets.
3. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
4. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
- 3 -
