installinG QuiCk RElEasE BRaCkEts

ELMO PTC-200C

Mounting plate for this unit is included in the housing
packet. Remove existing mounting plate installed in the unit
before proceeding.

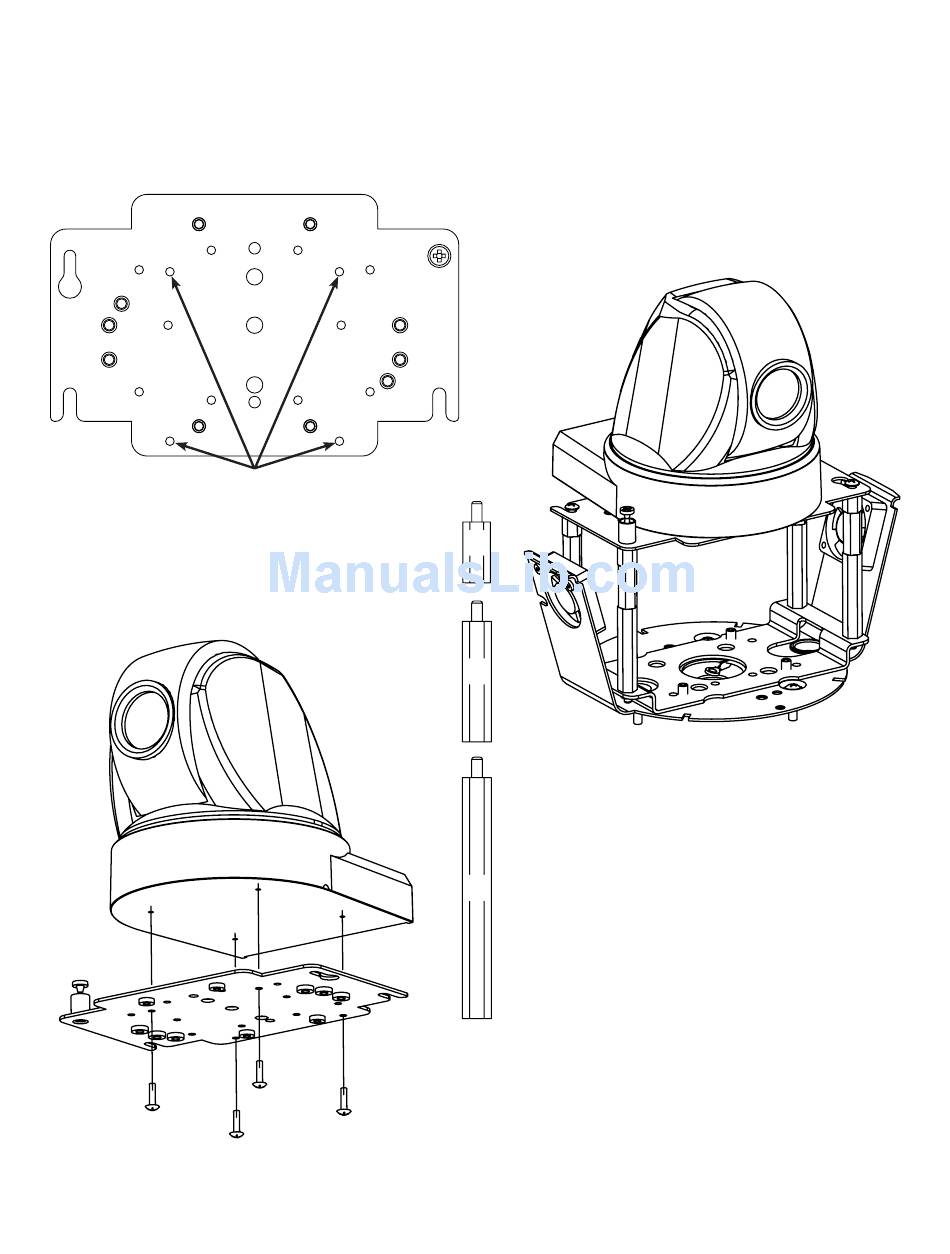

2539 Mounting Plate:
Attach camera using these (4) holes
1. Place the camera onto the quick release bracket using
the (4) metric 3M Phillips head screws provided with the
kit.
½"
1"
2. The Elmo PTC-200C camera requires 3.5" of spacing for
optimal position within the housing. Use (4) 2" spacer(s),
plus (4) 1" spacer(s) and (4) ½" spacer(s) provided in the
(2) hardware packets.
2"
- 3 -
