© 2011, Moog Videolarm, Inc. All Rights Reserved
F D W 7 C N - 3

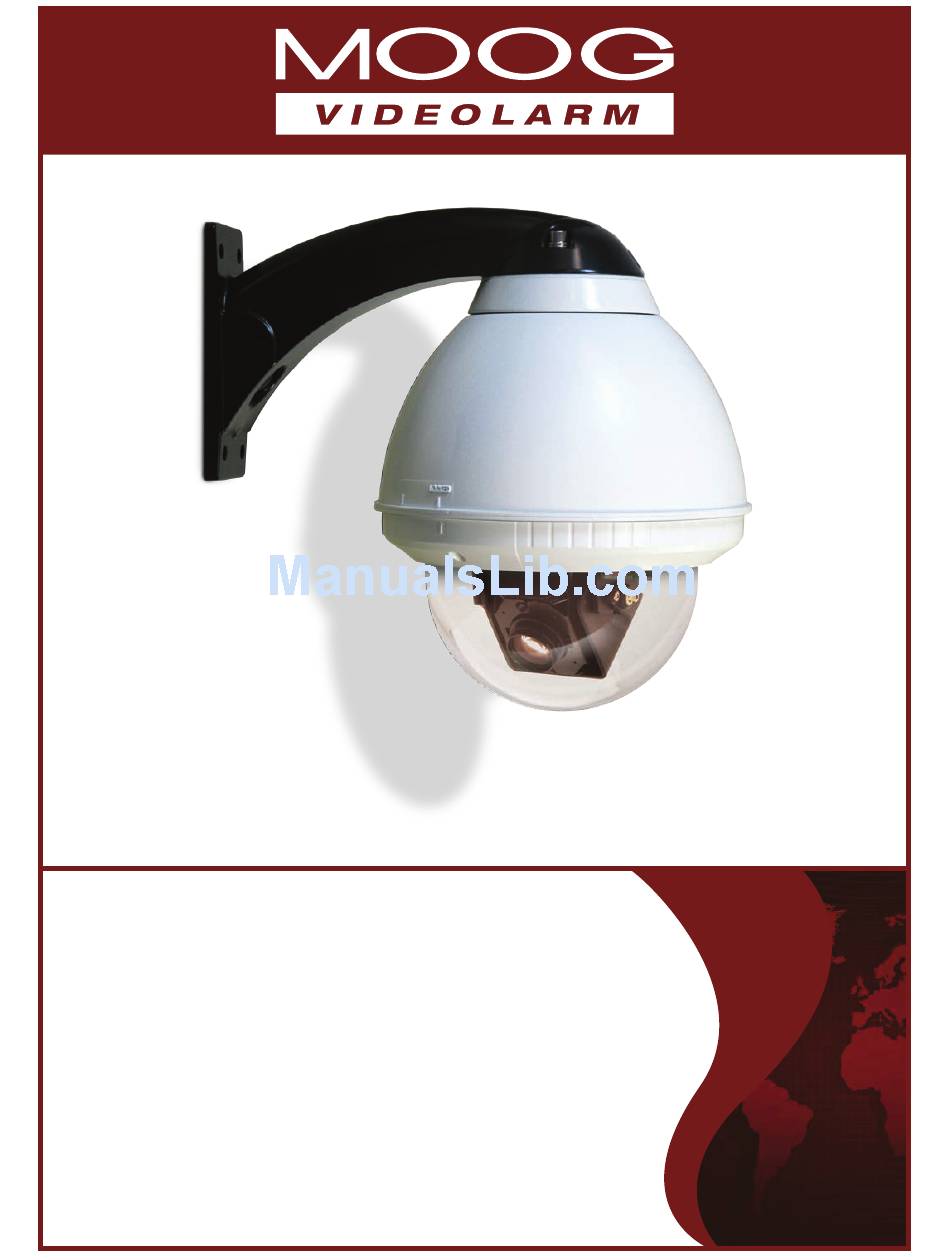

Outdoor / Indoor PTZ Fusion Dome Mount
Installation and Operation Instructions for the following models:
FDW7CN-3
IP Network Ready 7" Outdoor FusionDome PTZ Camera System with 23x
IFDW7CN-3
zoom Day/Night camera, wall mount, MPEG-4/ MJPEG video compression,
(Indoor)
full D1. Clear dome, with 24Vac input, heater/blower (Outdoor only)
FDP7CN-3
IP Network Ready 7" Outdoor FusionDome PTZ Camera System with 23x zoom
IFDP7CN-3
Day/Night camera, pendent mount, MPEG-4/ MJPEG video compression, full D1.
(Indoor)
Clear dome, with 24Vac input, heater/blower (Outdoor only)
(Analog Version) 7" Outdoor FusionDome PTZ Camera System with 23x zoom
FDW7CS-3
IFDW7TS-3
Day/Night camera, wall mount, MPEG-4/ MJPEG video compression, full D1.
(Indoor)
Clear dome, with 24Vac input, heater/blower (Outdoor only)
F DP7CS-3
(Analog Version) 7" Outdoor FusionDome PTZ Camera System with 23x zoom
IFDP7CS-3
Day/Night camera, pendent mount, MPEG-4/ MJPEG video compression, full
D1. Clear dome, with 24Vac input, heater/blower (Outdoor only)
(Indoor)
The unit is available in both tinted (T) and clear (C) Models
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5409 Instruction Manual.
www.videolarm.com
81-IN5357
01-23-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm FDW7CN-3 SERIES
Summary of Contents for Moog Videolarm FDW7CN-3 SERIES
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved F D W 7 C N - 3 Outdoor / Indoor PTZ Fusion Dome Mount www.videolarm.com Installation and Operation Instructions for the following models: FDW7CN-3 IP Network Ready 7” Outdoor FusionDome PTZ Camera System with 23x IFDW7CN-3 zoom Day/Night camera, wall mount, MPEG-4/ MJPEG video compression, (Indoor) full D1. Clear dome, with 24Vac input, heater/blower (Outdoor only) FDP7CN-3 IP Network Ready 7” Outdoor FusionDome PTZ Camera System with 23x zoom...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). - Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Speci Cations
Contents of Box Electrical Speci cations FDW7CN-3 FDW7CS-3 FDP7CN-3 Power 24VAC FDP7CS-3 Class 2 Only * IFDW7CN-3 * IFDP7CN-3 24 VAC 80 Watts Accessories: Heater: 50 Watts, Blower: 2 Watt Camera Power: (See Camera Speci cations): 28 Watts Max Tools Required: .100”... - Page 5 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket. conduit). Run wire into bracket, secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
- Page 6 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre. • Zu sich verriegeln, nach rechts drehen. •...
- Page 7 FOR PENDENT/ WALL MOUNTING 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
- Page 8 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Alignez les grandes flèches. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre.
- Page 9 NETWORK: RJ45 24VAC POWER Camera Max 28 Watts Camera Orange Heater/Blower Yellow 52 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray White Common Make the appropriate male and female connections. Indoor model does not include pre-run cables. •...
- Page 10 CAPTIVE SCREW Remove Pan/Tilt from shipping carton. To secure in place, tighten captive screw. Install in base bracket in housing. • Para asegurar en lugar, apriete el tornillo prisionero. • Quite Pan/Tilt del cartón del envío. Instale en soporte bajo en la cubierta. •...
- Page 11 Loop the lanyard around the tab inside the Wipe the dome clean. housing. • Limpie la bóveda limpia. • Coloque el acollador alrededor de la lengüeta dentro de la cubierta. • Essuyez le dôme. • Faites une boucle la lanière autour de l'étiquette à l'intérieur du logement.
-
Page 12: Replacement Parts List
Replacement Parts List FDW7CN-3 FDW75 PART NUMBER DESCRIPTION FD7C CLEAR REPLACEMENT CAPSULE 1A FD7T TINTED REPLACEMENT CAPSULE RPFD7501 LOWER TRIM RING RPFD703 DOME CLAMPING RING RPNET02 NETWORK HGS POWER SUPPLY RPFD072 24V HEATER 5A RPFD072/12 12V HEATER (12VDC MODELS ONLY) RPFD080 BLOWER RP3510... -
Page 13: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
