I R M 3 6 0 - I V
Vandal-Resistant Flush Housing
Installation and Operation Instructions for the following model:

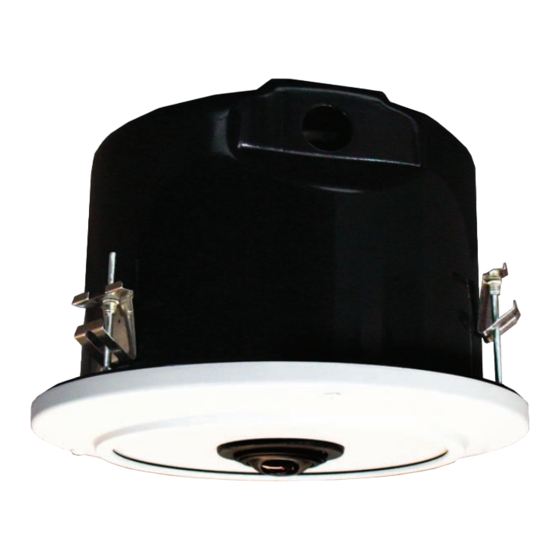

IRM360-IV A flush indoor fixed ceiling mount housing. The housing accommodates
an ImmerVision Panamorph lens and qualified box camera. The upper body
is constructed of a heavy 10-gauge aluminum and a white powder cast trim ring.
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5475
12-21-2011
Advertisement
Table of Contents
Related Manuals for Moog Videolarm IRM360-IV
Summary of Contents for Moog Videolarm IRM360-IV
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved I R M 3 6 0 - I V Vandal-Resistant Flush Housing www.videolarm.com Installation and Operation Instructions for the following model: IRM360-IV A flush indoor fixed ceiling mount housing. The housing accommodates an ImmerVision Panamorph lens and qualified box camera. The upper body is constructed of a heavy 10-gauge aluminum and a white powder cast trim ring. 81-IN5475 12-21-2011 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Contents of Box Electrical Specifications IRM360-IV Power 24VAC Class 2 Only English Energía 24VAC. Clase 2 solamente Español Puissance 24VAC. Classe 2 seulement Français Energie 24VAC. Kategorie 2 nur Deutsch Poder 24VAC. Classe 2 somente Portuguese Potere 24VAC. Codice categoria 2 soltanto... - Page 5 10.375” A box cutter or jigsaw can be used for Using the provided template, mark the cutting the circle. ceiling tile for the cutout. • Con la plantilla proporcionada, cortar el azulejo del • Un cortador o un rompecabezas de la caja se techo para el agujero.
- Page 6 Add the safety wire to the flex conduit or The alternate location to attach the safety continue to the next step. wire is on the housing secure tab. • La localización alterna para unir el alambre de seguridad • Agregue el alambre de seguridad al conducto de la está...
- Page 7 The beam angle may be adjusted on the Hook the lanyard from the dome to the The beam angle may be adjusted on the Adjust the ImmerVision lens as per lens manufacturing housing as shown. bottom of the unit. instructions. Insure that all set screws on lens are flush. bottom of the unit.
-
Page 9: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
