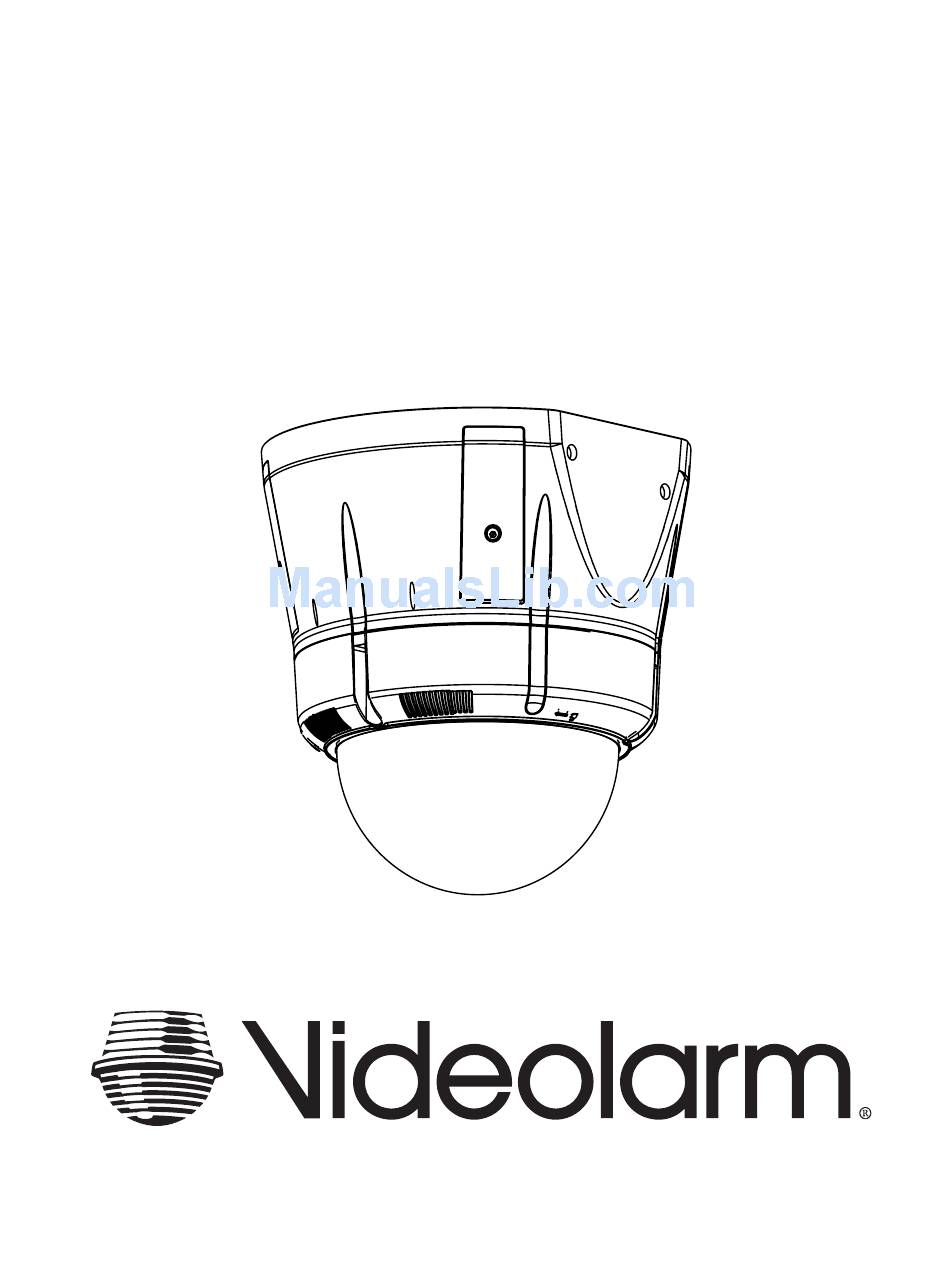

- Page 1 Product Instructions IP Ready Series ™ SM75CF2N, ISM75CFN Before attempting to connect or operate this product, please read these instructions completely. 81-IN5376 03/29/07 - -...
- Page 2 1. The shipping carton and packaging material. They are the safest material in which to make future shipments of the equipment. 2. These Installation and Operating Instructions. LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship, as follows: PRODUCT CATEGORY PARTS All Enclosures and Electronics Three (3) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Poles/PoleEvators Three (3) Years Warrior/Q-View/I.R. Illuminators...
-
Page 3: General Instructions
sM75C2n iP Ready network housing IP Ready Housing with 24Vac input, surface mounting, heater & blowers, ready for standard IP PTZ and fixed cameras. Outdoor model (SM75CF2N) includes: (1) 100Va, 24Vac transformers. ElECtRiCal sPECifiCations (outDooR onlY): Power 24Vac, Class 2 Only Total Power: 80 watts (max) Accessories (Heater/Blower): 52 watts Heater: 50 watts... -
Page 4: Wiring Color Code
Wiring Color Code Power and Control Inputs (Outside of housing) SM75CFN ONLY POWER Camera Power (24 VAC) Camera Power (24 VAC) Accessory Power (24 VAC) Accessory Power (24 VAC) Power Connections (Inside of housing) SM75CFN ONLY POWER AND CONTROL LEADS Power (12 vdc) Power (12 vdc) The outdoor unit is setup with (2) individual power inputs. -
Page 5: Installing The Housing Assembly
installinG thE housinG assEMBlY: Be sure the bracket is properly and securely mounted to a supporting structure capable of rigidly holding the weight of the entire unit. installinG Wall Mount (Wall Mount WMSM7 Sold Separately) ConnECtinG thE tRiM RinG assEMBlY to thE housinG toP: 1. - Page 6 Exploded View for Replacement Parts Wall Mount WMSM7 Sold Separately - -...
- Page 7 Exploded View for Replacement Parts (surface Mount) Replacement Parts list Part number RPSM7501 RPRH7502 RC7T RC7C RPRH7503 RPFD060 RPFD080 RPFD072 RPNET01 RPNET02 RPFD050 (Model SM7HB) RPRH706 (Model SM7FHB) RPRH707 (Model SM7NHB) RPSM7511 RPSM7512 RPSM7513 WMSM7 (Sold Separately) RPSM75040 RPPKH2090 RPPKH2071 RPPKE1100 RPPKE1125 Description...
