installinG QuiCk RElEasE BRaCkEts

AXIS 214

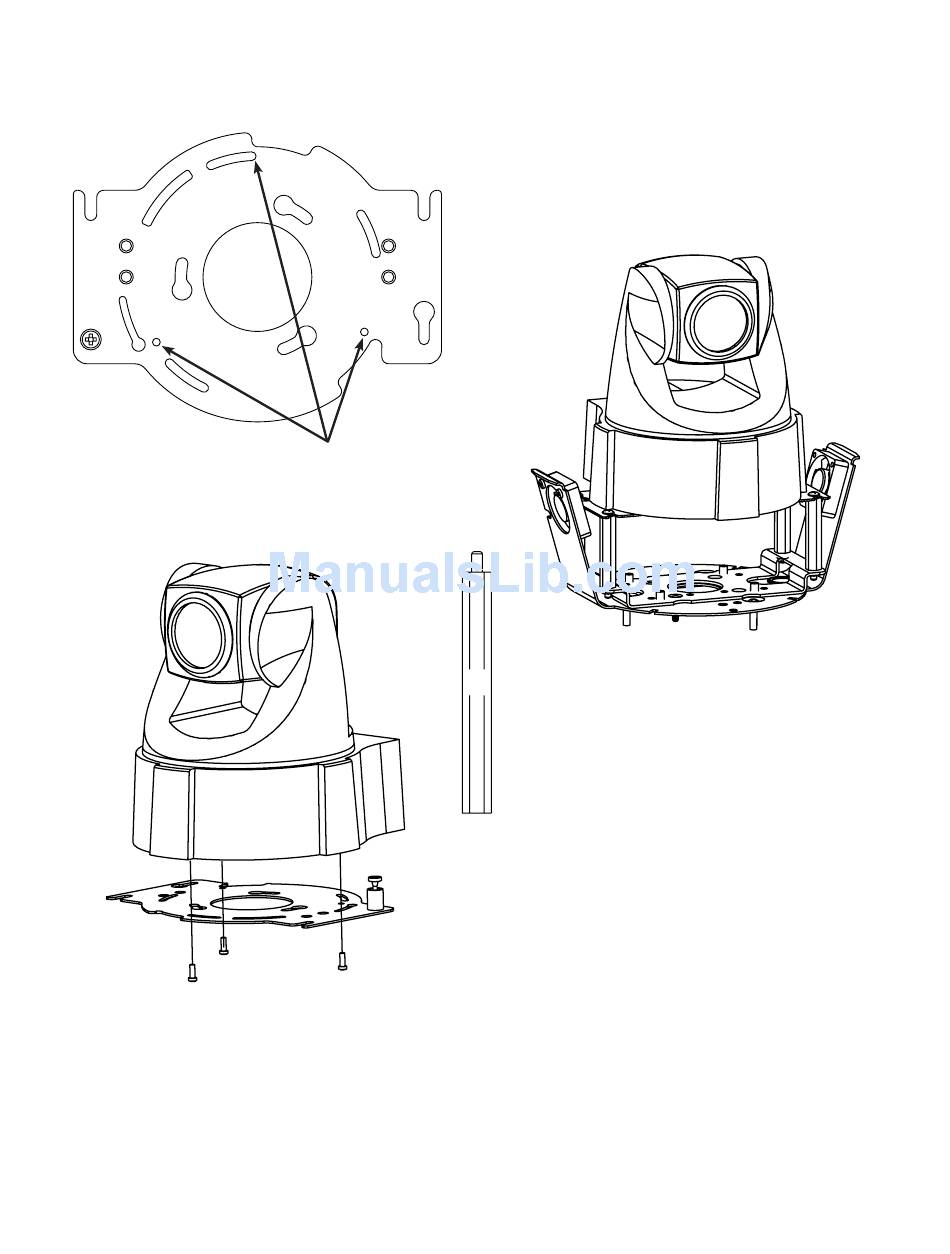

2685 Mounting Plate:

Attach camera using these (3) holes

1. Install the AXIS 214 camera to the 2685 mounting

plate using the (3) 3mm x 12mm bolt and lock washers

provided.

2. The AXIS 214 camera requires 2" of spacing for optimal

position within the housing. Use the 4 (2") spacers

provided in the packet.

3. Place (3) 8 x 32 x s Phillips head screws on the top

of the spacer as shown above. Be sure to place the

screws so that they line up with the open slots on the

mounting plate.

4. Slide the mounting plate with camera into position on

top of spacers. Secure 3 screws and captive fastener.

- 6 -
