Jvc Vn-C625U / Tk-625U - Moog Videolarm IP Ready IFDW75CN Product Instructions

installinG QuiCk RElEasE BRaCkEts

JVC VN-C625U / TK-625U

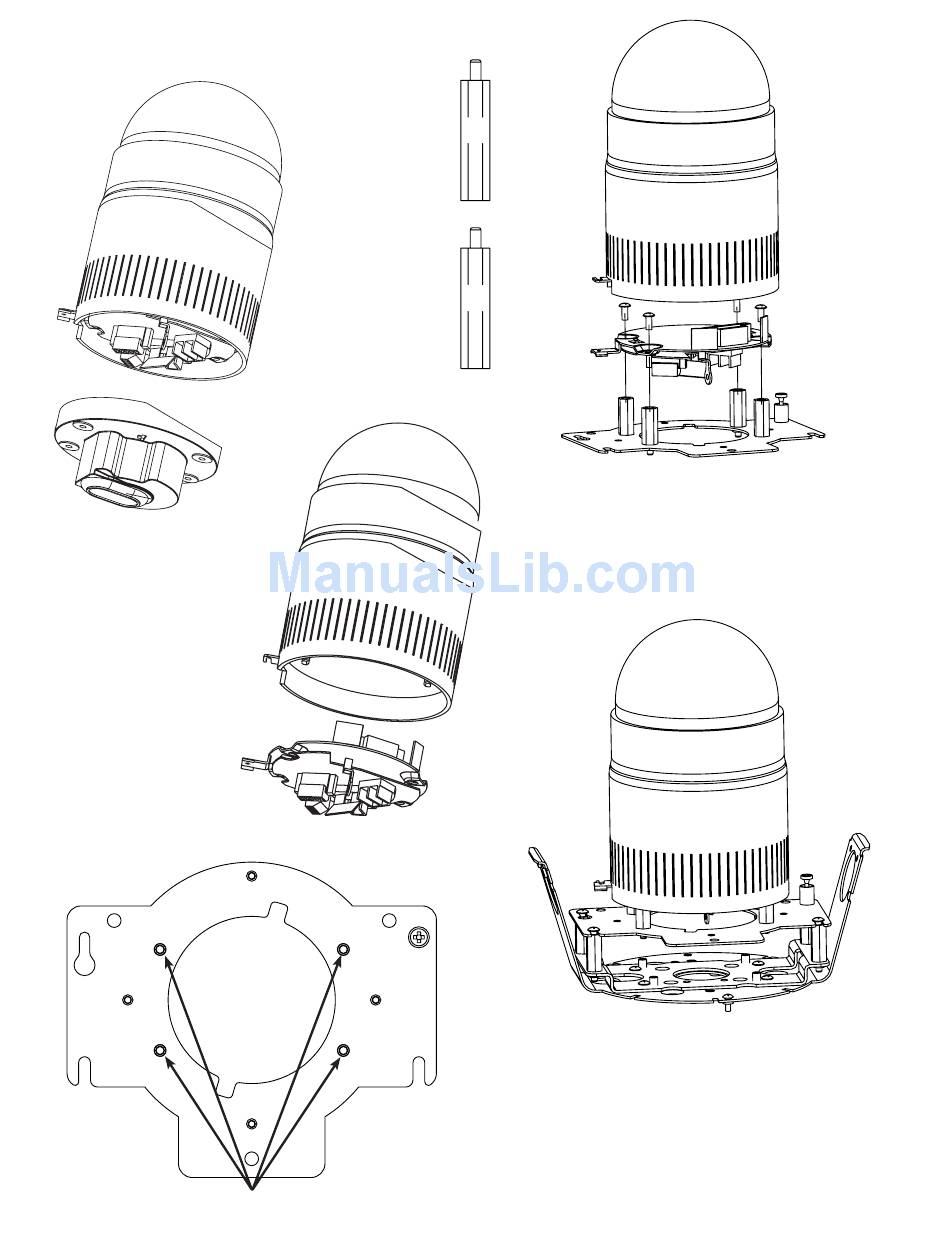

1. Remove plastic cover (1 screw).
2. Detach Q/R Bracket from camera.
2630 Mounting Plate:
Attach camera using these (4) holes
1"
1"
3. The JVC VN-C625U / TK-625U requires a total of 2" of
spacing to properly position the camera within the
housing.
4. Attach (4) 1" spacers to the 2630 mounting plate in the
position shown. Secure with (4) 6 x 32 x .5" screws and
lock washers.
5. Place (4) additional spacers on the main bracket as
shown in picture above.
6. Place (3) 8 x 32 x s Phillips head screws on the top
of the spacer as shown above. Be sure to place the
screws so that they line up with the open slots on the
mounting plate.
7. Slide the mounting plate with camera into position on
top of spacers. Secure 3 screws and captive fastener.
- 8 -
