N T K - S D - 3

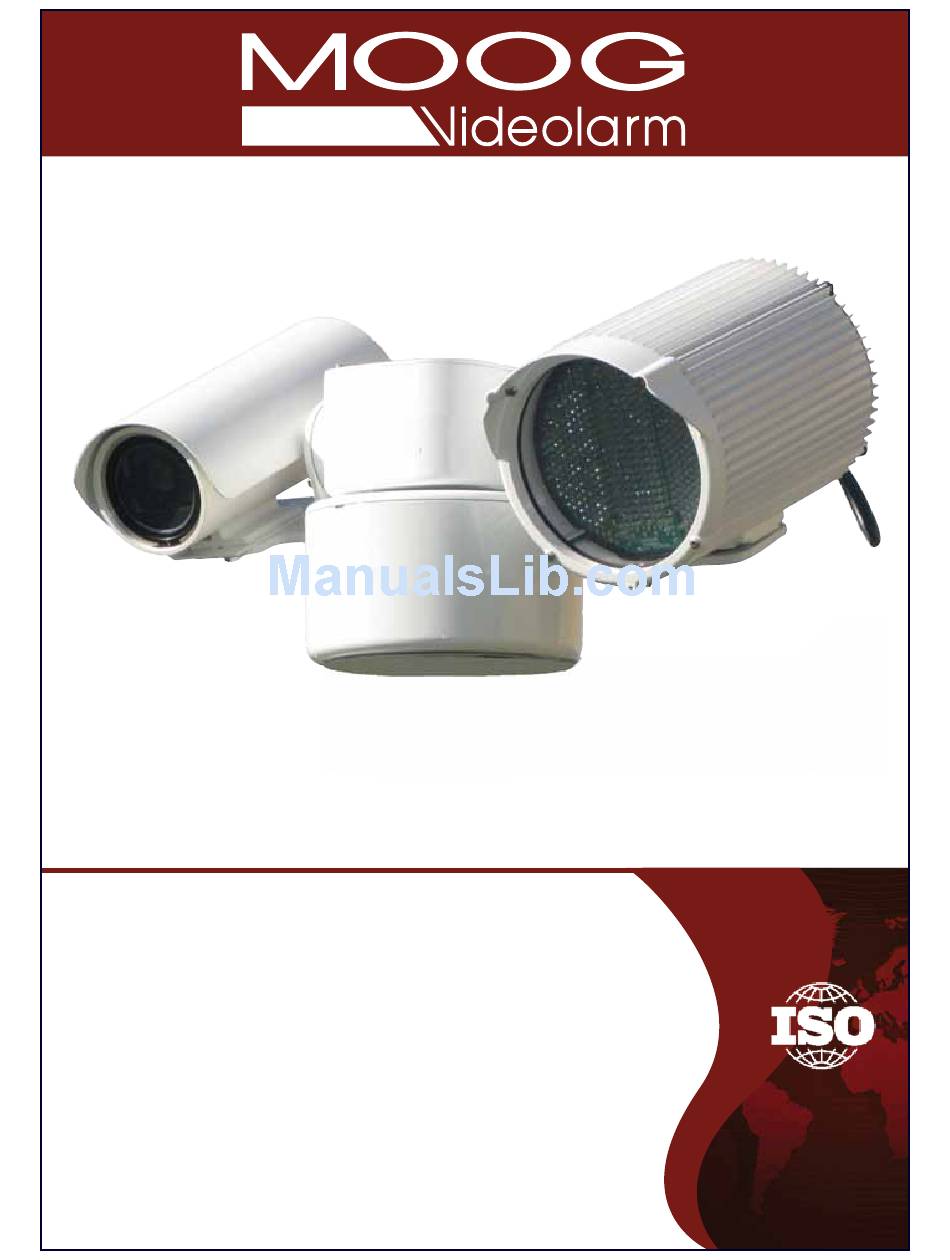

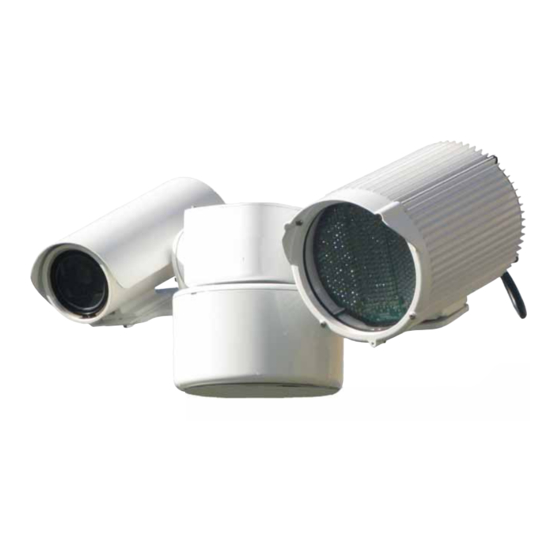

Intelligent Infrared Light and PTZ Outdoor Camera System
Installation and Operation Instructions for the following models:
NTK-SD-3
Analog night vision PTZ system, with IR illuminator that
automatically adjusts based on the camera's zoom level,
dust-proof camera housing with 36x Day and Night camera,
360 degree rotation, RS422 Pelco D&P protocols
NTK-SD-3N
Network (IP) version of NTK-SD-3
NT-SD-3
Analog PTZ system, dust-proof camera housing with 36x
Day and Night camera, 360 degree rotation, RS422 Pelco
D&P protocols
Before attempting to connect or operate this product, please read these
instructions completely. To be used with the 81-IN5409 Instruction Manual
www.videolarm.com
CERTIFIED
81-IN5447
09-27-2010
Advertisement
Table of Contents
Related Manuals for Moog Videolarm NT-SD-3
Summary of Contents for Moog Videolarm NT-SD-3
- Page 1 Intelligent Infrared Light and PTZ Outdoor Camera System Installation and Operation Instructions for the following models: NTK-SD-3 Analog night vision PTZ system, with IR illuminator that automatically adjusts based on the camera’s zoom level, dust-proof camera housing with 36x Day and Night camera, 360 degree rotation, RS422 Pelco D&P protocols NTK-SD-3N Network (IP) version of NTK-SD-3 NT-SD-3 Analog PTZ system, dust-proof camera housing with 36x Day and Night camera, 360 degree rotation, RS422 Pelco D&P protocols Before attempting to connect or operate this product, please read these instructions completely. To be used with the 81-IN5409 Instruction Manual www.videolarm.com CERTIFIED 81-IN5447 09-27-2010...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean only with damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Cable Runs- All cable runs must be within permissible distance. -
Page 3: Limited Warranty
1. NOTIFICATIONOF CLAIMS: WARRANTYSERVICE: If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Requereram: Chave de fenda Principal Phillips Da Chave de fenda Principal Lisa Do 100" Portuguese 24 VCA 90 W Di Attrezzi Massimi Hanno richiesto: Cacciavite Capo "phillips" Del Cacciavite Capo Piano Del 100" Italiano NTK-SD-3 NTK-SD-3N NT-SD-3 Contents of Box... - Page 5 Securely mount bracket to wall. Pull wiring through bracket and position grommet as shown. • Con seguridad soporte del montaje a emparedar. Tire del cableado a través del soporte y del ojal de la posición según lo demostrado. • Solidement parenthèse de bâti à murer. Tirez le câblage par la parenthèse et le canon isolant de position comme montré.
- Page 6 Make the appropriate male and female connections. • Haga las conexiones masculinas y femeninas apropiadas. • Établissez les rapports masculins et femelles appropriés. • Stellen Sie die passenden männlichen und weiblichen Beziehungen her. • Faça as conexões masculinas e fêmeas apropriadas. •...
- Page 7 The beam angle may be adjusted on the These are recommended maximum distances for 24VAC with a 10% voltage drop. bottom of the unit. • Éstos se recomiendan las distancias máximas para 24VAC con una gota del voltage del 10%. •...
-
Page 8: Display Menu
• Al usar el regulador de Videolarm; para incorporar el menú; seleccione la cámara fotográfica que usted desea contro- lar. • En utilisant le contrôleur de Videolarm ; pour écrire le menu ; choisissez l'appareil-photo que vous souhaitez commander. • Wenn Videolarm Steuerpult verwendet wird; das Menü... -
Page 9: Display / Position
Use the “Zoom In” botton to set calibration. Display will show OK. • Utilice el "zumbido en" botton para fijar la calibración. La exhibición demostrará MUY BIEN. • Employez l'"bourdonnement dans" le botton pour placer le calibrage. L'affichage montrera BIEN. •... -
Page 10: Other Features
1, 2, 3... Presets Press Preset 71 to stop recording (71,*, Preset 71, to start pattern. • Presione preestablecen 71 para parar el registrar (71, *, Preestablezca 71, para comenzar el patrón. • Serrez prérèglent 71 pour cesser d'enregistrer (71, *, Préréglez 71, pour commencer le modèle. -
Page 11: Control Setting
Click on “Controls” • Chasque encendido los “controles” • Cliquez sur dessus les « commandes » • Klicken Sie an „Kontrollen“ • Estale sobre “controles” • Scatti sopra “i comandi„ Control string buttons Click on “Ctrl panel”. You will see the control sting button. To use them just click on the desired one. -
Page 12: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Option 1: Take a few moments and validate your purchase with our Online Product Registration Form www.videolarm.com/productregistration.jsp or complete and mail-in the bottom portion of this flyer. Register your recent Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc… Main Contact Info First Name: Professional Title: Address 1: City: Zip / Postal Code: Product Information Name & Location of Company / Store where Purchased: (City, State, Country) Videolarm Product ID Serial # (Available only for Camera Systems, IR Illuminators, Wireless Devices) Mail-In Option 2: Place in envelope, affix stamp and mail to: Last Name: Company: Address 2:...
