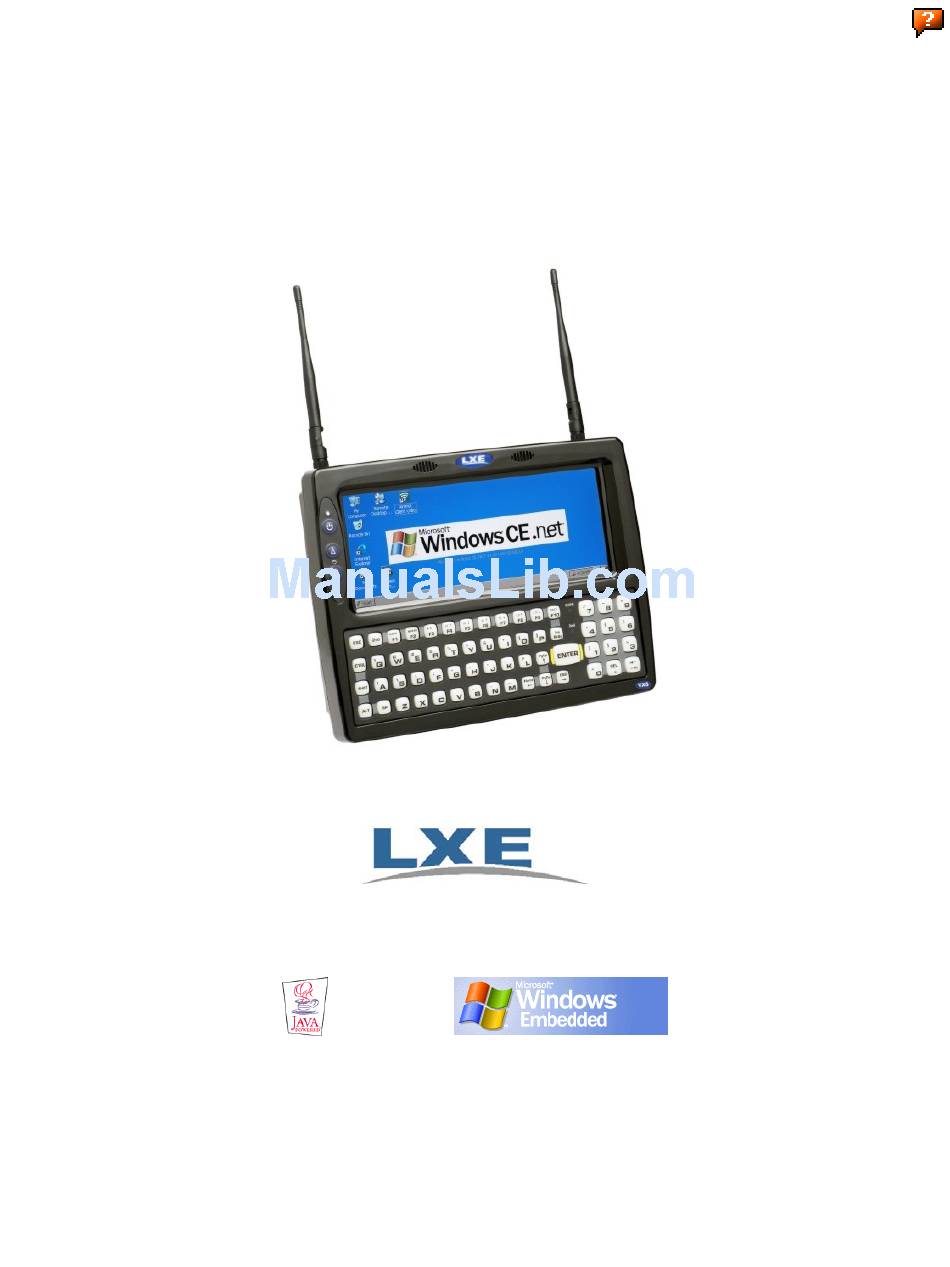

VX6 Reference Guide
Copyright © November 2007 by LXE Inc.
All Rights Reserved
E-EQ-VX6RG-F

Advertisement

Troubleshooting

   Related Manuals for Honeywell VX6

   Summary of Contents for Honeywell VX6

  • Page 1 VX6 Reference Guide Copyright © November 2007 by LXE Inc. All Rights Reserved E-EQ-VX6RG-F...
  • Page 2 Notices Notice: LXE Inc. reserves the right to make improvements or changes in the products described in this manual at any time without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information contained herein.
  • Page 3 Revision Notice VX6 Reference Guide Upgrade From Revision E to Revision F Section Explanation Entire Manual Added CE 5.0 information and instruction where applicable. Chapter 1 – Introduction Added Bluetooth information. Revised “Accessories” listing. Chapter 2 – Physical Description Added Bluetooth information.
  • Page 5: Table Of Contents

    Settings Tab | Bluetooth Options ..................15 Report when connection lost......................15 Report when reconnected....................... 15 Report failure to reconnect......................15 Computer is connectable........................ 15 Computer is discoverable....................... 15 Prompt if devices request to pair ....................15 Continuous search.......................... 16 E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 6 Table of Contents Subsequent Use........................16 Bluetooth Devices........................17 Bluetooth Barcode Reader Setup ..................18 Introduction............................ 18 VX6 with Label ..........................18 VX6 without Label ........................19 Bluetooth Beep and LED Indications .................... 20 Saving Changes to the Registry ................21 Getting Help......................22 Manuals and Accessories ..................
  • Page 7 Internal Antenna ........................49 The QWERTY Keyboard ..................50 IBM 3270 Overlay........................50 IBM 5252 Overlay........................50 Key Maps..........................51 Custom Key Maps ........................51 NumLock and the VX6......................51 Keyboard Backlight ........................51 Keyboard LEDs ........................52 CAPS LED ...........................52 Secondary Keys LED ......................53 Control Keys ........................54 General Windows CE Keyboard Shortcuts ................55...
  • Page 8 SD Card Slot ...........................65 Install an SD Card ........................65 Power Supply ......................66 External Power Supply ......................66 Specifications ........................67 Environmental Specifications ....................67 Vehicle 12-80VDC Direct Connection...................68 VX6 Input Power Specifications..................69 Power Adapter Cable ......................69 CMOS Battery ........................70 Fuse............................70 HAPTER YSTEM ONFIGURATION Introduction ......................
  • Page 9 Backlight ..........................98 Input Panel ..........................99 Internet Options ........................100 Windows CE .NET......................100 Windows CE 5.0.........................101 Keyboard..........................102 Mixer.............................103 Mouse ...........................104 Network and Dialup Connections..................104 Owner ...........................105 Password ..........................106 PC Connection ........................107 PCMCIA ..........................108 Power ............................109 Regional Settings ........................110 E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 10 Terminal Server Client Licenses ..................115 Volume and Sounds......................115 CF Flash Cards, CAB Files and Programs............116 Access Files on the Flash Card.....................116 Backup VX6 Files using ActiveSync ..............117 Prerequisites..........................117 VX6 and ActiveSync Partnership ..................117 Serial Port Transfer ......................117 USB Transfer........................118 Connect ..........................118...
  • Page 11 Table of Contents Reflash the VX6..................... 129 How To: Reflash using Keypress Method................129 How To: Reflash using TAG file Method ................130 Clearing Persistent Storage ................. 131 Disabling the Touchscreen .................. 131 Configuring NumLock Behavior ................131 Disabling the Touchscreen Heater ..............131 Configuring CapsLock Behavior .................
  • Page 12 Wireless Zero Config Utility and the Summit Radio ............184 Main Tab ..........................185 Admin Login..........................186 Profile Tab..........................187 Using the Scan Feature ........................ 188 Parameters............................ 189 Status Tab...........................192 Diags Tab ...........................193 Global Tab..........................194 Parameters............................ 194 Sign-On vs. Stored Credentials ....................199 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 13 Setting EAP/TLS Parameters....................... 241 Validating the Server Certificate....................243 WPA PSK Configuration ....................244 Symbol Radio ......................245 IP Information Tab .......................245 IPv6 Information Tab ......................245 Wireless Information Tab .....................246 View Log..........................246 Add a new connection ......................247 E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 14 Password..........................277 Status Panel...........................277 PPENDIX The VX6 Keypad ....................279 Key Map 101-Key Equivalencies................279 IBM 3270 Terminal Emulator Keypad ..............284 IBM 5250 Terminal Emulator Keypad ..............284 Creating Custom Key Maps for the VX6.............. 285 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 15 EFERENCE ATERIAL Introduction ......................309 AppLock Error Messages..................310 AppLock Registry Settings .................. 319 Valid VK Codes for CE..................320 ASCII Control Codes..................... 321 Hat Encoding......................323 Decimal - Hexadecimal Chart................325 Revision History....................327 NDEX E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 16 Figure 2-5 Pinout – Serial Cable........................37 Figure 2-6 Pinout – Screen Blanking Cable.......................38 Figure 2-7 Sample Cable for Screen Blanking ....................38 Figure 2-8 VX6 USB Connector and External USB Adapter Cable Connector..........39 Figure 2-9 VX6 Ethernet/USB Dongle Cables ....................40 Figure 2-10 D15 Female Connector........................41 Figure 2-11 Dongle Cable USB Host Port......................42...
  • Page 17 Table of Contents xiii Figure 2-43 Power Adapter Cable, VX1/2/4 to VX6..................69 Figure 2-44 Fuse Replacement ..........................70 Figure 3-1 Pocket CMD Prompt Screen ......................80 Figure 3-2 Taskbar Properties..........................82 Figure 3-3 About Properties, Software ......................85 Figure 3-4 About Properties, Versions ......................86 Figure 3-5 About Properties, Network IP ......................86...
  • Page 18 Figure 5-33 Cisco Profile Properties Screen....................220 Figure 5-34 Cisco Profile WEP Keys ......................221 Figure 5-35 No Cisco PEAP ..........................224 Figure 5-36 Cisco PEAP installed........................224 Figure 5-37 Cisco ACU Profile Selection......................226 Figure 5-38 Cisco ACU Reboot Message......................226 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 19 Figure 5-87 Certificate Services Welcome Screen ..................253 Figure 5-88 Request a Certificate Screen ......................254 Figure 5-89 Advanced Certificate Request Screen ..................254 Figure 5-90 Advanced Certificate Details .......................255 Figure 5-91 Script Warnings..........................256 Figure 5-92 Script Warnings..........................256 Figure 5-93 Certificate Issued..........................257 E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 20 Figure 6-5 Application Launch Options ......................273 Figure 6-6 Security Panel..........................276 Figure 6-7 Status Panel ............................277 Figure A-1 VX6 QWERTY Keyboard ......................279 Figure A-2 IBM 3270 Specific Keypad......................284 Figure A-3 IBM 5250 Specific Keypad......................284 Figure C-1 Decimal - Hexadecimal Chart (0 to 159 Decimal) ................325 Figure C-2 Decimal - Hexadecimal Chart (160 to 255 Decimal) ..............326...
  • Page 21: Chapter 1 Introduction

    Chapter 1 Introduction Overview The VX6 Vehicle Mount Computer (VMC) is a rugged, vehicle mounted, PC (Personal ® ® Computer) running a Microsoft Windows CE operating system and capable of wireless data communications from a fork-lift truck or any properly configured vehicle. The VX6 provides power and functionality in a vehicle mounted unit, with a wide range of options: ®...
  • Page 22: When To Use This Guide

    Use this guide as you would any other source book -- reading portions to learn about the VX6, and then referring to it when you need more information about a particular subject.
  • Page 23: Document Conventions

    Keyword that indicates a potentially hazardous situation, which, if not avoided, WARNING could result in death or serious injury. Keyword that indicates an imminent hazardous situation, which, if not avoided, DANGER will result in death or serious injury. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 24: Quick Start

    1. Install Vehicle Mounting Bracket on vehicle and secure VX6 in Mounting Bracket Assembly (see “VX6 User’s Guide”). 2. Connect power cable to the VX6. The power cable can also be connected to a UPS battery pack, which is then connected to the VX6 (see “VX6 User’s Guide”).
  • Page 25: Entering The Multi Applock Activation Key

    Tap the taskbar icon to place the popup menu on screen. Tap one of the application icons in the popup menu. The selected application is brought to the foreground while the other application continues to run in the background. Stylus taps affect the application running in the foreground only. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 26: Components

    Components Components Access Panel Cover (See Following Illustrations for Detail) Antenna Connectors or Hole Plugs Figure 1-1 VX6 Components, Top View 1. Speakers 2. Control Panel (See Following Illustrations for Detail) 3. 2nd Indicator 4. Caps Lock Indicator Figure 1-2 VX6 Components, Front View...
  • Page 27: Figure 1-3 Vx6 Components, Bottom View

    5. Fuse 6. Audio Connector 7. Power Cable Connector Figure 1-3 VX6 Components, Bottom View Note: COM1 is configured with Pin 9 +5V. COM3 is labeled “COM2/3” and is configured with Pin 9 RI. Please see Chapter 4, “Scanner”, for details on configuring Pin 9 of the serial ports.
  • Page 28: Figure 1-5 Vx6 Control Panel

    Components 1. Power LED 2. Power Switch 3. Brightness Increase 4. Brightness Decrease Figure 1-5 VX6 Control Panel 1. SD Memory Card Slot CF ATA PCMCIA A PCMCIA B 2. Compact Flash Hard Drive 3. PCMCIA Slots Figure 1-6 VX6 Access Panel Note: The tethered access panel cover is not shown in the illustration above.
  • Page 29: Data Entry

    The keyboard is used to manually input data that is not collected otherwise. Almost any function that a full sized computer keyboard can provide is duplicated on the VX6 keyboard but it may take a few more keystrokes to accomplish a keyed task.
  • Page 30: Touchscreen Entry

    (touch) of up to 4 oz. of pressure. The touchscreen can be used in conjunction with the keyboard and scanner and an input/output device connected to one of the VX6’s serial ports. • Touch the stylus to the field of the data entry form to receive the next data feed.
  • Page 31: Touchscreen And Mouse

    The mouse pointer reappears when the USB mouse is moved or clicked. • When a USB mouse is first attached to the VX6, the mouse pointer may not be visible. However, moving or clicking the mouse causes the pointer to appear.
  • Page 32: Setup The Radio And Network

    Command Bar. Upon a successful connection, you should see the host application screen displayed. To change options such as Display, Colors, Cursor, Barcode, etc., please refer to the “RFTerm Reference Guide” on the LXE Manuals CD. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 33: Activesync - Initial Setup

    COM port and baud rate. This will set up the VX6 to use the USB or designated COM port. Click OK and ensure the check box for “Allow connection with desktop computer when device is attached” is checked.
  • Page 34: Bluetooth

    3. Change the Computer Friendly Name at the bottom of the Settings display. The Bluetooth VX6 default name is determined by the LXE factory installed software version. LXE strongly urges assigning every VX6 a unique name (up to 32 characters) before Bluetooth Discovery is initiated.
  • Page 35: Settings Tab | Bluetooth Options

    These options can still be checked or unchecked whether Bluetooth connection is enabled or disabled. As Bluetooth devices pair with the VX6, the name of the device and an icon representing the type of device is displayed in the Devices window. The icon state changes as the paired Bluetooth devices connect and disconnect from the VX6.
  • Page 36: Continuous Search

    10. Whenever the VX6 is turned On, all previously paired, live, Bluetooth devices in the vicinity are paired, one at a time, with the VX6. If the devices cannot connect to the VX6 before the re-connect timeout time period expires (default is approximately 20 seconds for each paired device) there is no indication of the continuing disconnect state if Report Failure to Reconnect is disabled.
  • Page 37: Bluetooth Devices

    The Bluetooth taskbar Icon state and Bluetooth LED states change as Bluetooth devices are discovered, pair, connect and disconnect. There may be audible or visual signals as paired devices re-connect with the VX6. Only LXE printers or scanners are recognized and displayed in the Bluetooth panel. All other Bluetooth devices are ignored.
  • Page 38: Bluetooth Barcode Reader Setup

    1. Scan the Bluetooth address barcode label, attached to the VX6, with the LXE Bluetooth mobile scanner. 2. If this is the first time the Bluetooth scanner has scanned the VX6 Bluetooth label, the devices are paired. See section titled “Bluetooth Beep and LED Indications”. If the devices do not pair successfully, go to the next step.
  • Page 39: Vx6 Without Label

    Refer to the following section titled “Bluetooth Beep and LED Indications”. Note: After scanning the VX6 Bluetooth label, if there is no beep and no LED flash from the Bluetooth device, the devices are currently paired. VX6 without Label...
  • Page 40: Bluetooth Beep And Led Indications

    Upon startup, if the scanner sounds a long tone, this means the scanner has not passed its automatic Selftest and has entered isolation mode. If the scanner is reset, the sequence is repeated. Contact LXE Support for assistance. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 41: Saving Changes To The Registry

    Saving Changes to the Registry Saving Changes to the Registry The VX6 saves the registry when you: • Tap the Start | Run then type Warmboot. Tap OK. • Install Restart in the Start menu by Start | Run then type CTL RESTART=1 and tap the OK button.
  • Page 42: Getting Help

    Cable, Printer/PC, D9 to D25 (above part is not RoHS compliant) Cable, PC, D9 to D9 9000A054CBL6D9D9 Power Cables Cable, Input Power, 12 FT, VX5 VX6 VX7 9000A073CBLPWR12FT-R Adapter Cable, VX1 VX2 VX4 Power Cable to VX5 VX6 VX7 9000A077CBLPWRADPTR VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 43 Manuals and Accessories Power Supplies Power Supply, External, AC, W/US Power Cord VX5 VX6 VX7 9000A317PSACUS-R Power Supply, External, AC, No Power Cord VX5 VX6 VX7 9000A318PSACWW-R UPS Battery and Cables Battery, UPS Lead Acid, VX5 VX6 VX7 9000A378UPSBATTPACK-R Cable, UPS Battery, Remote Mount Extender, 6 Ft...
  • Page 44 (above part is not RoHS compliant) 8320A333SCNRX12D9FLT Scanner, Powerscan, XLR, Low Temp, 12’ Cbl (above part is not RoHS compliant) 8510A326SCNRFZYDA9F Scanner, LS3408 Fuzzy Logic SR, D9 Interface Cable, 8ft 8510A326SCNRFZYDA9F-R Scanner, LS3408 Extended Range, D9 Interface Cable, 8ft 520A326SCNRERDA9F-R VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 45 Single Slot Battery Charger w/International Power 8800A379CHGRBASE Universal Battery Charger, 4 slot. Requires 4 adapter cups 8200A501HOLSRBELT Scanner Holster for Belt Mounted take up Reel 8000A501INDREEL Auto Sense Intellistand, Hands Free Scanning 8500A505STANDSMT 9000A411SCNRSTRAP Strap with Scanner Clip E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 46 Manuals and Accessories VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 47: Chapter 2 Physical Description And Layout

    Platform 1 VX6 VX6’s identified as Platform 1 by a P1 notation on the serial number decal (and VX6’s with no platform identification on the serial number decal) are referred to as Platform 1 VX6’s. These VX6’s DO NOT support the features identified as “Platform 2” throughout this manual.
  • Page 48: Hardware Configuration

    Hardware Configuration Hardware Configuration System Hardware The VX6 hardware configuration is shown in the following figure. Compact Flash Any Type Hard I, II or III Drive Secure Digital PCMCIA Memory Card Card Antenna Connector Slot A Slot Slot & Slot B...
  • Page 49: Central Processing Unit

    The 64MB SDRAM option has been discontinued. Video Subsystem The LXE VX6 video subsystem consists of a color TFT display. The video subsystem complies with the VESA VL bus standard. The resolution of this display is 800 by 320 pixels. This resolution complies with the SVGA graphics industry standard.
  • Page 50: Power Supply

    Hardware Configuration Power Supply Vehicle power input for the VX6 is 12V to 80V DC nominal and is accepted without the need to perform any manual operation within the VX6. If 12V to 60V DC power is not available – for example, in an office environment – an optional external Universal Input Power Supply can be used to convert AC wall power to an appropriate DC level.
  • Page 51: Bluetooth Lxez Pairing

    Hardware Configuration Bluetooth LXEZ Pairing The VX6 contains Bluetooth version 2.0 with Enhanced Data Rate (EDR) up to 3.0 Mbit/s over the air. Bluetooth device connection (or pairing) can occur at distances up to 32.8 ft (10 meters) Line of Sight. The wireless client retains wireless connectivity while Bluetooth is active.
  • Page 52: Power Modes

    • Off Mode – The VX6 turns off if the user presses the power button when the VX6 is On. The VX6 is also off when it is not connected to a power source. However, an internal Real Time Clock (RTC) powered by an internal battery maintains the date and time while the VX6 is off.
  • Page 53: Physical Controls

    Physical Controls On/Off Switch The power (on/off) switch is a push button switch located on the front control panel of the VX6. The switch is a momentary switch. If the VX6 is Off, pressing the power switch turns the VX6 For Platform 2 VX6’s, the keyboard LEDs turn on for about one second when the operating...
  • Page 54: External Connectors

    Audio connects to a mono or stereo telephone headset/microphone. Other external connectors are located as follows: • Antenna connectors are located on the top of the VX6. VX6’s can be configured for a single antenna or dual antennas. VX6 Reference Guide...
  • Page 55: Scanner Serial Connector (com1)

    Please see “Technical Specifications – Screen Blanking Cable” in the following section for more details. Figure 2-3 Scanner Serial Connector (COM1) Note: Power the VX6 off before attaching a cable or device to the COM1 serial port. Pinout Signal Description Data Carrier Detect –...
  • Page 56: Printer/pc Serial Connector (com3)

    Chapter 4, “Scanner”, section titled “Serial Port Pin 9” for more information on configuring Pin Figure 2-4 Printer/PC Serial Connector (COM3) Note: Power the VX6 off before attaching a cable or device to the COM3 serial port. Pinout Signal Description Data Carrier Detect –...
  • Page 57: Technical Specifications - Connection Cable

    The VX6 serial port supports four types of handshaking via the LXE serial cable: None, standard Xon/Xoff, standard DTR/DSR, and a form of RTS/CTS. To use RTS/CTS, the remote side computer must clear the DTR line which sets the VX6 CTS line and allows the VX6 to send data to the remote side.
  • Page 58: Technical Specifications - Screen Blanking Cable

    (for example, via a switch on the accelerator pedal of the fork truck). All other pins on the connector must be left unconnected. If pins 7 and 8 do not provide continuity (or the cable is removed), the VX6 screen remains blank. Serial cable:...
  • Page 59: Ethernet/usb Connector

    USB Host port for connecting a USB device to the VX6 • a USB Client port to connect the VX6 to a USB host or hub. Note: Please refer to the diagrams later in this chapter for details on available ports with the dongle cable options.
  • Page 60: Ethernet/usb Dongle Cables

    Figure 2-9 VX6 Ethernet/USB Dongle Cables Note: Power the VX6 off before attaching a cable or device to the Ethernet/USB connector. The connectors and pinouts for the dongle cables are detailed below. 9000A075CBLUSBHCETH is required when using ActiveSync via USB on the VX6.
  • Page 61: D15 Female Connector

    USB-D D – RJ45_45 RJ45, Pins 4 and 5 Connections RJ45_78 RJ45, Pins 7 and 8 Connections 5V_USB_23 USB-H Power, Current Limited USB-D Power Return USB-D D + Transmit – Transmit + Shell CGND Chassis Ground E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 62: Usb Host Connector

    USB Power Return Shell CGND Chassis Ground USB Client Connector Figure 2-12 Dongle Cable USB Client Port Pinout Signal Description 5V_USB_23 USB Power, Current Limited USB2N_A USB D – USB2P_A USB D + DGND USB Power Return VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 63: Rj45 Connector

    External Connectors RJ45 Connector Figure 2-13 Dongle Cable Ethernet Port Pinout Signal Description Transmit + Transmit – Receive + – Not Connected – Not Connected Receive – – Not Connected – Not Connected E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 64: Audio Connector

    External Connectors Audio Connector The VX6 audio connector accepts a headset with a 2.5mm plug, such as a mono telephone headset with microphone or a stereo headset. Please refer to “Mixer” in Chapter 3, “System Configuration” for information on configuring the audio port for either a mono headset with microphone or a stereo headset.
  • Page 65: Power Supply Connector

    The VX6 internal power supply can accept DC input voltages in the range of 12 to 80 Volts. Figure 2-15 The Power Connector...
  • Page 66: Ups Battery Pack Connectors

    Not used Chassis Ground Not used DC Negative (–) Output Figure 2-17 The UPS Battery Pack Output Connector Pinout Signal DC Positive (+) UPS Battery Positive (+) Chassis Ground UPS Battery Negative (–) DC Negative (–) VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 67: Ups Battery Extension Cable Connectors

    Chassis Ground UPS Battery Negative (–) DC Negative (–) Output Figure 2-19 The UPS Battery Extension Cable Output Connector Pinout Signal DC Positive (+) UPS Battery Positive (+) Chassis Ground UPS Battery Negative (–) DC Negative (–) E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 68: Antenna Connections

    Spread Spectrum RF Antenna Connector Pin VX6’s ordered with an external antenna option have either one or two antenna connectors located on top of the unit. VX6’s ordered with the internal antenna option do not have an external antenna connector.
  • Page 69: Internal Antenna

    If the internal antenna option is ordered, an antenna is mounted on the inside of the user access panel cover. Figure 2-22 Internal Antenna Cables The internal antenna assembly has two antenna cables which are attached to the radio card. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 70: The Qwerty Keyboard

    The QWERTY Keyboard The QWERTY Keyboard The VX6 has a QWERTY keyboard, available with a standard overlay, an IBM 3270 overlay or an IBM 5250 overlay. These keyboards have 101 keyboard functions, including a numeric keypad. Please refer to Appendix A, “Key Maps”, for keypress combinations.
  • Page 71: Key Maps

    The keyboard supports all 101 keyboard functions. However, because the keyboard only has 60 keys, all functions are not visible (or printed on the keyboard). Therefore the VX6 keyboard supports what is called hidden keys -- keys that are accessible but not visible on the keyboard.
  • Page 72: Keyboard Leds

    The QWERTY Keyboard Keyboard LEDs The VX6 keyboard has two (2) LED indicators. CAPS 1. CapsLock Mode LED Indicator BKSP 2. Secondary Mode LED ENTER Indicator < Figure 2-26 Keyboard LEDs CAPS LED This LED indicates the state of the keyboard CapsLock mode. If CapsLock is enabled this LED is illuminated green.
  • Page 73: Secondary Keys Led

    The QWERTY Keyboard Secondary Keys LED The VX6 keyboard is equipped with several secondary keys. These keys are identified by the superscripted text found on the keyboard keys. The secondary keys are accessible by using two (2) keystrokes: the <2 >...
  • Page 74: Control Keys

    The QWERTY Keyboard Control Keys The VX6 keyboard has several control keys, some of which are not used on the VX6. Note: The 2 functions of the <F4> and <F5>keys are not used as the display brightness is adjusted via the buttons on the control panel.
  • Page 75: General Windows Ce Keyboard Shortcuts

    USB Keyboard/Mouse A standard USB mouse can be attached to the VX6 using the appropriate dongle cable. A standard USB keyboard can be attached to Platform 2 VX6’s using the appropriate dongle cable. The dongle cable attaches to the VX6 and provides a USB connector. Please refer to documentation provided with the USB keyboard and mouse for more information on their operation.
  • Page 76: Input Panel (virtual Keyboard)

    <Shift> and <áü> keys can be used in combination for capitalized international characters. Note: When the virtual keyboard is displayed, the physical keyboard is still active. Therefore it is possible to input data from both keyboards. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 77: Enabling The Input Panel

    The Input Panel is disabled by default. To enable the Input Panel, select Start | Settings | Control Panel | Input Panel icon. Make sure the “Allow applications to change the input panel state” checkbox is checked and warmboot the VX6. Figure 2-31 Input Panel Properties...
  • Page 78: The Display

    • Disabling the touchscreen. LXE offers a replaceable touchscreen protective film to protect the touchscreen when the VX6 is used in an abrasive environment. For information on installing or removing the protective film, please refer to the “VX6 User’s Guide”.
  • Page 79: Pcmcia, Cf And Sd Slots

    PCMCIA, CF and SD Slots The VX6 has two PCMCIA slots, one Compact Flash slot and one Secure Digital slot. The PCMCIA slots are stacked on top of each other and located on the right hand side of the opening.
  • Page 80: Pcmcia Pinout

    PCMCIA, CF and SD Slots PCMCIA Pinout Signal Signal 12V_RF_POWER -CDI -CE1 -CE2 n.c. or VS1# -IORD -IOWR RDY/-IREQ SLOT_VCC SLOT_VCC SLOT-VPP SLOT_VPP n.c. or VS2# RESET -WAIT -INPACK -REG BVD2/-SPKR BDV1/-STSCHG WP/A_-IOIS16 -CD2 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 81: Install Pcmcia Cards

    Install the 2.4GHz Type II PCMCIA Radio Caution The LXE Model VX6 Vehicle Mount Computer is specifically for use with LXE Model 6726, 6816 and 6830 2.4GHz Type II PCMCIA radios. Substitution of other PCMCIA radios will void the FCC, Industry Canada and other international radio certifications for the Model VX6 Vehicle Mount Computer and is strictly prohibited.
  • Page 82: Figure 2-34 Cisco Antenna Cable Connections

    Symbol 11Mb radio with single antenna – Connect antenna cable to Port A (left port), as shown below. • Symbol 11Mb radio with dual antennas – Connect antenna cables to both ports. Port A Port B Figure 2-35 Symbol 11Mb Antenna Cable Connections VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 83: Figure 2-36 Summit Antenna Cable Connections

    Re-connect the power cord/cable and turn the VX6 on. For VX6’s with a Summit radio, review RX Diversity and TX Diversity on the Global Settings tab of the Summit Client Utility to ensure these settings correspond to the VX6’s antenna configuration.
  • Page 84: Cf Card Slot

    The screws are a captive part of the cover and cannot be removed. Remove the card currently installed present in the CF slot and replace it with the new CF card. The replacement CF card must contain the operating system in order for the VX6 to operate.
  • Page 85: Sd Card Slot

    The slot accepts a Secure Digital (SD) memory card. The card in this slot can be hot swapped. Note: Although cards in the SD slot may be hot swapped, the VX6 is not environmentally sealed while the access panel cover is removed to hot swap cards.
  • Page 86: Power Supply

    AC to DC power input for the VX6 is delivered via an optional external power supply. See “External Power Supply”. Vehicle power input for the VX6 is 12V to 80V DC nominal and is accepted without the need to perform any manual operation within the VX6. See “Vehicle 12-80VDC Direct Connection”. An optional uninterruptible power supply (UPS) battery can be used with the vehicle DC power supply.
  • Page 87: Specifications

    UL1950 and IEC 950 Environmental Specifications The AC to DC adapter will withstand the following environmental characteristics: Feature Specification Operating Temperature see VX6 Environmental Specifications Storage Temperature see VX6 Environmental Specifications Humidity Operates in a relative humidity of: 5 – 95% (non-condensing)
  • Page 88: Vehicle 12-80vdc Direct Connection

    Note: Correct electrical polarity is required for safe and proper installation. Connecting the cable to the VX6 with the polarity reversed will cause the VX6’s fuse to be blown. See the following table for wire color-coding specifics. Wiring color codes for LXE supplied DC input power cabling:...
  • Page 89: Vx6 Input Power Specifications

    LXE offers an adapter cable (part no. 9000A077CBLPWRADPTR) to adapt certain VX1, VX2 or VX4 DC power supplies to the VX6. Please read and follow all cautions in the “VX6 User’s Guide” to determine if your present power supply can be used with the VX6.
  • Page 90: Cmos Battery

    Fuse The VX6 uses a 100V, 10A time delay (slow blow), high current interrupting rating fuse that is externally accessible and user replaceable. Should it need replacement, replace with same size, rating and type of fuse – Littlefuse 0234010 or Optifuse MSC-10A (5x20mm).
  • Page 91: Chapter 3 System Configuration

    Chapter 3 System Configuration Introduction There are several different aspects to the setup and configuration of the VX6. Many of the setup and configuration settings are dependent upon the optional features such as hardware and software installed on the unit. The examples found in this chapter are to be used as examples only, the configuration of your specific VX6 computer may vary.
  • Page 92: Installed Software

    Installed Software Installed Software When you order a VX6 you receive the software files required by the separate programs needed for operation and radio communication. The files are loaded by LXE and stored in subdirectories in the VX6. This section lists the contents of the subdirectories and the general function of the files. Files installed in each VX6 are specific to the intended function of the VX6.
  • Page 93: Java (optional)

    Related Manual: “Using Wavelink Avalanche on LXE Windows Computers”. The VX6 has the Avalanche Enabler installation files loaded, but not installed, on the mobile device when it is shipped from LXE. The installation files are located in the System folder on CE devices.
  • Page 94 Avalanche Enabler functions. Please contact an LXE representative for details on upgrading the mobile device baseline. If the user is NOT using Wavelink Avalanche to manage their mobile device, the Enabler should not be installed on the mobile device(s). VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 95: Desktop

    Windows on-line Help application installed in the mobile device. The VX6 Desktop appearance is similar to that of a desktop PC running Windows 2000 or XP. At a minimum, it has the following icons that can be double tapped with the stylus to access My Computer, Internet Explorer, and the Recycle Bin.
  • Page 96: My Computer Folders (windows Ce .net)

    Data saved by running applications My Documents Storage for downloaded files / applications Network Mounted network drive Program Files Applications System Internal SD Flash Card (CAB file storage) Temp Location for temporary files Windows Operating System in Secure Storage VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 97: Start Menu Program Options

    (Please see Chapter 5, “Wireless Network Configuration” for details) Communication Stores Network communication options ActiveSync Transfer files between a VX6 and a desktop computer Connect Run this command after setting up a connection Start FTP Server Begin connection to FTP server...
  • Page 98: Communication

    ActiveSync Once a relationship (partnership) has been established with Connect, ActiveSync will synchronize using the radio link on the VX6. See also: Chapter 1 “Introduction”, section “ActiveSync – Initial Setup”. ActiveSync version 3.7 (or higher) must be resident on the host (desktop/laptop) Requirement: computer.
  • Page 99: Connect

    Start FTP Server / Stop FTP Server These shortcuts call the Services Manager to start and stop the FTP server. The server defaults to Off (for security) unless it is explicitly turned on from the menu. The COM3 port is labeled “COM2/3”. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 100: Command Prompt

    Inbox as it relates to the general desktop Windows PC Microsoft Outlook Inbox options. Click the “?” button to access Inbox Help. ActiveSync can be used to transfer messages between the VX6 inbox and a desktop inbox. Internet Explorer...
  • Page 101: Remote Desktop Connection

    Experience tabs. Click the “?” button to access Remote Desktop Connection Help. Note: VX6 and Custom Key Maps: before connecting to a host using Remote Desktop Connection, go to Start | Settings | Control Panel | Keyboard and select Preload or 0409 (depending on system software revision) from the keymap popup.
  • Page 102: Taskbar

    Tap the checkbox to have the Control Panel folders appear in drop down menu format from the Settings | Control Panel menu option. Clear Contents of Document Folder Tap the Clear button to remove the contents of the Document folder. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 103: Control Panel Options

    Up Options Owner Set VX6 owner details. Password Set VX6 access password properties. PC Connection Control the connection between the VX6 and a local desktop or laptop computer. PCMCIA Manage PCMCIA cards. Power Displays the status of all power managed devices.
  • Page 104: About

    User application version information can be shown in the Version window. Version window information is taken from the registry. Modify the Registry using the Registry Editor (see section titled “VX6 Utilities”). LXE recommends when editing the Registry and also recommends making a backup copy of caution the registry before changes are made.
  • Page 105: Language And Fonts

    • Korean The above listed Asian fonts are ordered separately and built-in to the VX6 OS image. Built-in fonts are added to registry entries and are available immediately upon startup. Thai, Hebrew, Arabic and Cyrillic Russian fonts are available in the (English only) default (extended) fonts.
  • Page 106: Identifying Software Versions

    The “Versions” tab displays the versions of many of the software programs installed. Not all installed software installed on the VX6 is included in this list and the list varies depending on the applications loaded on the VX6. The LXE Image line displays the revision of the system software installed.
  • Page 107: Accessibility

    Figure 3-6 Accessibility Properties, Keyboard Note: The StickyKeys option SHOULD NOT be used on the VX6. It does not work for the integrated VX6 keyboard. If the ToggleKeys option is selected, please note that Scroll Lock key does not produce a sound as the CapsLock and NumLock keys do.
  • Page 108: Administrator Control

    AppLock also contains a component which sets configuration parameters as specified by the Administrator. To set the AppLock parameters, please see Chapter 6, “AppLock” for details. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 109: Bluetooth

    The Bluetooth device should be as close as possible (line of sight) to the mobile device during the pairing process. The System Administrator has Discovered and Paired targeted Bluetooth Assumption: devices for the VX6. The VX6 operating system has been upgraded to the revision level required for Bluetooth client operation. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 110: Discover

    Tap the Discover button to locate all discoverable Bluetooth devices in the vicinity. Discovery process also queries for the unique identifier for each device discovered. Figure 3-9 Discover Bluetooth Devices Tap Stop at any time to end the Discover and Query for Unique Identifier functions. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 111: Bluetooth Devices

    An icon with a red background indicates the device Bluetooth connection is inactive. An icon with a white background indicates the device is connected to the VX6 and the device Bluetooth connection is active. Doubletap a device in the list to open the device properties menu. The targeted device does not need to be active.
  • Page 112: Bluetooth Device Properties

    Control Panel Options Figure 3-11 Bluetooth Device Disconnect / Delete Tap Pair as Scanner to set up the VX6 to receive data from the scanner. Tap Pair as Printer to set up the VX6 to send data to the printer.
  • Page 113: Settings

    E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 114: About

    Control Panel Options Option Default Information Computer is Enabled Disable this option to inhibit VX6 connection with all connectable Bluetooth devices. Computer is Disabled Enable this option to ensure other devices can discover the discoverable VX6. Prompt if devices Disabled When enabled, a dialog box is placed on the display.
  • Page 115: Easy Pairing And Auto-reconnect

    Discover button. It can auto-reconnect to devices previously known but which have gone out of and then returned within range. Pairing supports SPP devices only. Up to two Bluetooth devices can be connected to the VX6 at a time; LXE supports one scanner and one printer (see Accessories).
  • Page 116: Certificates

    Start | Settings | Control Panel | Certificates Manage digital certificates used for secure communication. Lists the Stored certificates trusted by the VX6 user. These values may change based on the type of radio security resident in the client, access point or the host system.
  • Page 117: Dialing

    Control Panel Options Dialing Access: Start | Settings | Control Panel | Dialing Figure 3-16 Dialing Set dialup properties for internal modems (not supplied/supported by LXE). Tap the “?” and follow the instructions in Help. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 118: Display

    Note: The display can also be configured to turn off when the vehicle to which the VX6 is mounted is in motion. This feature required a serial cable connection and is enabled using the Scanner control panel.
  • Page 119: Input Panel

    Use this option to make the Soft Keyboard or the keypad primarily available when entering data. Selecting Keyboard enables both. The Input Panel is disabled by default. To enable the input panel, make sure the checkbox for “Allow applications to change input panel state” is checked and warmboot the VX6. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 120: Internet Options

    Play web sounds Enabled Enable web scripting Enabled Display script error note Disabled Underline links Never Select a tab. Adjust the settings and click the OK box to save the changes. The changes take effect immediately. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 121: Windows Ce 5.0

    All options enabled Security All options enabled Popups Block popups Disabled Display notification Enabled Use same window Disabled Select a tab. Adjust the settings and click the OK box to save the changes. The changes take effect immediately. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 122: Keyboard

    OK box to save the changes. The changes take effect immediately. When new key maps are added to the registry, they will appear in the Key Map dropdown list on the Keyboard Panel. These values do not affect virtual keyboard taps. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 123: Mixer

    • Bluetooth – Reserved for future use. When checked, (enabled) Input Boost provides increased sensitivity of the microphone by 20 dB. Input Boost can only be enabled after an Input type other than None is selected. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 124: Mouse

    Start | Settings | Control Panel | Network and Dialup Connections Create a dialup, direct, or VPN connection on the VX6. To configure the VX6 to use DHCP or a fixed IP address, select the desired connection. The default is to obtain an IP address via DHCP.
  • Page 125: Owner

    Control Panel Options Owner Access: Start | Settings | Control Panel | Owner Icon Set VX6 owner details. Factory Default Settings Identification Blank Notes Blank There is no change from general desktop PC Owner Properties display. Enter the information and click the OK box to save the changes.
  • Page 126: Password

    Control Panel Options Password Access: Start | Settings | Control Panel | Password Icon Set VX6 access/power up password properties. Factory Default Settings Password Blank At Power On Disabled Note: Once a password is assigned, the Owner and Password Control Panel options require the password to be entered before the Control Panel option can be accessed.
  • Page 127: Pc Connection

    Automatic Connect. This option applies to USB connection only. If this checkbox is checked, when the USB cable is connected, the VX6 will automatically try to start ActiveSync over the USB port. Note that this interferes with processes on the configured port at the same time.
  • Page 128: Pcmcia

    Figure 3-24 PCMCIA Control Tab, Slot 0 and Slot 1 The Slot 2 Tab provides information on the internal Compact Flash ATA drive. There are no user configurable options. Figure 3-25 Compact Flash ATA Control Tab, Slot 2 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 129: Power

    User Idle, System Idle or Suspend modes. For a VX6, the User Idle state turns off the display backlight. There is no System Idle mode so the VX6 remains in User Idle mode until the Suspend timer expires or a primary even occurs.
  • Page 130: Regional Settings

    Start | Settings | Control Panel | Remove Programs No change from general desktop Remove Programs options. Select a program and click Remove. Follow the prompts on the screen to uninstall user-installed only programs. The change takes effect immediately. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 131: Scanner

    Advanced partition features LXE recommends when formatting or dismounting storage devices and when creating caution new partitions or deleting partitions on the storage device. The internal ATA (System) card does not appear in the Storage Manager menu. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 132: Stylus

    Double Tap Follow the instructions on the screen and click the OK box to save the changes. The changes take effect immediately. Calibration Figure 3-27 Stylus Properties / Recalibration Start Figure 3-28 Stylus Properties / Recalibration VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 133: System

    64 MB may only report 35 MB memory, since 29 MB is used up by the Windows CE operating system. This is actual DRAM memory, and does not include internal flash or the internal ATA card used for storage. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 134: Memory

    Move the slider to allocate more memory for programs or storage. If there isn’t enough space for a file, increase the amount of storage memory. If the VX6 is running slowly, try increasing the amount of program memory. Adjust the settings and click the OK box to save the changes. The changes take effect immediately.
  • Page 135: Terminal Server Client Licenses

    Middle of Bar Key click Loud Screen tap Loud Sounds Scheme LOUD! Follow the instructions on the screen and click the OK box to save the changes. The changes take effect immediately. Figure 3-32 Volume and Sounds E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 136: Cf Flash Cards, Cab Files And Programs

    LXE_VX3C_ENABLER.CAB Wavelink Avalanche Enabler. RFTERM.CAB RFTerm terminal emulation application. JAVA.CAB Java application. APPLOCK.CAB AppLock program. See Chapter 6 “AppLock”. Note: Always perform a warm reset (Start / Run / Warmboot) when exchanging one flash card for another. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 137: Backup Vx6 Files Using Activesync

    If the VX6 is connected to a PC by a RS-232 or USB cable, disconnect the cable from the VX6 and reconnect.
  • Page 138: Usb Transfer

    From the ActiveSync Dialog on the Desktop PC, click on the Explore button, which allows you to explore the VX6 from the PC side, with some limitations. You can copy files to or from the VX6 by drag-and-drop. You will not be allowed to delete files or copy files out of the \Windows directory on the VX6.
  • Page 139: Disconnect

    An ActiveSync partnership between a unique client can be established to two hosts. If the VX6 is cold booted, the random number is deleted – and the partnership with the last one of the two hosts is also deleted. The host retains the random numbers and unique names of all devices having a partnership with it.
  • Page 140: Troubleshooting

    ActiveSync indicator on the host turns green and spins, but connection never occurs Baud rate of connection is not supported or detected by host. Try forcing ActiveSync on the desktop PC to use a specific baud rate and set the VX6 to use the same baud rate. -or- Incorrect or broken data lines in cable.
  • Page 141: Create A Communication Option

    Backup VX6 Files using ActiveSync Create a Communication Option 1. On the VX6, select Start | Settings | Control Panel | Network and Dialup Connections. A window is displayed showing the existing connections. 2. Assuming the one you want does not exist, double-click Make New Connection.
  • Page 142: Technical Specifications - Connection Cable

    Backup VX6 Files using ActiveSync Technical Specifications – Connection Cable The exact serial cable is crucial. Many commercial null modem cables will not work. LXE recommends the following cable: Serial cable: 9000A054CBL6D9D9 Pinout: DB9 female DB9 female 6, 8 6, 8 no connection Figure 3-33 Pinout –...
  • Page 143: Vx6 Utilities

    The default value of 0 means the slot is not powered on. The default values for the default radio drivers (listed below) is 1, meaning one second elapses between the CAB file loading and the slot powering up. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 144 Registry information is already in the default image for the following: ; these keys load the appropriate radio driver [HKEY_LOCAL_MACHINE\SOFTWARE\LXE\Persist\Summit Radio] "FileName"="\SYSTEM\SUMMIT.CAB" "Installed"=dword:1 "FileCheck"="\WINDOWS\SDCCFG10G.DLL" "Order"=dword:02 "Delay"=dword:0 "PCMCIA"=dword:1 [HKEY_LOCAL_MACHINE\SOFTWARE\LXE\Persist\Cisco Radio] "FileName"="\SYSTEM\CISCO.CAB" "Installed"=dword:0 "FileCheck"="\WINDOWS\CISCO.DLL" "Order"=dword:02 "Delay"=dword:0 "PCMCIA"=dword:1 [HKEY_LOCAL_MACHINE\SOFTWARE\LXE\Persist\Symbol Radio] "FileName"="\SYSTEM\SYMBOL.CAB" "Installed"=dword:0 "FileCheck"="\WINDOWS\NICTT.EXE" "Order"=dword:02 "Delay"=dword:0 "PCMCIA"=dword:1 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 145 VX6 Utilities ; this key loads the RFID driver (N/A to VX6) [HKEY_LOCAL_MACHINE\SOFTWARE\LXE\Persist\RFID] "FileName"="\WINDOWS\RFID.CAB" "FileCheck"="\WINDOWS\RFID_WDG.DLL" "Order"=dword:12 ; this key installs RFTERM from the CAB file [HKEY_LOCAL_MACHINE\SOFTWARE\LXE\Persist\LXE TE] "FileName"="\SYSTEM\RFTERM.CAB" "Installed"=dword:0 "FileCheck"="\WINDOWS\LXE\RFTERM.EXE" "Order"=dword:10 "Delay"=dword:0 ; this key runs RFTERM as a startup app [HKEY_LOCAL_MACHINE\SOFTWARE\LXE\Persist\RFTERM] "FileName"="\WINDOWS\LXE\RFTERM.EXE"...
  • Page 146: Launch.exe And Persistent Storage

    "PCMCIA"=dword:0 "Installed"=dword:0 Registry entries may vary depending on software revision level and options ordered with the VX6. LAUNCH.EXE and Persistent Storage If any of the following directories are created in the \SYSTEM folder, Launch automatically copies all of the files in these directories to the respective folder on the flash drive: •...
  • Page 147: Regedit.exe

    The REG.TXT file is not saved in persistent storage. To use the REG.TXT file as a reference in the even of a coldboot, LXE recommends copying the file to the \SYSTEM directory on the VX6 or storing a copy of the file on a PC. WARMBOOT.EXE Double click this file to warm boot the computer (i.e., all RAM is preserved).
  • Page 148: Api Calls

    See Also: LXE CE API Programming Guide E-SW-WINAPIPG The LXE CE API Programming Guide documents only the LXE-specific API calls for the VX6. It is intended as an addition to the standard Microsoft Windows CE API documentation. Details of many of the calls in the LXE guide may be found in Microsoft’s documentation.
  • Page 149: Reflash The Vx6

    “Loading OS Image”. Reboot and press and hold the <A> key again. 9. The VX6 automatically reboots after flashing the bootloader. “Loading OS Image” is displayed on the screen and when the new OS finishes loading, all software upgrades are complete 10.
  • Page 150: How To: Reflash Using Tag File Method

    When this file is encountered, the VX6 loads a new bootloader image (eboot.nb0) into the boot flash. The tag file is deleted and the VX6 is rebooted to begin using the new boot loader. If there is no .nb0 file it does not re-flash and deletes the REFLASH.TAG.
  • Page 151: Clearing Persistent Storage

    NumLock is enabled. Disabling the Touchscreen Heater The touchscreen heater can only be disabled on Platform 2 VX6’s. For more information on identifying the platform version of your VX6, please see “Identifying your VX6” in Chapter 2, “Physical Description and Layout”.
  • Page 152: Configuring Capslock Behavior

    CapsLock is disabled. Configuring IPv6 The ability to disable IPv6 is only present on VX6’s with software revision 1ED or greater. For more information on identifying the software version of your VX6, please see “Identifying your VX6” in Chapter 2, “Physical Description and Layout”.
  • Page 153: Enabling Grabtime

    VX6, please see “Identifying your VX6” in Chapter 2, “Physical Description and Layout”. The VX6 has a GrabTime utility which can automatically synchronize the VX6 with a time server (via an Internet connection or a local time server) at boot up.
  • Page 154: Network Configuration

    Please refer Chapter 5, “Wireless Network Configuration” for information on configuring the Summit, Cisco or Symbol radio. Ethernet Connector When the VX6 is networked using the Ethernet connector, the VX6’s networking options are set via the Microsoft Windows CE Control Panel. For more information on configuring the Microsoft Windows CE network settings, please refer to the Windows CE Help feature or commercially available Windows networking literature.
  • Page 155: Wavelink Avalanche Enabler Configuration

    • Warm boot the mobile device. Because the VX6 has two possible network adapters (the internal adapter for a cabled network connection and the wireless network card), the Enabler uses the first network adapter it discovers. In order to assure the Enabler uses the wireless connection, perform one of the following actions: •...
  • Page 156: Stop The Enabler Service

    If a Mobile Device Server is found, the Enabler will automatically attempt to apply all wireless and network settings from the active profile. The Enabler will also automatically download and process all available packages. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 157: Mobile Device Wireless And Network Settings

    Avalanche Network Profile”. 6. Click the OK button to save the changes. 7. Reboot the device. The designation of the mobile device to the Avalanche CE Manager is LXE_VXC. See Also: “Using Wavelink Avalanche on LXE Windows Computers”. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 158: Enabler Configuration

    The Settings option under the File menu allows the user to access the control panel to locally configure the Enabler settings. The Enabler control panel is, by default, password protected. The default password is system. The password is not case-sensitive. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 159: Avalanche Update Settings

    Unavailable in this release. LXE recommends using AppLock, which is resident on each Windows mobile device. Server Contact Setup synchronization, scheduled Mobile Device Server contact, suspend and reboot settings. Startup/Shutdown Set options for Enabler program startup or shutdown. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 160: Connection

    Indicates whether the Enabler should first check for serial port connection to Connection the Mobile Device Server before checking for a wireless connection to the Mobile Device Server. Disable Disable ActiveSync connection with the Mobile Device Server. ActiveSync VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 161: Execution

    Center Console can be run automatically following each boot. Select Auto-Execute App The drop-down box provides a list of applications that have been installed by the Avalanche Mobility Center Console. Delay before execution Time delay before launching Auto-Execute application. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 162: Server Contact

    If the time interval for periodic contact with the Mobile Device Server occurs, a mobile device that is in Suspend Mode can ‘wakeup’ and process updates. Reboot mobile device before attempting to contact Mobile Reboot before attempt Device Server. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 163: Startup/shutdown

    Program Shutdown (Continue or The system administrator can control whether the Stop monitoring) Enabler continues to monitor the Mobile Device Server for updates once the Enabler application is exited. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 164: Scan Config

    Half screen, Hidden or Full screen. Default is Half screen. On connect As is, Half screen, full screen, Locked full screen. Default is As is. Normal Half screen, Hidden or As is. Default is As is. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 165: Shortcuts

    Configure shortcuts to other applications on the mobile device. Shortcuts are viewed and activated in the Programs panel. This limits the user’s access to certain applications when the Enabler is controlling the mobile device display. LXE recommends using LXE AppLock for this function. See Chapter 6 “AppLock” for instruction. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 166: Adapters

    Places the Avalanche icon in the Avalanche taskbar that may, optionally, override the standard Windows taskbar. Use Avalanche Network The Enabler will apply all network settings sent to it by the Profile Avalanche Mobility Center Console. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 167: Figure 3-43 Avalanche Network Profile Displayed

    Selecting the Properties icon displays the Manual Settings Properties dialog applet. From here, the user can configure Network, DNS and Wireless parameters using the displays shown below: Note: A reboot may be required after enabling or disabling these options. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 168: Figure 3-44 Manual Settings Properties Panels

    Wavelink Avalanche Enabler Configuration Network Wireless Figure 3-44 Manual Settings Properties Panels VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 169: Status

    Figure 3-45 Status Display Link speed indicates the speed at which the signal is being sent from the adapter to the mobile device. Speed is dependent on signal strength. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 170 Wavelink Avalanche Enabler Configuration VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 171: Chapter 4 Scanner

    Control Characters None assigned Scanner control panel options may vary with software revision level. To identify the software revision, please click on the “About” icon in the Windows CE Control Panel. The COM3 port is labeled “COM2/3”. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 172 LXE 8300 Tethered Scanners and Symbology Settings (AIM ID) – Before manipulating data received from an 8300 series scanner, and symbology settings are desired, the user must configure and append the Symbology ID as a prefix. See the documentation provided with the scanner for details. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 173: Main

    APIs (“block mode”). If two or more applications are reading the data in Block mode, ClearBuf must be set to Off so data is not erased when read. Please refer to the “CE API Programming Guide” for details on scanner APIs. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 174: Com Ports

    The COM1 display contains the same parameters as the COM3 Tab. Adjust the settings and click the OK box to save the changes. The changes take effect immediately. Note: This panel configures the VX6 for an external scanner. It DOES NOT configure the tethered scanner. Please refer to the documentation for the tethered scanner for information on configuring the tethered scanner.
  • Page 175: Barcode

    • Replacing control characters • Adding a prefix and a suffix. For examples of the barcode processing options in use, please refer to: • “Control Code Replacement Examples” • “Barcode Processing Examples” later in this chapter. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 176: Symbology Settings

    If the Clear button is clicked while All is selected, a confirmation box is displayed. If confirmed, the process clears all symbology customizations and all asterisk (*) indicators. All symbologies are reset to their factory defaults. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 177: Figure 4-5 Disable Scan Input Confirmation

    Code ID – Specifies if the Code ID is stripped from the barcode data. Please see “ “Step 1: Check Code ID and “Step 9: Add Code ID” • Barcode Data – Specifies specific data to strip from the barcode. Please see “Step 6: Strip Barcode Data Strings”. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 178: Ctrl Char Mapping

    This mapping is independent of the “Translate All” function. If a control character is replaced by another control character, the replacement is performed only on the barcode data. Please see “Step 7: Replace Control Characters”. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 179: Custom Identifiers

    To erase all items from the list: When no items are selected in the list, the rightmost button is enabled and labeled Clear All. To clear all list items, click the Clear All button and confirm the delete. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 180: Figure 4-8 Symbology List With Custom Id

    When the Code ID strip feature is enabled (please see “Step 1: Check Code ID and “Step 9: Add Code ID” later in this section), the entire custom ID string specified in the ID Code textbox earlier is treated as the Code ID and stripped. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 181: Barcode Processing

    Figure 4-9 Select Code ID Note: Since the VX6 does not contain an internal scanner, this feature requires that the external scanner be manually configured to include the Code ID as part of the incoming barcode data. Please refer to the scanner documentation to enable the Code ID.
  • Page 182: Step 2: Reject Disabled Symbologies

    “good scan” beep when scanning a disabled symbology. However, the VX6 sounds a “bad scan” beep to indicate the barcode has been rejected. When None has been selected for Code ID, the Enable box cannot be unchecked (as this would disable the reading of all barcodes).
  • Page 183: Step 3: Check Barcode Length

    Code ID. Note: If the value entered for Max is greater than the maximum length allowed for the specified symbology, the maximum valid length is used instead. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 184: Step 4: Strip Leading Characters

    If Strip Code ID is also enabled, and Prefix and Suffix are not programmed, this returns an empty scan which is rejected. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 185: Step 5: Strip Trailing Characters

    If Strip Code ID is also enabled, and Prefix and Suffix are not programmed, this returns an empty scan which is rejected. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 186: Step 6: Strip Barcode Data Strings

    The string ABC* strips off the prefix ABC. The string *XYZ strips off the suffix XYZ. The string ABC*XYZ strips both the ABC prefix and the XYZ suffix from the barcode data. Only one wildcard * is allowed per string. (The VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 187 To erase all items from the list: When no items are selected in the list, the rightmost button is enabled and labeled Clear All. To clear all list items, click the Clear All button and confirm the delete. When finished, click OK to save the barcode data strings. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 188: Step 7: Replace Control Characters

    Available functions include: • To add data to the list: Select an item from the Character pulldown list and enter a value in the Replacement text box. The leftmost button is labeled Assign and is VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 189 To delete an item from the list: Click on the item to be deleted. The rightmost button is enabled and labeled Remove. Click the Remove button to remove the entry from the list. For examples, please see “Control Code Replacement Examples” later in this chapter. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 190: Step 8: Add Prefix String

    The prefix is added to the output buffer for the Symbology selected from the pulldown list. If ‘All’ is selected, the prefix is added for all symbologies for the selected Code ID that have not been previously customized. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 191: Step 9: Code Id

    The Code ID is stripped from the barcode data for the Symbology selected from the pulldown list. If ‘All’ is selected, the Code ID stripping is applied to all symbologies that have not been previously customized. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 192: Step 10: Add Barcode Data

    ‘All’ is selected, the suffix is added for all symbologies for the selected Code ID unless otherwise configured. Step 12: Add Terminating NUL A terminating NUL is added to the output buffer after the Suffix (if any) in case the data is processed as a string. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 193: Step 13: Start Key Output Thread

    (enter, tab, escape, backspace, etc.); any CTRL code which does not have a keyboard equivalent is dropped. In Block mode (“Send Key Messages” is not checked) CTRL codes are always passed through as a single CTRL code value. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 194: Examples

    0x0A. Escaped hex- The hex- Vertical Tab ‘\0x0A’ or Value 0x0C is a encoded text encoding to pass ‘0\x0A’ barcode is thru to the converted to text application. ‘0x0A’ VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 195: Barcode Processing Examples

    Rejected barcodes generate a bad scan beep. In some cases, the receipt of data from the scanner triggers a good scan beep (from the external scanner), and then the rejection of scanned barcode data by the processing causes a bad scan beep on the same data. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 196: Length Based Barcode Stripping Examples

    Create four custom IDs, using 1 for EAN128 barcode and 0 for Code128 barcode. • c1 = Code = ‘]C1’ • c2 = Code = ‘]C1’ • c3 = Code = ‘]C0’ (24 character barcode is CODE128) • c4 = Code = ‘]C1’ Figure 4-22 AIM Custom IDs VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 197: Figure 4-23 Aim Custom Setup For C1

    Click the Barcode Data button. Click the Add button. Add the data for the match codes. Figure 4-24 Barcode Match Data for C1 Refer to the previous section BarcodeData Match List for instruction. Scan a barcode and examine the result. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 198: Screen Blanking

    Screen Blanking Screen Blanking The VX6 can be configured to blank the display when the vehicle to which it is mounted is moving, eliminating a possible distraction for the driver. When configured properly, the screen blanking feature provides a tamper resistant method to blank the vehicle screen. The screen blanking feature consists of Scanner Control Panel Options and a customer supplied cable connected to one of the COM ports on the VX6.
  • Page 199: Screen Blanking

    For more information on AppLock, please refer to Chapter 6, “AppLock”. Operation of the VX6 is unchanged except for the blank display. The keypad and touchscreen are still enabled, however any input from they keypad, touchscreen or other device DOES NOT wake up the display.
  • Page 200 Screen Blanking VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 201: Chapter 5 Wireless Network Configuration

    Chapter 5 Wireless Network Configuration Introduction The VX6 computer may have a Summit, Cisco or Symbol radio. The Summit radio is an 802.11g radio. The Cisco and Symbol radios are 802.11b radios. The radio can be configured for no encryption, WEP encryption or WPA security (N/A with Symbol radio).
  • Page 202: Summit Radio

    Summit Radio Summit Radio The Summit radio requires software revision 2BT or greater. All VX6’s with a Summit radio ship with this software revision or greater. To identify the software revision, please click on the “About” icon in the Windows CE Control Panel.
  • Page 203: Summit Client Utility

    Summit Radio Summit Client Utility Note: When making changes to profile or global parameters, the VX6 should be warmbooted afterwards. Access: Start | Programs | Summit | SCU or SCU Icon on Desktop Figure 5-1 Summit Client Utility The Main tab provides information, admin login and active profile selection.
  • Page 204: Summit Tray Icon

    The WZC utility has an icon in the toolbar that looks like networked computers with a red X through them, indicating that Wireless Zero Config application is enabled but the connection is inactive at this time (the VX6 is not connected to a network). •...
  • Page 205: Main Tab

    Profile and Global parameters may only be edited after entering the Admin Login password. The Active Config may be changed without logging in. Once logged in, the button label changes to Admin Logout. The admin is also automatically logged out when the SCU is exited. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 206: Admin Login

    View the radio status, software versions and regulatory domain on the Main tab • Access additional troubleshooting features on the Diags tab. After Admin login, the use can also: • Create, edit, rename and delete profiles on the Profile tab • Edit global parameters on the Global tab. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 207: Profile Tab

    Scan – Scans for and displays a list of available APs. Can be used to create a profile from the APs listed. • Commit – Ensures that the profile settings made on this screen are saved in the profile. When not logged in, the parameters can be viewed, but cannot be changed. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 208: Using The Scan Feature

    • The SSID parameter is assigned the value of the SSID of the AP. Other profile entries must be completed manually. Click the Refresh button to update the display. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 209: Parameters

    Maximum = Max power for current regulatory domain 50, 30, 10 or 1 mW Default: Maximum Bit Rate Options: Auto = Rate negotiated automatically with the AP 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 or 54 Mbit Default: Auto E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 210 Extensible Authentication Protocol (EAP) type used for 802.1x authentication to AP Options: None LEAP EAP-FAST PEAP-MSCHAP PEAP-GTC EAP-TLS Default: None Note: The EAP type chosen determines if the Credentials button is active. Available entries on the Credentials pop up window vary by EAP type chosen. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 211 – The settings for Auth Type, EAP Type and Encryption depend on the security IMPORTANT type chosen. Please refer to “Summit Wireless Security”, later in this chapter, to determine the proper settings for the security type implemented on the wireless LAN. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 212: Status Tab

    There are no user entries on this screen. Note: After completing radio configuration, it is a good idea to review this screen to verify the radio has associated (no encryption, WEP) or authenticated (LEAP, any WPA), as indicated above. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 213: Diags Tab

    Save To… – Use this save the results of the diagnostics to a text file. Use the explorer window to specify the name and location for the diagnostic file. The text file can viewed using an application such as WordPad. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 214: Global Tab

    Roam Trigger If signal strength is less than this trigger value, the radio looks for a different AP with a stronger signal. Options: -50, -55, -60, -65, -70, -75 dBm, Custom (see Note above) Default: -65 dBm VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 215 APs on the same channel. Options: On, Off Default: CCX Features Use of Cisco Compatible Extensions (CCX) radio management and AP specified maximum transmit power features. Options: On, Off Default: Use of Wi-Fi Multimedia extensions. Options: On, Off Default: E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 216 Aux only = Aux antenna only On = Use diversity Default: For a VX6 with a single external antenna use Main Only. For a VX6 with dual external antennas or an internal antenna use On. RX Diversity How to handle antennas diversity when receiving packets from AP.
  • Page 217 For example, if the certificate is stored in My Computer/System/mycertificate.cer, enter System in the Certs Path text box as the directory path. Default: System Ping Payload Maximum amount of data to be transmitted on a ping. Options: 32, 64, 128, 256, 512, 1024 bytes Default: E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 218 Options: 0 to 30,000 ms Default: 5000 Ping Delay ms The amount of time, specified in milliseconds, between each ping. Options: 0 to 30,000 ms Default: 1000 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 219: Sign-on Vs. Stored Credentials

    Notes: More details are provided in the appropriate Summit Wireless Security section following in this chapter. If invalid credentials are entered into the stored credentials, the authentication will fail. No error message is displayed and the user is not prompted to enter valid credentials. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 220: Figure 5-9 Sign-on Screen

    If the user clicks the Cancel button, the device does not associate. The user is not prompted again for credentials until the device is rebooted, the radio is disabled then enabled, the Reconnect button on the Diags tag is clicked or the profile is modified and the Commit button is clicked. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 221: Windows Certificate Store Vs. Certs Path

    When completing the Credentials screen for the desired authentication, do not check the Use MS store checkbox after checking the Validate server checkbox. Enter the certificate name in the CA Cert textbox. Click OK to exit the Credentials screen and then Commit to save the profile changes. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 222: Figure 5-10 Choose Certificate

    Uncheck the Use full trusted store checkbox. Select the desired certificate and click the Select button to return the selected certificate to the CA Cert textbox. Click OK to exit the Credentials screen and then Commit to save the profile changes. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 223: Summit Wireless Security

    Make any desired parameter changes as described in the applicable following section determined by network security type and click the Commit button to save the changes. Be sure to click the Commit button after all changes have been made. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 224: No Security

    Figure 5-12 No Security Once configured, click the Commit button. Ensure the correct Active Profile is selected on the Main tab and warmboot. The SCU Main tab shows the device is associated after the radio connects to the network. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 225: Wep

    Enter the key(s) and click OK. Once configured, click the Commit button. Ensure the correct Active Profile is selected on the Main tab and warmboot. The SCU Main tab shows the device is associated after the radio connects to the network. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 226: Leap Without Wpa Authentication

    If the AP is configured for network EAP only, set the Auth Type radio parameter to LEAP. Please see “WPA/LEAP” later in this section to configure the radio for WPA LEAP. Figure 5-15 LEAP Configuration Please review “Sign-On vs. Stored Credentials”, earlier in this chapter. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 227: Figure 5-16 Leap Credentials

    OK. Once configured, click the Commit button. Ensure the correct Active Profile is selected on the Main tab and warmboot. The SCU Main tab shows the device is associated after the radio connects to the network. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 228: Peap/mschap

    User Name and Password when connecting to the network. • For Stored Credentials, User, Password and the CA Certificate Filename must be entered. Enter these items as directed below. Figure 5-18 PEAP/MSCHAP Credentials VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 229: Figure 5-19 Peap/mschap Certificate Filename

    The device should be authenticating the server certificate and using PEAP/MSCHAP for the user authentication. For information on generating a Root CA certificate, please see “Root CA Certificate” later in this chapter. Note: The date must be properly set on the device to authenticate a certificate. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 230: Peap/gtc

    User Name and Password when connecting to the network. • For Stored Credentials, User, Password and the CA Certificate Filename must be entered. Enter these items as directed below. Figure 5-21 PEAP/GTC Credentials VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 231: Figure 5-22 Peap/gtc Certificate Filename

    The device should be authenticating the server certificate and using PEAP/MSCHAP for the user authentication. For information on generating a Root CA certificate, please see “Root CA Certificate” later in this chapter. Note: The date must be properly set on the device to authenticate a certificate. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 232: Wpa/leap

    Set Encryption to WPA TKIP • Set Auth Type to Open Please see “LEAP” earlier in this section to configure the radio for LEAP without WPA. Figure 5-23 WPA/LEAP Please review “Sign-On vs. Stored Credentials”, earlier in this chapter. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 233: Figure 5-24 Wpa/leap Credentials

    Enter the password. Click OK then click Commit. Ensure the correct Active Profile is selected on the Main tab and warmboot. The SCU Main tab shows the device is associated after the radio connects to the network. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 234: Eap-fast

    The same username/password must be used to authenticate each time. See the note on the next page for more details. For manual PAC provisioning, the PAC filename and Password must be entered. Please review “Sign-On vs. Stored Credentials”, earlier in this chapter. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 235: Figure 5-26 Eap-fast Credentials

    Note: When using Automatic PAC Provisioning, once authenticated, there is a file stored in the \System directory with the PAC credentials. If the username is changed, that file must be deleted. The filename is autoP.00.pac. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 236: Eap-tls

    Sign-On Credentials as the user will be prompted for the User Name and Password when connecting to the network. • For Stored Credentials, User, Password and the CA Certificate Filename must be entered. Enter these items as directed below. Figure 5-28 EAP-TLS Credentials VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 237: Figure 5-29 Eap-tls Credentials

    For information on generating a Root CA certificate, please see “Root CA Certificate” later in this chapter. For more information on generating a User certificate, see “User Certificate” later in this chapter. Note: The date must be properly set on the device to authenticate a certificate. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 238: Wpa Psk

    This value can be 64 hex characters or an 8 to 63 byte ASCII value. Enter the key and click OK. Once configured, click the Commit button. Ensure the correct Active Profile is selected on the Main tab and warmboot. The SCU Main tab shows the device is associated after the radio connects to the network. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 239: Cisco Radio

    WPA (PEAP-MSCHAP, PEAP-GTC, EAP-TLS, WPA/LEAP and WPA-PSK).Configuring without WPA Cisco – Aironet Client Utility (ACU) Note: When making changes to profile parameters, the VX6 should be warmbooted afterwards. Access: Start | Programs | Cisco ACU or ACU Icon on Desktop Figure 5-32 Cisco Aironet Client Utility Note: To configure WPA, please see “Configuring for WPA”, later in this section.
  • Page 240: Profiles Tab

    • If no security is used, the only entry necessary on the Profile Properties screen may be the SSID. If the SSID is left blank, the radio can associate to any available network. • Network security must be set to None. • WEP must be set to No WEP. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 241: Wep

    Create a new profile or edit an exiting profile. • Network security must be set to LEAP. • The following parameters are accessible when LEAP is selected. Please enter the appropriate information. User Name User Password User Domain (optional) E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 242: Firmware Tab

    Select the Receive Stats or Transmit Stats. The data is displayed on the screen. Survey Tab Immediately runs signal strength and quality and link speed. An option is available to Setup parameters for Active Mode reporting. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 243: Configuring For Wpa

    Certificates are date sensitive and if the date is not correct authentication will fail. System Requirements To support Wi-Fi Protected Access (WPA), the VX6 must be equipped as follows: • Cisco 350 radio card with driver release 2.60 (or later).
  • Page 244: Checking For The Cisco Peap Supplicant

    If the Cisco installation is correct continue, with the configuration. If it is not correct, follow the procedures below. Note: Instructions are also included in the README file located in the \SYSTEM folder. There are two Cisco CAB files in the \SYSTEM folder of the VX6. The default files are: • CISCO.CAB •...
  • Page 245 If it becomes necessary to switch to a different authentication than Cisco PEAP or PEAP/GTC, 1. Rename the CISCO.CAB file to CISCOPEAP.CAB. 2. Rename the CISCOMSCHAP.CAB file to CISCO.CAB 3. Coldboot the terminal to install the new driver with the registry. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 246: Wireless Network Configuration

    After booting up, the Microsoft Zero Config tool should start. If it does not, start configuring the wireless connection by clicking on the icon on the task bar shown in below. Figure 5-39 Microsoft Wireless Connection Icon VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 247: Figure 5-40 Wireless Information Screen

    Make sure the “Use Windows to configure my wireless settings” box is checked. Set the “Networks to access” drop down box to “Only access points”. Click the OK button to return to the Wireless Information Screen. Click the Add New … line. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 248: Figure 5-42 Wireless Network Properties

    Enter the Network name (SSID) into the text field. For PEAP/MSCHAP and EAP/TLS, set Encryption to TKIP and Authentication to WPA. For WPA/PSK see “WPA/PSK Authentication Configuration”. To configure the IEEE 802.1X Authentication box see the following sections for configuration of each authentication protocol. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 249: Peap/ms-chap Authentication Configuration

    Figure 5-44 Authentication Settings When first configuring and authenticating, do not validate the server certificate. This allows the user authentication to be tested. When that works, come back to this screen and validate the server certificate. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 250: Figure 5-45 Wireless Network Login

    Once authenticated, click the IP Information tab. Figure 5-46 IP Information Tab If the network is set to use DHCP, the VX6 displays the IP address given by the DHCP server. Now go back and authenticate the server. VX6 Reference Guide...
  • Page 251: Server Authentication

    Click OK to dismiss the configuration boxes. Figure 5-48 Advanced Wireless Settings, Authenticated SSID Once the authentication completes, the status changes to show the VX6 has authenticated to the <SSID>, as shown in the figure above. Click on the IP Information tab and make sure there is a valid IP address as shown in the figure labeled “IP Information Tab”, earlier in this chapter.
  • Page 252: Peap/ Gtc Authentication Configuration

    When first configuring and authenticating, do not validate the server certificate. This allows the user authentication to be tested. When user authentication is successful, return to this screen and validate the server certificate as shown later in this section. Check the Always try to resume secure session box. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 253: Figure 5-51 Login Screen

    Figure 5-51 Login Screen Enter valid user credentials. Once authenticated click the IP Information tab Figure 5-52 IP Information Tab The device displays the IP address given by the DHCP server. Now go back and authenticate the server. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 254: Server Authentication

    Root CA certificate by name as shown below. Figure 5-54 Server Connection Warning If this is the correct server certificate Root CA, click OK. If not, install the correct Root CA as described in “Installing a Root CA Certificate” in this chapter. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 255: Figure 5-55 Peap Properties, Trusted Root Certificate

    The same thing can be done for the Connect only if server name ends in field. Check the box and leave the field blank. A prompt window will appear asking for confirmation of the correct server name. Figure 5-56 Accept Server Connection Warning E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 256: Figure 5-57 Peap Properties, Connect Only If Server Name Ends In

    Figure 5-58 Wireless Information, Authenticated Once the authentication completes the status will change to Authenticated to <SSID> as shown. Click on the IP Information tab and make sure there is a valid IP address as shown previously in this section. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 257: Wpa/leap

    Cisco Radio WPA/LEAP LEAP is a Cisco proprietary authentication protocol and is not supported by the Microsoft supplicant. To configure the VX6 for WPA/LEAP, use the Cisco ACU installed during normal installation of the Cisco radio driver. Cisco ACU Start the Cisco ACU by clicking the icon on the desktop or navigate to Start | Programs | Cisco | ACU.
  • Page 258: Figure 5-61 Profile Properties Screen

    Enter the SSID and Client Name in the correct fields. Set the Network Security Type to LEAP(WPA). Click the OK button. Figure 5-62 Select Profile Use the drop down box to choose the profile just configured. Click OK. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 259: Figure 5-63 Login Screen

    Cisco Radio The VX6 associates and displays the sign on screen. Figure 5-63 Login Screen Click the Status tab to display status. Figure 5-64 ACU Status Tab E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 260: Eap-tls Authentication Configuration

    Set the drop down box to “My Certificates” as shown below. The correct user certificate should be shown in the right pane. Figure 5-65 Certificate Stores Click the View button. Figure 5-66 View Certificate Details Set the Field to Private Key VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 261: Setting Eap/tls Parameters

    Setting EAP/TLS Parameters With the radio parameters configured (see “Wireless Network Configuration”) set the EAP type to TLS as shown. Figure 5-67 EAP/TLS Configuration Click the Properties button. Figure 5-68 Authentication Settings E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 262: Figure 5-69 Select Certificate

    Click the OK button to dismiss the configuration screens. When the radio re-connects the user is authenticated with the user certificate. If the user does not authenticate, recheck the user certificate and the date on the computer. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 263: Validating The Server Certificate

    Cisco Radio Validating the Server Certificate Before validating the server certificate, make sure the Root CA certificate is installed on the VX6. Navigate to the Wireless Network Properties configuration screen. Click the Properties button. Check the Validate server box as shown below.
  • Page 264: Wpa Psk Configuration

    Enter an ASCII network key in the text field. Hex keys do not work in the Microsoft Zero Config utility at this time. There is no server authentication when using WPA-PSK. Click the OK button to complete configuration. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 265: Symbol Radio

    Double Tap the Network Connected Icon in the Status Bar Figure 5-74 Symbol NETWLAN Screen IP Information Tab After the IP Address has been assigned to the VX6, tap the Renew button to renew the IP address if necessary. Tap the Details button to view the Network Connection details.
  • Page 266: Wireless Information Tab

    Authentication (WPA, Open, Shared, WPA-PSK) Ad hoc network Disabled Key provided automatically Enabled Enable 802.1X authentication Enabled EAP Type (MDF-Challenge, PEAP, TLS) Figure 5-75 Symbol Wireless Information Tab View Log Displays the logon/connection data for the current network connection. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 267: Add A New Connection

    If you wish to enter your Authentication key, uncheck the “Key provided automatically” checkbox and enter the Network Key in the Network Key text box. • Tap the OK button to return to the Wireless Information tab. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 268: Select A User Certificate

    3. In the IEEE 802.1X Authentication box, enable 802.1X authentication 4. Select an EAP type 5. Tap the Properties button. Validate Server is enabled by default. 6. At the Authentication Settings display, tap the Select button to choose a User Certificate. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 269: Certificates

    IP address>/certsrv. Sign into the CA with any valid username and password. Figure 5-78 Logon to Certificate Authority Figure 5-79 Certificate Services Welcome Screen Click the Download a CA certificate, certificate chain or CRL link. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 270: Figure 5-80 Download Ca Certificate Screen

    To download the CA certificate, click on the Download CA certificate link. Figure 5-81 Download CA Certificate Screen Click the Save button and save the certificate. Make sure to keep track of the name and location of the certificate. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 271: Installing A Root Ca Certificate

    This section is used for Cisco radios only. Summit radios do not use the Windows certificate store. Instead, copy the certificate to the \System folder for use with a Summit radio. Copy the certificate file to the VX6. Import the certificate by navigating to Start | Control Panel | Certificates. Figure 5-82 Certificates Click the “Import”...
  • Page 272: Figure 5-84 Browsing To Certificate Location

    Using the explorer buttons, browse to the location where you copied the certificate, select the certificate desired and click OK. Figure 5-85 Certificate Import Confirmation Click Yes to import the certificate. Once the certificate is installed, return to the proper authentication section, earlier in this manual. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 273: User Certificates

    This process saves a user certificate and a separate private key file. Windows CE equipped devices such as the VX6 require the private key to be saved as a separate file rather than including the private key in the user certificate.
  • Page 274: Figure 5-88 Request A Certificate Screen

    Click the Request a certificate link. Figure 5-88 Request a Certificate Screen Click on the advanced certificate request link. Figure 5-89 Advanced Certificate Request Screen Click on the Create and submit a request to this CA link. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 275: Figure 5-90 Advanced Certificate Details

    VX6USER.PVK. The certificate file created later in this process must be given the same name, for example, VX6USER.CER. DO NOT check to use strong private key protection. Make any other desired changes and click the “Submit” button. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 276: Figure 5-91 Script Warnings

    If any script notifications occur, click the “Yes” button to continue the certificate request. Figure 5-92 Script Warnings When prompted for the private key password: • Click “None” if you do not wish to use a password, or • Enter and confirm your desired password then click “OK”. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 277: Figure 5-93 Certificate Issued

    Be sure use the same name for the certificate file as was used for the private key file. For example, it the private key was saved as VX6USER.PVK then the certificate file created must be given the same name, for example, VX6USER.CER. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 278: Installing A User Certificate

    Certificates Installing a User Certificate Copy the certificate and private key files to the VX6. Import the certificate by navigating to Start | Control Panel | Certificates. Select “My Certificates” from the pull down list. Figure 5-95 Certificates Click the “Import” button.
  • Page 279: Figure 5-97 Browsing To Certificate Location

    Using the explorer buttons, browse to the location where you copied the certificate, select the certificate desired and click OK. The certificate is now shown in the list. Figure 5-98 Certificate Listing With the certificate you just imported highlighted, click View. From the Field pull down menu, select “Private Key. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 280: Figure 5-99 Private Key Not Present

    Using the explorer buttons, browse to the location where you copied the private key file, change the Type pull down list to “Private Keys”, select the certificate desired and click OK. Enter the password for the certificate if appropriate. Click on View to see the certificate details again. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 281: Figure 5-101 Private Key Present

    Make sure the certificate and private key file have the same name, for example vx6user.cer for the certificate and vx6user.pvk for the private key file. If the file names are not the same, rename the private key file and import it again. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 282 Certificates VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 283: Chapter 6 Applock

    AppLock is updated periodically as new options become available. Contact your LXE representative for assistance, downloads and update availability. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 284: Determining Your Applock Version

    LXE Multi-Application AppLock installed. The Administrator can configure multiple applications to lock and the end user can swap between the applications. Figure 6-1 Multi-Application AppLock The configuration instructions in this chapter are designed for users of Multi-Application AppLock. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 285: Single Application Applock

    While the Application tab contains provisions for multiple applications, the Control tab only allows the administrator to specify a single application. • The section on End User Switching Technique does not apply to this version. • Some configuration items may not be available. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 286: Setup A New Device

    6. Select a view level on the Status tab screen, if desired. 7. Tap OK 8. Press the hotkey sequence to launch AppLock and lock the configured application(s). 9. The device is now in end-user mode. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 287: Administration Mode

    If this type of application is being locked, the administrator should close all other applications before switching to end user mode to minimize the screen flicker. Windows accelerator keys such as Alt-F4 are disabled. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 288: Passwords

    AppLock will wait until the correct password is entered. Troubleshooting Can’t locate the password that has been set by the administrator? Enter this LXE back door key sequence: Ctrl+L Ctrl+X Ctrl+E Ctrl+5 Ctrl+9 Ctrl+3 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 289: End-user Switching Technique

    The touch screen must be enabled. Figure 6-3 Switchpad Menu A checkmark indicates applications currently active or available for Launching by the user. When Keyboard is selected, the VX6 default input method (Input Panel, Transcriber, or custom input method) is activated. Using a Stylus Tap When the mobile device enters end-user mode, a Switchpad icon (it looks like three tiny windows one above the other) is displayed in the taskbar.
  • Page 290: Application Configuration

    Use the Application tab options to select the applications to launch when the device boots up in End-user Mode. If no application is specified when the Administrator Control Panel is closed, the mobile device reboots into Administrator mode. If a password has been set, but an application has not been VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 291 Tap the Clear button to clear all currently displayed Filename or Clear Button Application information. The Global settings are not cleared. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 292 Use the left and right scroll buttons to move from application setup screen Scroll Buttons to application setup screen. The left and right buttons update the information on the screen with the previous or next configured application respectively. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 293: Launch Button

    (by lowest Order number) and no delay (0 seconds) for all other applications. Note: Launch order is determined by the Order specified in the Application tab. The Order value does not have to be sequential. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 294: Auto Re-launch

    When Auto At Boot and Manual (Launch) are both disabled for a specific application, the application is 1) not placed on the list of approved applications for end-user manual launch and 2) never launched, and 3) not displayed on the Switchpad. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 295: Allow Close

    This means that IEXPLORER.EXE should be specified in the Application text box and the internet application should be entered in the command line. In this case, do not check the Internet checkbox. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 296: Security Panel

    SIP when configuring the key. However, when the hotkey is pressed to switch modes, the normal key must be entered from the keypad; it cannot be entered from the SIP. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 297: Password

    Processing status shows the flow control of AppLock components and is mainly intended for LXE Customer Service when helping users troubleshoot problems with their AppLock program. Extended Extended status provides more detailed information than that logged by Process Logging. All messages are displayed. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 298 When the 'Save As'… button is selected, a standard 'Save As' dialog screen is displayed. Specify the path and filename. If the filename exists, the user is prompted whether the file should be overwritten. If the file does not exist, it is created. See Also: Error Messages VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 299: Appendixa Key Maps

    “System Configuration”. When NumLock is off, only the numeric 0 through 9 and DOT keys are affected. All other keymaps are unchanged. When the VX6 boots, the default condition of Caps (or CapsLock) is Off. The Caps (or CapsLock) condition can be set toggled with a <2nd>+<F1> key sequence. The CAPS LED on the keyboard is illuminated when CapsLock is On.
  • Page 300 The Volume Control keys have no function as the volume control is adjusted via the Windows CE Control Panel. The Suspend/Resume key has no function as Windows Power Management controls all power management modes on the VX6. Press <Ctrl> then <2 > then <F2> to produce Ctrl-Break.
  • Page 301 Key Map 101-Key Equivalencies Press These Keys and Then To get this key Press this key Shift Ctrl CapsLock E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 302 Key Map 101-Key Equivalencies Press These Keys and Then To get this key Press this key Shift Ctrl CapsLock < > VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 303 Press this key Shift Ctrl CapsLock / (numeric) / (alpha) - (numeric) - (alpha) + (numeric) + (alpha) * (numeric) * (alpha) : (colon) ; (semicolon) _ (underscore) , (comma) ‘ (apostrophe) ~ (tilde) “ & E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 304: Ibm 3270 Terminal Emulator Keypad

    Figure A-3 IBM 5250 Specific Keypad This keypad is designed to allow the user to enter terminal emulator commands when running LXE’s RFTerm program. When running this program please refer to the RFTerm Reference Guide for equivalent keys and keypress sequences. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 305: Creating Custom Key Maps For The Vx6

    System Administrator can convert a sample default key map text file into a custom key map text file which, when loaded onto the VX6, can be chosen by the user to replace the default VX6 keymap and then switched back when they are finished using the customized keys.
  • Page 306: Keymap Source Format

    Note: VX6 and Remote Desktop Connection: before connecting to a host using Remote Desktop Connection, go to Start | Settings | Control Panel | Keyboard and select Preload or 0409 (depending on system software revision) from the keymap popup. Click OK.
  • Page 307: General Section

    Creating Custom Key Maps for the VX6 GENERAL Section The first section is the GENERAL section. This contains the keymap name (all numerics), as well as the number of rows and columns in the keymap, and the algorithm for converting rows and columns to a data byte to go into the keymap table.
  • Page 308: Map Section

    Creating Custom Key Maps for the VX6 MAP Section [Map] MAP=MAP_NORMAL ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL0ROW0=VK_ESCAPE COL0ROW1=VK_F1 There will be several (4 to 7) MAP sections, each defining the keymap for a given combination of modifier keys. The keyboard driver requires keymaps for normal (no modifiers), SHIFT only, 2ND only, and 2ND-SHIFT combined.
  • Page 309 SCAN1 Scan key 1 (N/A on VX6) SCAN2 Scan key 2 (N/A on VX6) SCAN3 Handle trigger button (unused on VX6, but specified) POWER power button BACKLIGHT backlight on/off function Note that specifying the power button in a different location will affect suspend/resume functions.
  • Page 310: Keycomp Error Messages

    Creating Custom Key Maps for the VX6 Keycomp Error Messages Most error messages will specify the line within the keymap source file where the error occurred. Duplicate key A COLxROWx code was found in a MAP table, but that COL/ROW already has a value assigned.
  • Page 311 Creating Custom Key Maps for the VX6 Invalid scan code The scan code parsed is not recognized. The scan code can take one of the following formats: • VK_code • ‘x’ • SHIFT+VK_code • SHIFT+‘x’ • ACTION+code • CHANGE+mapname •...
  • Page 312 Creating Custom Key Maps for the VX6 No definition for map MAP_2ND There is no 2nd keymap defined. The keyboard driver requires this keymap to be defined. This message comes from the post-parse validation, so no line # is specified.
  • Page 313 Creating Custom Key Maps for the VX6 No definition for MapHead.keyscan2 No Scan Key 2 definition was found. The keyboard driver requires this key to be defined somewhere in one of the keymaps. This message comes from the post-parse validation, so no line # is specified.
  • Page 314: Sample Input File

    Creating Custom Key Maps for the VX6 Sample Input File Note: The VX6 uses the same DEFAULT.KEY file as the MX3X. ;;---------------------------------------------------- ;; keymap file for MX3X default keyboard ;;---------------------------------------------------- ;;---------------------------------------------------- ;; general parms give the size of arrays ;; all numeric values are decimal ;;...
  • Page 315 Creating Custom Key Maps for the VX6 COL1ROW6='O' COL1ROW7=ACTION+SCAN2 ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL2ROW0='A' COL2ROW1=open COL2ROW2='D' COL2ROW3='G' COL2ROW4='J' COL2ROW5='1' COL2ROW6='L' COL2ROW7='3' ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL3ROW0=' ' COL3ROW1=open COL3ROW2='X' COL3ROW3='V' COL3ROW4='N' COL3ROW5='0' COL3ROW6=VK_LEFT COL3ROW7=VK_TAB ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL4ROW0=VK_F9 COL4ROW1='S' COL4ROW2=VK_RIGHT COL4ROW3='F' COL4ROW4='H' COL4ROW5='K' COL4ROW6='2' COL4ROW7=VK_UP ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL5ROW0='6' COL5ROW1='Z'...
  • Page 316 Creating Custom Key Maps for the VX6 ;;---------------------------------------------------- ;; the name of this key doesn't matter ;; the important part is the MAP value ;; codes are defined in docs ;; this is the map for keys with only 2ND ;;----------------------------------------------------...
  • Page 317 Creating Custom Key Maps for the VX6 COL5ROW5=SHIFT+VK_HYPHEN COL5ROW6=VK_DELETE COL5ROW7=VK_NEXT ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL6ROW0=ACTION+BACKLIGHT COL6ROW1=SHIFT+'2' COL6ROW2=open COL6ROW3=SHIFT+'4' COL6ROW4=SHIFT+'6' COL6ROW5=SHIFT+'8' COL6ROW6=SHIFT+VK_LBRACKET COL6ROW7=SHIFT+'0' ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL7ROW0=SHIFT+'3' COL7ROW1=open COL7ROW2=open COL7ROW3=open COL7ROW4=CHANGE+MAP_CONTRAST COL7ROW5=VK_SLASH COL7ROW6=CHANGE+MAP_VOLUME COL7ROW7=open ;;---------------------------------------------------- ;; the name of this key doesn't matter ;; the important part is the MAP value ;;...
  • Page 318 Creating Custom Key Maps for the VX6 COL3ROW2=open COL3ROW3=open COL3ROW4=open COL3ROW5='0' COL3ROW6=open COL3ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL4ROW0=open COL4ROW1=open COL4ROW2=open COL4ROW3=open COL4ROW4=open COL4ROW5=open COL4ROW6='2' COL4ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL5ROW0='6' COL5ROW1=open COL5ROW2=open COL5ROW3=open COL5ROW4=open COL5ROW5=open COL5ROW6=open COL5ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL6ROW0=open COL6ROW1=open COL6ROW2=open COL6ROW3=open COL6ROW4=open COL6ROW5=open COL6ROW6='5' COL6ROW7=open ;;;;;;;;;;;;;;;;;;;;;;;;;;;...
  • Page 319 Creating Custom Key Maps for the VX6 ;;---------------------------------------------------- ;; the name of this key doesn't matter ;; the important part is the MAP value ;; codes are defined in docs ;; this is the map for keys with only SHIFT ;;----------------------------------------------------...
  • Page 320 Creating Custom Key Maps for the VX6 COL5ROW5=SHIFT+'M' COL5ROW6=SHIFT+VK_PERIOD COL5ROW7=SHIFT+VK_DOWN ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL6ROW0=SHIFT+VK_F10 COL6ROW1=SHIFT+'W' COL6ROW2=SHIFT+VK_RETURN COL6ROW3=SHIFT+'R' COL6ROW4=SHIFT+'Y' COL6ROW5=SHIFT+'I' COL6ROW6=SHIFT+'5' COL6ROW7=SHIFT+'P' ;;;;;;;;;;;;;;;;;;;;;;;;;;; COL7ROW0=SHIFT+'E' COL7ROW1=open COL7ROW2=SHIFT+VK_F3 COL7ROW3=SHIFT+VK_F4 COL7ROW4=SHIFT+VK_F6 COL7ROW5=SHIFT+'7' COL7ROW6=SHIFT+VK_F8 COL7ROW7=open VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 321: Sample Output File

    Creating Custom Key Maps for the VX6 Sample Output File [HKEY_CURRENT_USER\Keyboard Layout\0409] ;; header limits and special keys MAPCNT MAPCOLS MAPROWS # of keys in each map (unused) (unused) scancode value for power key scancode value for up arrow scancode value for down arrow...
  • Page 322 Creating Custom Key Maps for the VX6 ;; Flag2 is the shift codes for the 2ND-SHIFT key map "Flag2"=hex:\ 00,00,A0,00,00,00,00,A0,00,00,A0,00,00,00,00,A0,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\ 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00 ;; Map3 is the scancode values for the SHIFT key map "Map3"=hex:\ 1B,70,DF,71,74,76,38,87,51,39,89,54,55,34,4F,88,\ 41,00,44,47,4A,31,4C,33,20,00,58,56,4E,30,25,09,\ 78,53,27,46,48,4B,32,26,36,5A,08,43,42,4D,BE,28,\ 79,57,0D,52,59,49,35,50,45,00,72,73,75,37,77,00 ;; Flag3 is the shift codes for the SHIFT key map "Flag3"=hex:\...
  • Page 323: Appendixb Technical Specifications

    Width: 9.6 in (24.38 cm) Depth: 3.7 in (9.39 cm) Battery for CMOS Internal lithium Battery External AC Adapter 120-240VAC to 12VDC Power Supply 64MB Flash and 64MB RAM options have been discontinued. The COM3 port is labeled “COM2/3”. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 324: Environmental Specifications

    Environmental Specifications Environmental Specifications The VX6 will withstand the following environmental characteristics and has been tested in accordance with applicable sections of MIL-STD-810E. Feature Specification Altitude Operational to 10,000 ft. (3048 meters) Operating Temperature Standard version: -4°F to 122°F (-20°C to 50°C) [non-condensing] Extended temperature version: -22º...
  • Page 325: Display Specifications

    -40 °C to +70 °C (-40 °F to +158 °F) Storage Temperature Water, Sand and Dust IP66 per IEC60529 Humidity 10-90% Non-condensing at 40°C (104°F) Vibration Bounce loose cargo for 0.5 hour duration. Common carrier transportation, transit face. 15 kV E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 326: Radio Specifications

    1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps RF Power Level: 64 mW (18 dBm) Channels 11 US, 13 Europe, 13 Japan Operating Temperature see VX6 Environmental Specifications Storage Temperature see VX6 Environmental Specifications Connectivity: Novell, TCP/IP, Ethernet, ODI PCMCIA Cisco 2.4GHz Type II Bus Interface: PCMCIA 2.0, Type II slot...
  • Page 327: Bluetooth

    Up to 3.0 Mbit/s over the air Connection No less than 32.80 ft (10 meters) line of sight Bluetooth Version 2.0 + EDR Operating Frequency: 2.402 - 2.480 GHz Operating Temperature see VX7 Environmental Specifications Storage Temperature see VX7 Environmental Specifications E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 328 Radio Specifications VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 329: Appendixc Reference Material

    Introduction Contents of this Appendix include: • AppLock Error Messages and Registry Settings • Revision History and the following charts: • Valid VK Codes for CE • ASCII Control Codes • Hat Encoding • Decimal-Hexadecimal Chart E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 330: Applock Error Messages

    AppLock.exe from the \Windows directory and reboot the unit. Deleting AppLock.exe triggers the AppLock system to reload. Address of keyboard hook AppLock successfully retrieved the address of the LOG_EX procedure OK keyboard filter initialization procedure. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 331 Unable to decrypt password. LOG_ERROR Decrypt acquired context OK Decryption process ok. LOG_EX Decrypt create hash failure Unable to decrypt password. LOG_ERROR Decrypt created hash OK Decryption process ok. LOG_EX Decrypt failure Unable to decrypt password. LOG_ERROR E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 332 AppLock launches the application and has to wait until it has created and initialized its main window. This message is logged when the function that waits for the application initialization is entered. Enter DecryptPwd Entering the password decryption process. LOG_PROCESSING VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 333 Processing is at the end of the function that retrieved the LOG_PROCESSING application information from the registry. Exit password dialog Exiting password prompt processing. LOG_PROCESSING Exit password dialog-cancel Exiting password prompt w/cancel. LOG_PROCESSING Exit password dialog-OK Exiting password prompt successfully. LOG_PROCESSING E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 334 Processing the hotkey and backdoor entry LOG_EX Hot key set event failure When the administrator changes the hotkey LOG_ERROR configuration the hotkey controller must be notified. This notification failed. Hotkey press message received The user just pressed the configured hotkey. LOG_PROCESSING VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 335 The keyboard hook uses an embedded default if the value is not set in the registry. Read registry failure-app name AppName registry value does not exist or is empty. This LOG_ERROR constitutes a failure for switching into user mode. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 336 The taskbar is now being made visible and enabled. LOG_PROCESSING Switching to admin-backdoor The system is currently in user mode and is now LOG_PROCESSING switching to admin mode. The switch occurred because of the backdoor key presses were entered by the administrator. VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 337 If user mode is being entered via a hotkey press, the LOG_EX line change administrator may have left the configured application open. If so, AppLock does not launch the application again unless a new application or command line has been specified; otherwise, it just locks it. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 338 The window handle that is passed to the enumeration LOG_EX enumwindows=%x function. This message can be used by engineering with other development tools to trouble shoot application lock failures. WM_WINDOWPOSCHG Output the window size after it has been adjusted by LOG_EX adjusted=%x AppLock VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 339: Applock Registry Settings

    HKEY_LOCAL_MACHINE\\Software\\LXE\\AppCommandLine= In addition to the registry settings needed to specify the application, additional registry settings are needed to store the configuration options for AppLock. These options include, among others, the administrator’s password and hotkey. HKEY_LOCAL_MACHINE\\Software\\LXE\\AppLock\\Administration\\HotKey= HKEY_LOCAL_MACHINE\\Software\\LXE\\AppLock\\Administration\\EP= E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 340: Valid Vk Codes For Ce

    VK_F1 VK_MEDIA_PREV_TRACK VK_VOLUME_UP VK_F10 VK_MEDIA_STOP VK_ZOOM VK_F11 VK_MENU VK_F12 VK_MULTIPLY VK_F13 VK_NEXT VK_F14 VK_NOCONVERT VK_F15 VK_NONAME VK_F16 VK_NUMLOCK VK_F17 VK_NUMPAD0 VK_F18 VK_NUMPAD1 VK_F19 VK_NUMPAD2 VK_F2 VK_NUMPAD3 VK_F20 VK_NUMPAD4 VK_F21 VK_NUMPAD5 VK_F22 VK_NUMPAD6 VK_F23 VK_NUMPAD7 VK_F24 VK_NUMPAD8 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 341: Ascii Control Codes

    Shift In Ctrl-o Data Link Escape Ctrl-p Device Control 1, normally XON Ctrl-q Device Control 2 Ctrl-r Device Control 3, normally XOFF Ctrl-s Device Control 4 Ctrl-t Negative AcKnowledge Ctrl-u SYNchronous idle Ctrl-v End Transmission Block Ctrl-w E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 342 VK_SHIFT (0x10) down WM_CHAR 0x36 down Record Separator WM_CHAR 0x36 up VK_SHIFT up VK_CONTROL up VK_CONTROL (0x11) down VK_SHIFT (0x10) down VK_PACKET (0xe7) down Unit Separator WM_CHAR 0x1f VK_PACKET (0xe7) up VK_SHIFT (0x10) up VK_CONTROL (0x11) up VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 343: Hat Encoding

    Hat Encoding Hat Encoding The VX6 supports only 7-bit hat encoding which means only ^@ through ^_ (underscore) are supported. Desired Desired Hex Value Hex Value ASCII Encoded ASCII Encoded 0X00 0X01 0X02 0X03 0X04 0X05 0X06 0X07 0X08 0X09...
  • Page 344 Å î Æ ï Ç ð È ñ É ò Ê ó Ë ô Ì õ Í ö Î ÷ Ï ø Ð ù Ñ ú Ò û Ó ü Ô ý Õ þ Ö ÿ VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 345: Decimal - Hexadecimal Chart

    0x71 0x99 0x22 0x4A 0x72 0x9A 0x23 0x4B 0x73 0x9B 0x24 0x4C 0x74 0x9C 0x25 0x4D 0x75 0x9D 0x26 0x4E 0x76 0x9E 0x27 0x4F 0x77 0x9F Figure C-1 Decimal - Hexadecimal Chart (0 to 159 Decimal) E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 346: Figure C-2 Decimal - Hexadecimal Chart (160 To 255 Decimal)

    0xBB 0xE3 0xBC 0xE4 0xBD 0xE5 0xBE 0xE6 0xBF 0xE7 0xC0 0xE8 0xC1 0xE9 0xC2 0xEA 0xC3 0xEB 0xC4 0xEC 0xC5 0xED 0xC6 0xEE 0xC7 0xEF Figure C-2 Decimal - Hexadecimal Chart (160 to 255 Decimal) VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 347: Revision History

    Updated “The Keyboards”, “CAPS LED”, “On/Off Switch”, “General Windows CE .NET Keyboard Shortcuts” and “Ethernet/USB Dongle Cable” sections. Replaced “CapsLock, Scroll Lock and the VX6” section with “CapsLock and the VX6” and “Scroll Lock and the VX6” sections. Replaced “Antenna Connector” section with “Antenna Connections”...
  • Page 348 “Reflash the VX6” sections. Added new sections: “Folders Copies at Startup” and “Enabling GrabTime”. Removed section: “Bluetooth Manager”. Renamed “VX6 Command Line Utility” to “VX6 Command Line Utilities” and updated section. Chapter 5 – Wireless Network Revised “Profiles Tab” section.
  • Page 349 Revised “Enabling GrabTime”. Revised “Wavelink Avalanche Enabler Configuration” for Avalanche Mobility Center. Chapter 5 – Wireless Network Updated chapter for EAP-FAST support, tray icon, help feature, etc. Configuration included in latest version of SCU. Revised section: “Admin login”. E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 350 Revision History VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 351: Index

    Application Panel ..........268 Root CA ............247 AppLock User..............251 End-user mode ..........265 Character Recognition EUIE ..............273 Touchscreen ............79 Hotkey for Administrator........265 Cisco Passwords............266 PEAP Suplicant..........222 Setup ..............261 WPA Radio Driver..........221 AppLock Registry settings ........317 Cisco Client ............220 E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 352 Current Time ............94 USB..............37 Custom Key Mapping..........283 External Connectors, Specifications......301 Data Bits ............109, 149 Factory Default Settings Data entry ..............9 ATA Compact Flash Slot........106 Daylight Savings .............94 Cisco Client............218 DB9-DB9 Serial Cable Date/Time ............94 Tech Specifications........35, 120 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 353 Summit Radio ...........204 Toggle Caps-Lock on and off ......51 LED indicators............50 Type <!> .............51 LEDs HyperTerminal ............118 2nd ..............51 Caps-Lock, CAPS ..........50 Secondary Keys ..........51 List configured ActiveSync connections ....105 Location Icons Antenna Connector ..........32 Explorer, Internet ..........73 E-EQ-VX6RG-F VX6 Reference Guide...
  • Page 354 NumLock........277 Pre-loaded Files ..........70, 121 Switch ............31, 301 Printer Serial Port ............34 Operating Temperature, Specifications ....302 Prompt Optional Power Supply..........64 Command............78 Owner Identification .............103 Notes ..............103 Quick Start Instructions..........4 Parity .............109, 149 Password..............104 Radio AppLock ............266 VX6 Reference Guide E-EQ-VX6RG-F...
  • Page 355 Hardware..........25, 180, 221 devices ..............109 Software ..............25 Storage Temperature, Specifications .....302 Root CA Certificates Stored certificates ............94 Generating............247 Stylus ..............10, 56 Installing on VX6..........249 Data Entry ............10 RS-232 properties ............110 Data Entry .............9 sensitivity ............110 Switch applications Multi AppLock .............5 System Hardware Configuration ........26...
  • Page 356 USB Connector, Location .........7 Windows CE on-line Help........73 USB Mouse .............11 Windows Explorer...........79 User Certificates Windows version...........111 Generating............251 Wire Color Installing on VX6..........256 Cable Wiring............66 User-specific application version information..82 Utilities ..............121 Radio Driver, Cisco ..........221 Supported Authentications........179 Cisco Radio ..........221 Summit Radio..........180 Vehicle Chassis Ground ..........43...

Comments to this Manuals

Symbols: 0
Latest comments:
