Right View

1
1
Note that the connections to the USB ports only fit one way, do not force them. USB 3.0
ports are denoted by their blue color; USB 2.0 ports are colored black.
The powered USB 3.0
3
erating devices) when the system is off but still powered by the AC/DC adapter plugged
into a working outlet, or powered by the battery with a capacity level above 20% (this may
not work with certain devices - see page
power button (press for around 1 to 2 seconds to toggle).
See for a more detailed description of the ports & jacks etc.
Appendix A
Models A & D
2
Models B & C
2

USB 3.0 Ports & USB Port Power
port can supply power (for charging devices only, not for op-
12). Toggle power to this port by using Fn +
8 -
5
4
3
5
6
4
3
Quick Start Guide

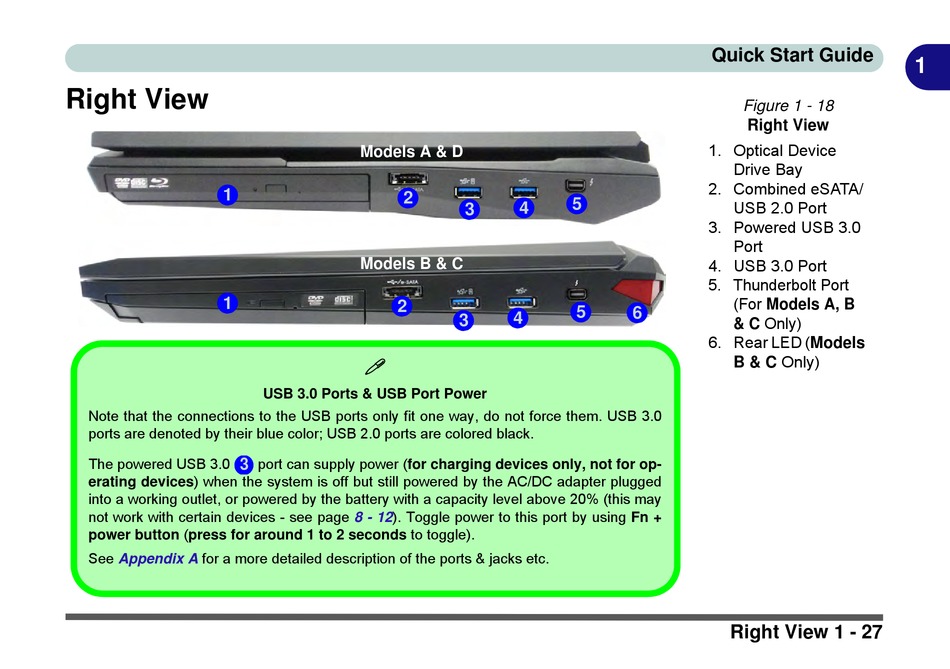

Figure 1 - 18
Right View
1. Optical Device
Drive Bay
2. Combined eSATA/
USB 2.0 Port
3. Powered USB 3.0
Port
4. USB 3.0 Port
5. Thunderbolt Port
(For Models A, B
& C Only)
6. Rear LED (Models
B & C Only)
Right View 1 - 27
