Quick Start Guide
1

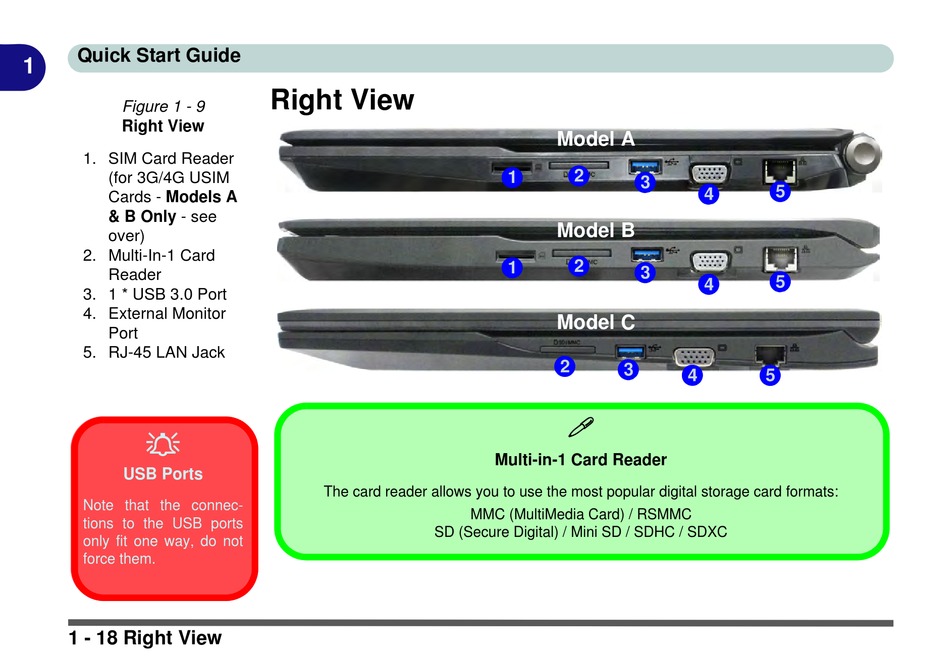

Figure 1 - 9

Right View

1. SIM Card Reader
(for 3G/4G USIM
Cards - Models A
& B Only - see
over)
2. Multi-In-1 Card
Reader
3. 1 * USB 3.0 Port
4. External Monitor
Port
5. RJ-45 LAN Jack

USB Ports
Note that the connec-
tions to the USB ports
only fit one way, do not
force them.
1 - 18 Right View
Right View
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC
Model A
2
1
3
Model B
2
1
3
Model C
2
3

Multi-in-1 Card Reader
MMC (MultiMedia Card) / RSMMC
5
4
5
4
4 5
