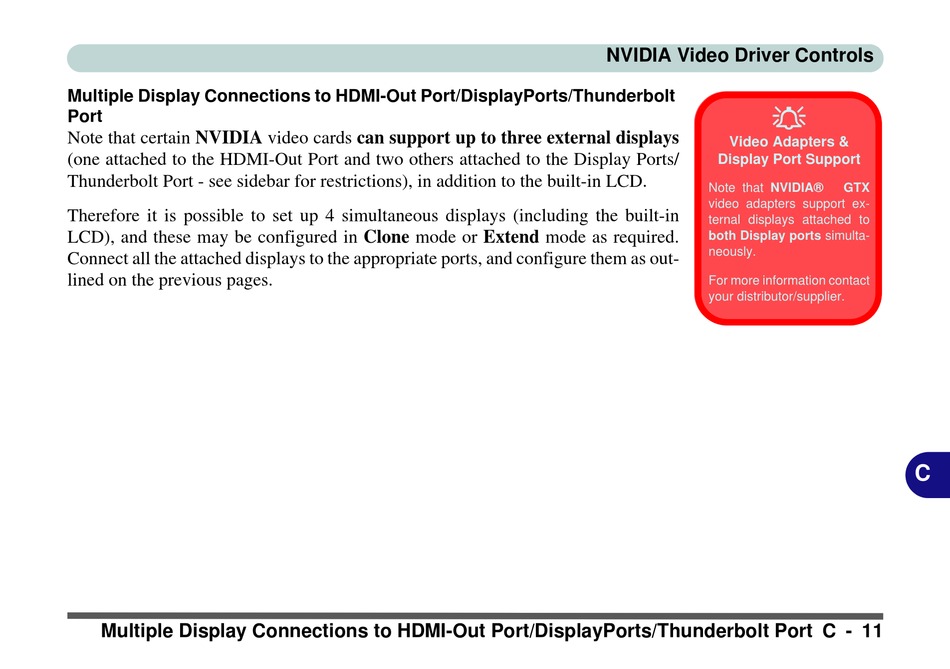

Multiple Display Connections to HDMI-Out Port/DisplayPorts/Thunderbolt
Port
Note that certain NVIDIA video cards can support up to three external displays
(one attached to the HDMI-Out Port and two others attached to the Display Ports/
Thunderbolt Port - see sidebar for restrictions), in addition to the built-in LCD.
Therefore it is possible to set up 4 simultaneous displays (including the built-in
LCD), and these may be configured in Clone mode or Extend mode as required.
Connect all the attached displays to the appropriate ports, and configure them as out-
lined on the previous pages.
Multiple Display Connections to HDMI-Out Port/DisplayPorts/Thunderbolt Port C - 11
NVIDIA Video Driver Controls

Video Adapters &
Display Port Support
Note that NVIDIA®
video adapters support ex-
ternal displays attached to
both Display ports simulta-
neously.
For more information contact
your distributor/supplier.
