Figure 8: Connecting Ac Power - Edge-Core ECS5610-52S Installation Manual

Chapter 2
| Installation Overview
Switch Installation Tasks
Task 3
Task 4
Install Power Modules and Power On
Install power modules, then power on. The switch supports up to two PSUs that
have a matching airflow direction as the installed fan tray.
Caution: The switch includes plug-in power supply and fan tray modules that are
installed into its chassis. All installed modules must have a matching airflow
direction. That is, all modules must have a front-to-back (F2B) airflow direction, or
all modules must have a back-to-front (B2F) airflow direction. The airflow direction
of PSUs and fan trays is indicated by labels on the modules.
Go to the chapter

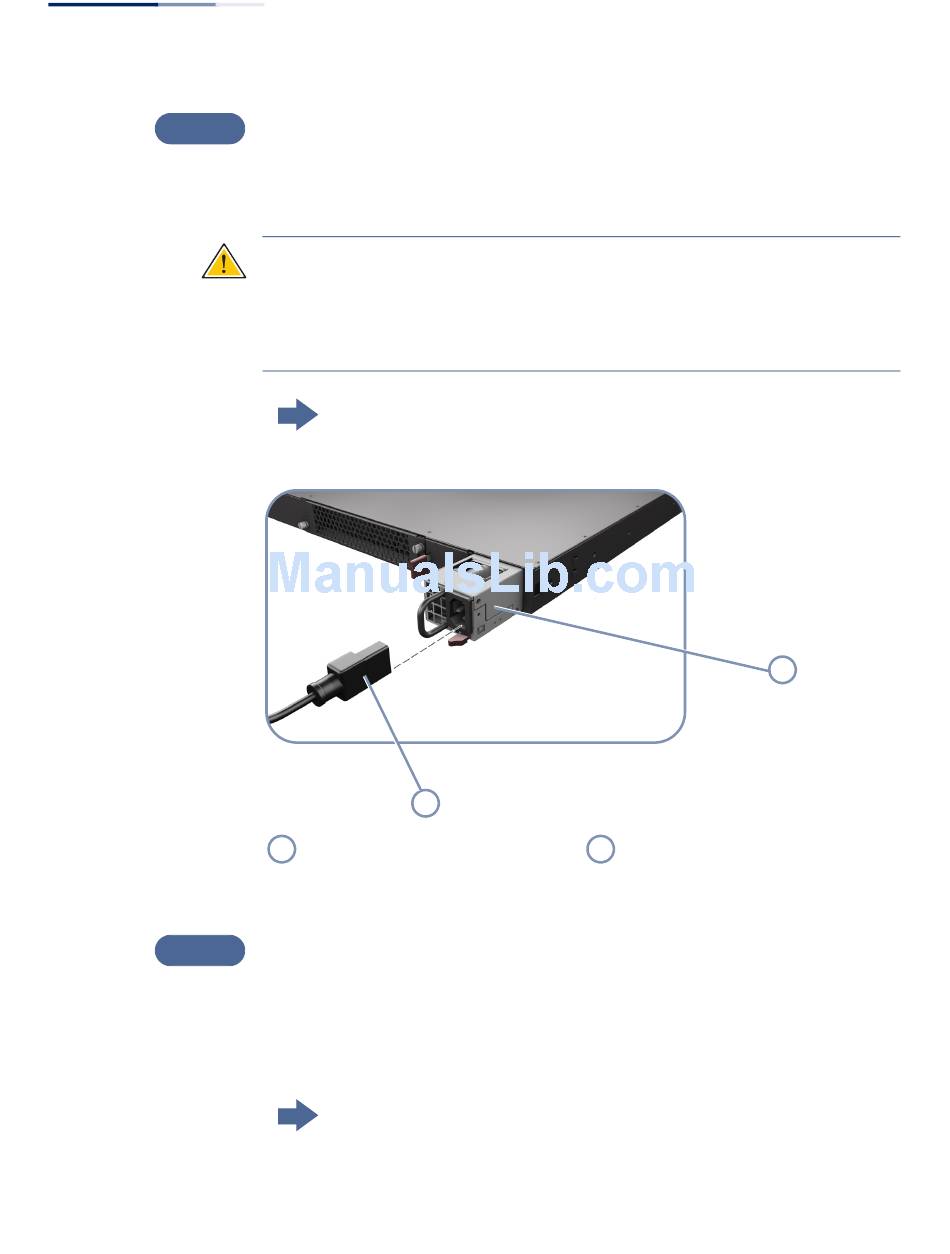

Figure 8: Connecting AC Power

2
1
Install one or two universal AC power
modules in the switch.
Verify Switch Operation
Verify basic switch operation by checking the system LEDs.
When operating normally, the PSU1/PSU2, Diag, and Fan LEDs should all be on
green. If any of the LEDs are on amber, see
Go to the section
"Power and Grounding"
2
"Diagnosing LED Indicators" on page 54
"Understanding the System Status LEDs"
– 20 –
1
Connect an external AC power source
to the modules.
