Chapter 4
| Power and Grounding
Power Supply Modules

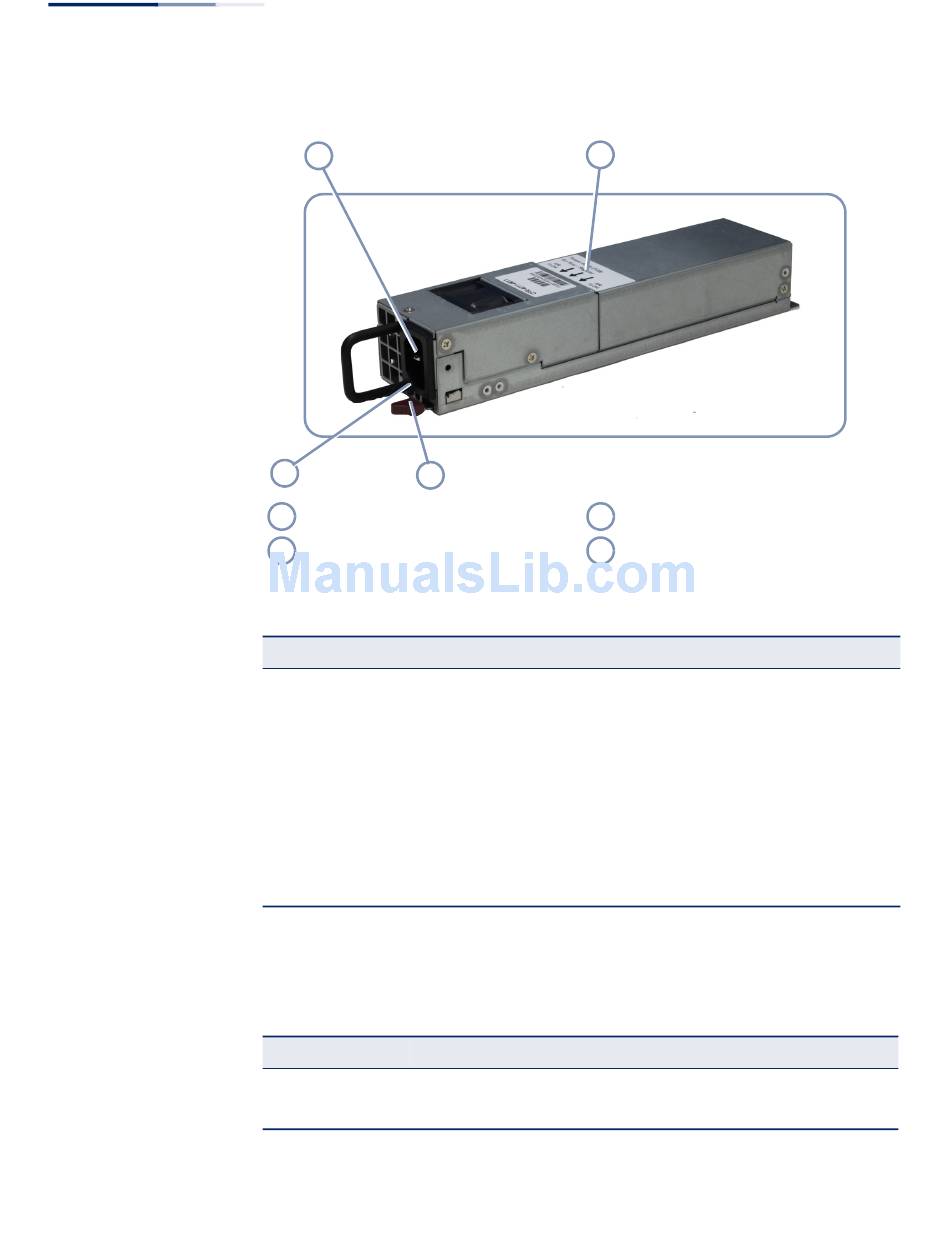

Figure 16: AC Power Supply Module

1
2
3
1
AC Power Socket
2
Power Supply Module LED

Table 3: AC Power Supply Module Specifications

Item
AC Input
DC Output
Power Supply
Power Consumption
Maximum Current
Size
The PSU also includes an AC power status LED. This LED is described in the
following table.

Figure 17: Power Supply Module LED

LED Condition
AC Green
Off
4
3
4
Description
100-240 VAC, 50-60 Hz, 6-3 A
+5 Vsb @ 3 A
12 Vdc @ 33 A
100-240 VAC, 50-60 Hz, auto-sensing; hot pluggable
350 Watts@ 220V/110V per module
258 Watts maximum
6 A @ 100 VAC
3 A @ 240 VAC
W x D x H: 220 x 54.5 x 40.25 mm (8.66 x 2.15 x 1.58 inches)
Status
External AC power is connected to the module.
External power is not connected or has failed.
– 30 –
Release Lever
Label indicates airflow direction of PSU
