Edge-Core ECS4620-28T Quick Start Manual

Quick Star t Guide

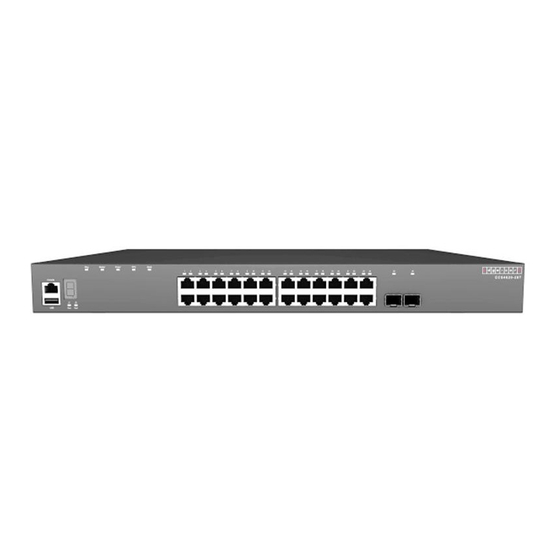

28/52-Port L3 Gigabit Ethernet Stackable Switch
ECS4620-28T | ECS4620-28P | ECS4620-28F | ECS4620-52T | ECS4620-52P
ECS4620-28T-DC | ECS4620-28F-DC | ECS4620-52P-2AC | ECS4620-28F-2AC

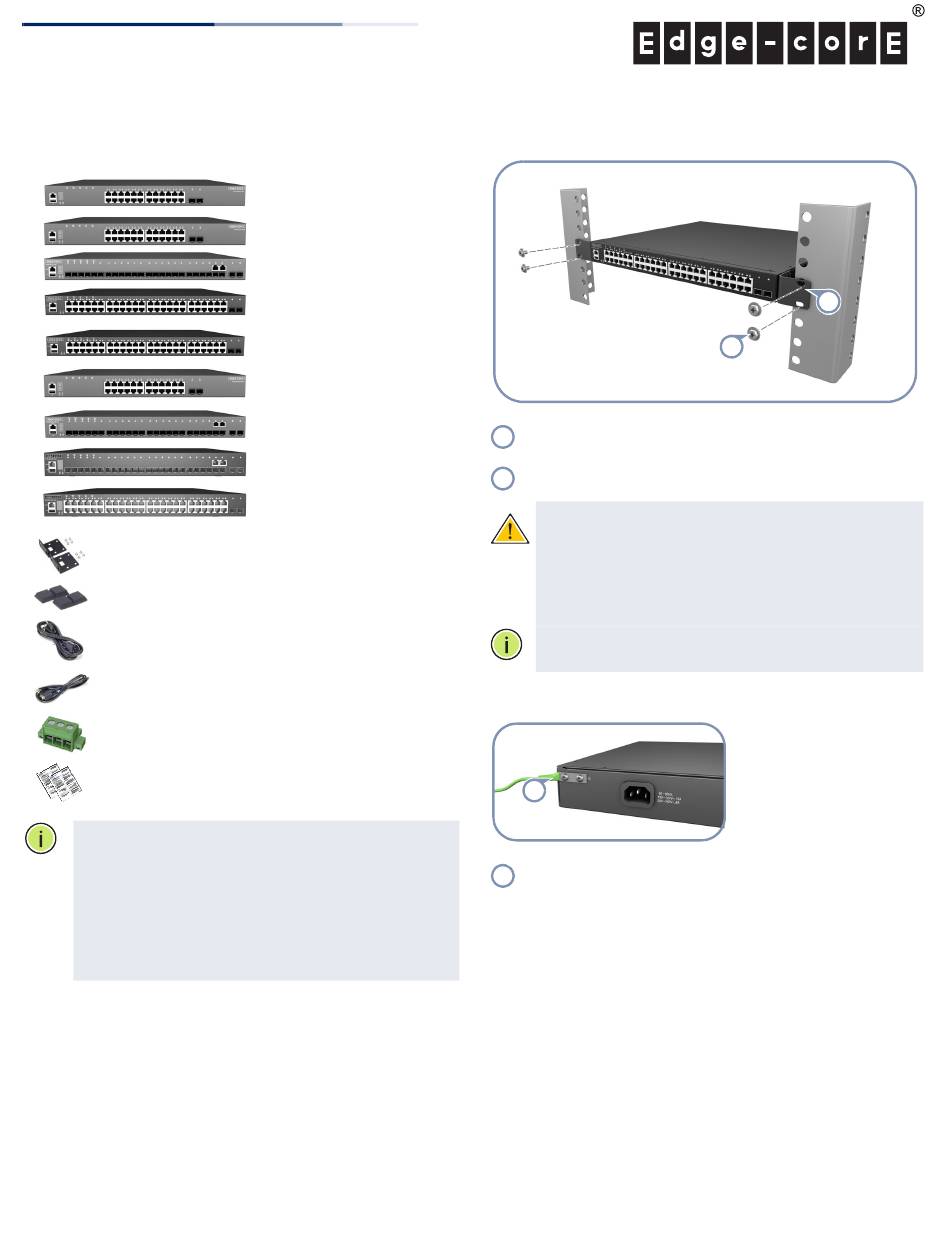

1. Unpack the Device and Check Contents
Rack Mounting Kit—two brackets and eight screws
Four adhesive foot pads
Power Cord—either Japan, US, Continental Europe
or UK
Console Cable—RJ-45 to DB-9
DC connector plug (ECS4620-28T-DC and ECS4620-
28F-DC only)
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note: The ECS4620 series switches are for indoor use only.
Note: For Safety and Regulatory information, refer to
the Safety and Regulatory Information document
included with the device.
Note: Other documentation, including the
Installation Guide, Web Management Guide, and CLI
Reference Guide, can be obtained from www.edge-
core.com.
*150200001752A_R05*
ECS4620-28T
ECS4620-28P
ECS4620-28F
ECS4620-52T
ECS4620-52P
ECS4620-28T-DC
ECS4620-28F-DC
ECS4620-28F-2AC
ECS4620-52P-2AC
– 1 –
2. Mount the Device
Attach the brackets to the device.
1
Use the screws and cage nuts supplied with the rack to
2
secure the device in the rack.
Caution: Installing the device in a rack requires two people.
One person should position the device in the rack, while the
other secures it using the rack screws.
Attention: L'installation du commutateur dans un rack
nécessite deux personnes. Une personne doit positionner le
commutateur dans le rack, tandis que l'autre le fixe à l'aide
des vis de montage.
Note: The device can also be installed on a desktop or shelf
using the included adhesive rubber foot pads.
3. Ground the Device
1
Ensure the rack on which the device is to be mounted is
1
properly grounded and in compliance with ETSI ETS 300 253.
Verify that there is a good electrical connection to the
grounding point on the rack (no paint or isolating surface
treatment).
1
2
E122022-AP-R05
150200001752A
