Edge-Core ECS1100-5P Quick Start Manual

Quick Start Guide
L2 Gigabit Ethernet Web Managed PoE Switches
ECS1100-5P | ECS1100-10HP | ECS1100-28HP
1.
L2 Gigabit Ethernet Web Managed PoE Switch
2.
Rack mounting kit—2 brackets and 6 screws
3.
Power cord

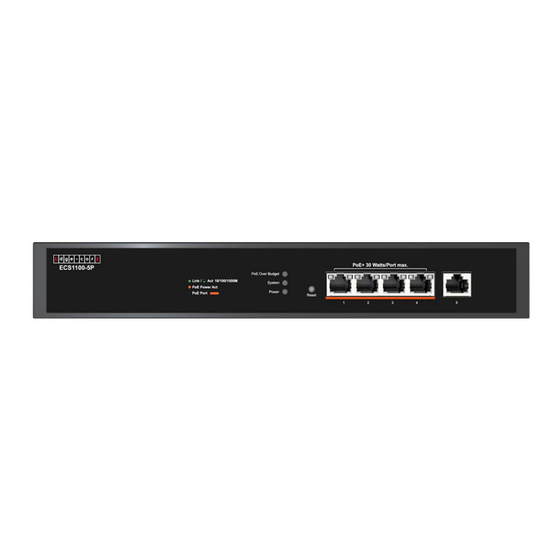

ECS1100-5P
ECS1100-10HP
ECS1100-28HP
8
1. System LEDs
2.
Reset button
3.
4 x 10/100/1000M RJ-45 PoE+ (30 W) ports
4.
1 x 10/100/1000M RJ-45 port
5.
4 x 10/100/1000M RJ-45 PoE++ (90 W) ports
6. 4 x 10/100/1000M RJ-45 PoE+ (30 W) ports
1.
PoE Over Budget: Red (PoE budget exceeded)
2.
System: Green (OK)
3. Power: Green (OK)
4.
Reset Button: Press for 10 seconds to reset to factory defaults

Package Contents

1
1 2 3 4
5 6 7
9 10
System/Port LEDs & Buttons
1
2
4
3
2
4.
Four adhesive rubber feet
5.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information

Overview

11 12
7. 2 x 100/1000M SFP ports
8.
8 x 10/100/1000M RJ-45 PoE++ (90 W) ports
9.
16 x 10/100/1000M RJ-45 PoE+ (30 W) ports
10.
4 x 100/1000M SFP ports
11.
Grounding point
12. AC power socket
5 5
5.
RJ-45 Ports: Green/Blinking (link/activity), Amber (PoE)
6.
SFP Ports: Green/Blinking (link/activity)
– 1 –
wifi.edge-core.com
3 4
6 6
5
E122023-CS-R02
