Grounding the Chassis

How to Connect to AC Power

The switch chassis must be connected to ground to ensure proper operation and to
meet electromagnetic interference (EMI) and safety requirements.
The switch chassis is connected internally to 0 V, which is then grounded through
an installed AC PSU when it is connected to a grounded AC power outlet by an AC
power cord.
There are no grounding points on the switch that require a connection to a rack
ground or other earth ground.
To supply AC power to the switch, first verify that the external AC power supply can
provide 100 to 240 VAC, 50-60 Hz, 6-3 A minimum.

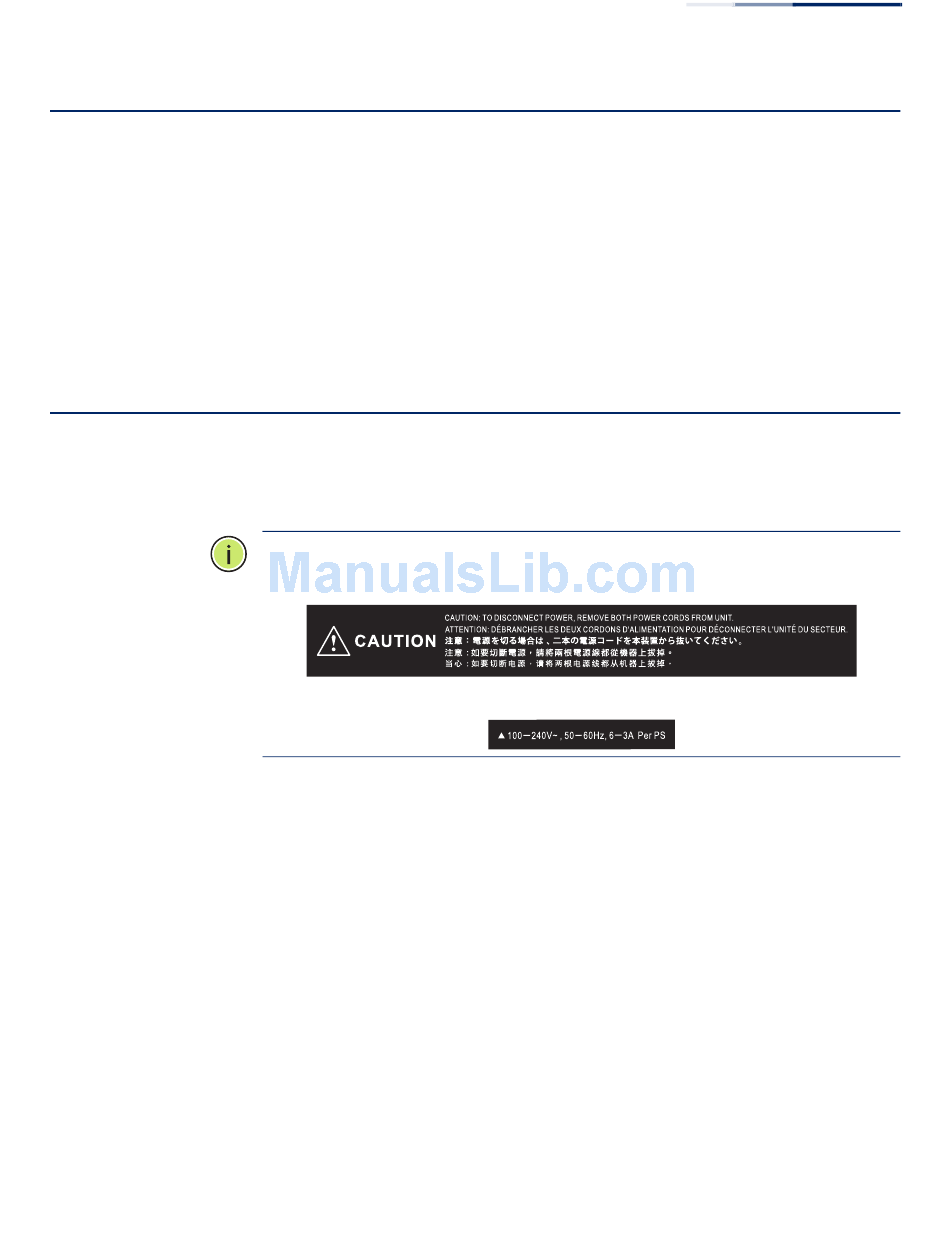

Note: For electrical safety purposes, please pay attention to the following warning
notices, printed on the switch unit.
To connect the switch to a power source:
1.
Install one or two AC PSU modules. Slide them into the PSU slots at the rear of
the switch until they click into place. (Push the red release lever to remove a
module from the switch.)
