Figure 18: Ac Psu And Power Socket - Edge-Core ECS5610-52S Installation Manual

Chapter 4
| Power and Grounding
How to Connect to AC Power

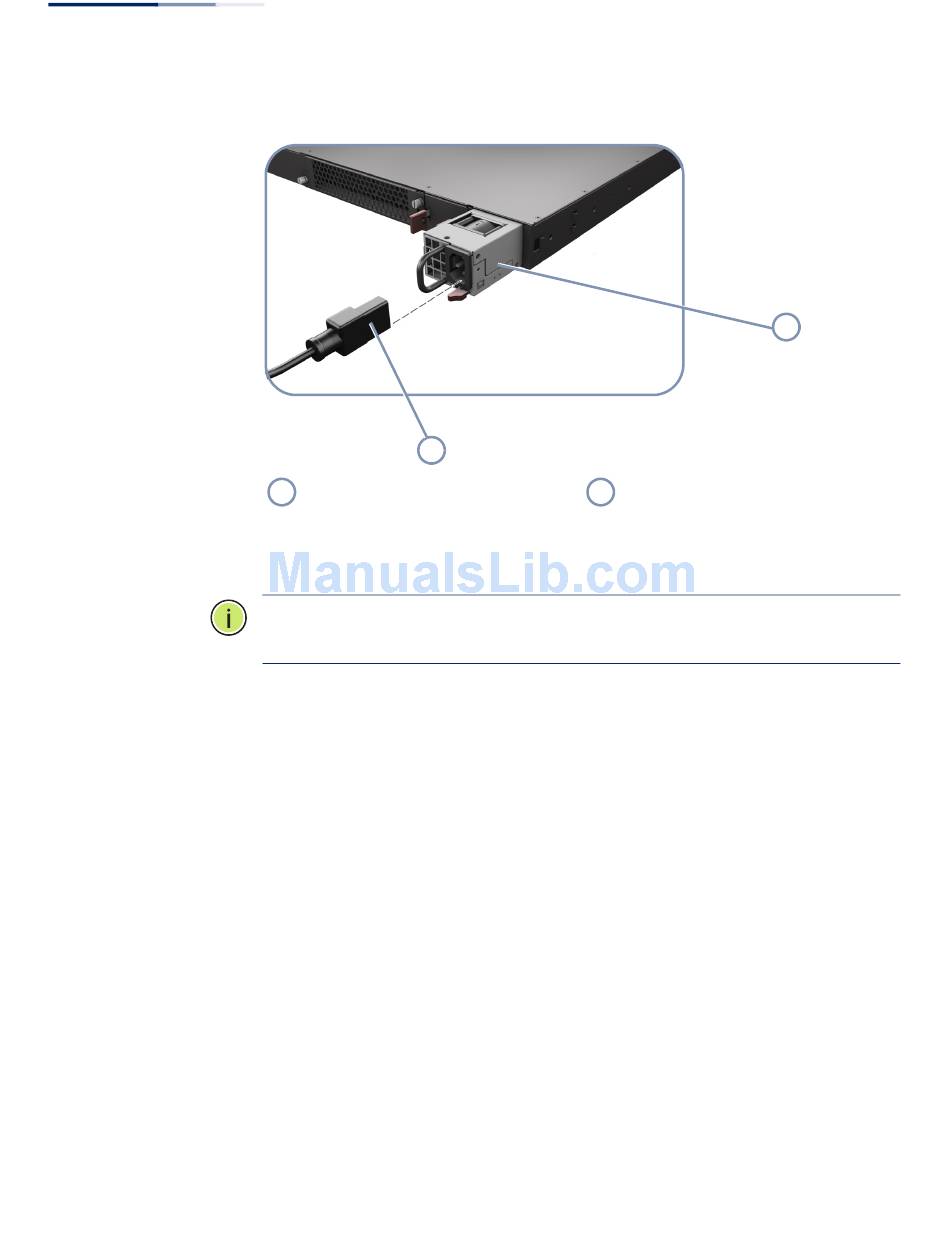

Figure 18: AC PSU and Power Socket

1
1
AC Power Cord
2.
Plug the power cord into a grounded, 3-pin, AC power source.
Note: For international use, you may need to change the AC power cord. You must
use a cord set that has been approved for the socket type in your country.
3.
Insert the plug on the other end of the power cord directly into the socket on
the AC PSU.
4.
Check the LED indicators on the PSU and switch front panel as the unit is
powered on to verify that power is being received. If not, recheck the PSU and
power cord connections at the AC supply source and PSU.
5.
If you have installed a second PSU, repeat steps 2 to 4.
2
– 32 –
2
AC PSU
