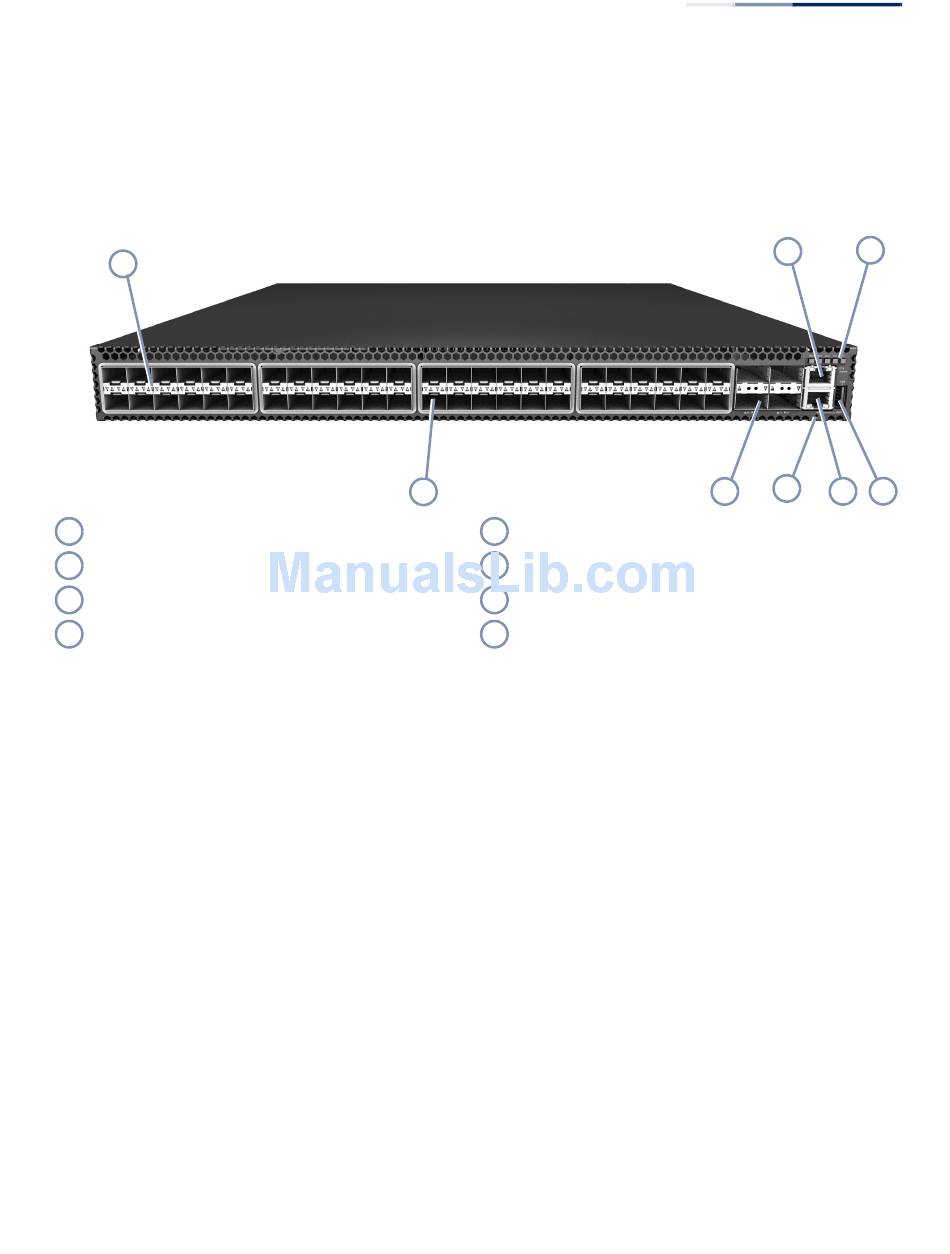

Figure 1: Front Panel
1
1
Port LEDs
2
10G SFP+ Slots
3
40G QSFP+ Slots
4
Reset Button
The ECS5610-52S switch consists of several key hardware components. This manual
describes each specific component, or related components, together with their
installation requirements and procedures in each chapter. To understand each
component in detail, refer to the relevant section.
2
10G SFP+ Slots
The switch contains 48 Small Form Factor Pluggable Plus (SFP+) transceiver slots
that support 10G Ethernet SFP+ transceivers, or 1G Ethernet SFP transceivers. For
more information, see
"How to Connect to SFP/SFP+ Fiber Optic Ports" on page
40G QSFP+ Slots
The switch contains four Quad Small Form Factor Pluggable Plus (QSFP+)
transceiver slots that operate up to 40 Gbps full duplex. For more information, see
"How to Connect to QSFP+ Fiber Optic Ports" on page
Management Port
The RJ-45 port labeled "Management" provides a dedicated 1000BASE-T
management interface. For more information, see
Management Port" on page
Console Port
The RJ-45 port labeled "Console" provides an out-of-band serial connection to a
terminal or a PC running terminal emulation software. The port can be used for
performing switch monitoring and configuration. For more information, see
to Connect to the Console Port" on page
5
RJ-45 Management Port
6
USB Port
7
System LEDs
8
RJ-45 Console Port
49.
