Chapter 2
| Installation Overview
Switch Installation Tasks
Task 6
For information on initial switch configuration:
Refer to the Administrator's Guide.
Install Transceivers and Connect Cables
Install SFP+ or QSFP+ transceivers and connect network cables to port interfaces:
◆
Connect DAC cables to the SFP+/QSFP+ slots. Or first install SFP+/QSFP+
transceivers and then connect fiber optic cabling to the transceiver ports.
◆
For the RJ-45 Management port, use 100-ohm Category 5, 5e or better cable for
1000BASE-T connections.
As connections are made, check the port status LEDs to be sure the links are valid.
Go to the chapter

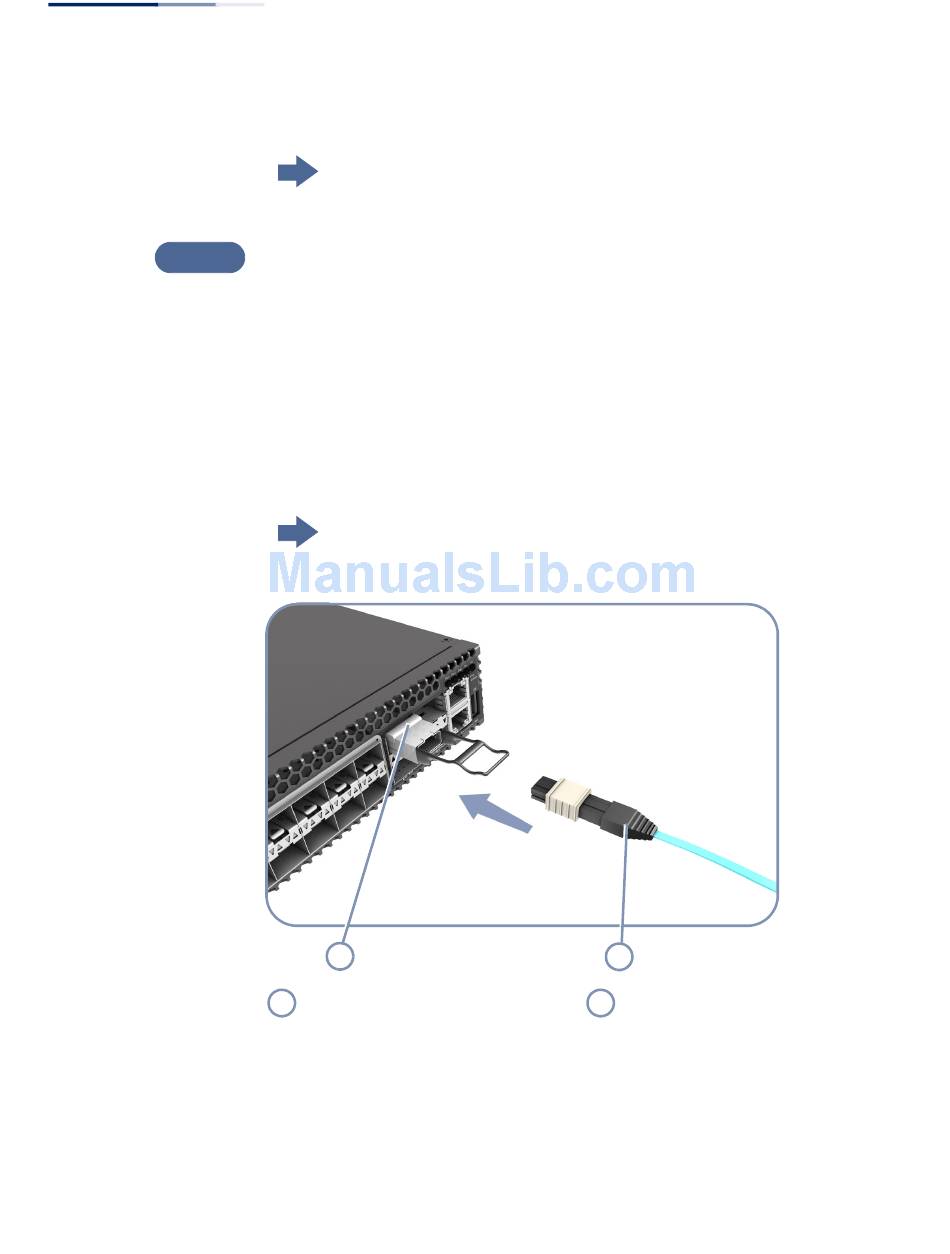

Figure 11: Making a Connection to a QSFP+ Transceiver

1
1
Install QSFP+ transceivers.
"Port Connections"
2
2
– 22 –
Connect fiber optic cabling to the ports.
