10.3 Remote Monitoring with E-Map

You can use the Remote E-Map to monitor and manage the cameras and I/O devices
connected to the GV-Compact DVR V2.
Creating an E-Map for GV-Compact DVR V2
With the E-Map Editor, you can create an E-Map for the cameras and I/O devices connected
to the GV-Compact DVR V2. The E-Map Editor is available in certain applications, e.g. Main
System and E-Map Server. The following is an example of running the E-Map Editor included
in the Main System.
1. Go to Windows Start menu, point to Programs, select GV folder and click E-Map Editor.
2. To create an E-Map, click the Add Map button on the toolbar. A New Map file appears.
3. Double-click the New Map file, and click the Load Map button on the toolbar to import a
graphic file.
4. To create a host, click the Add Host button on the toolbar and select Add Compact DVR.

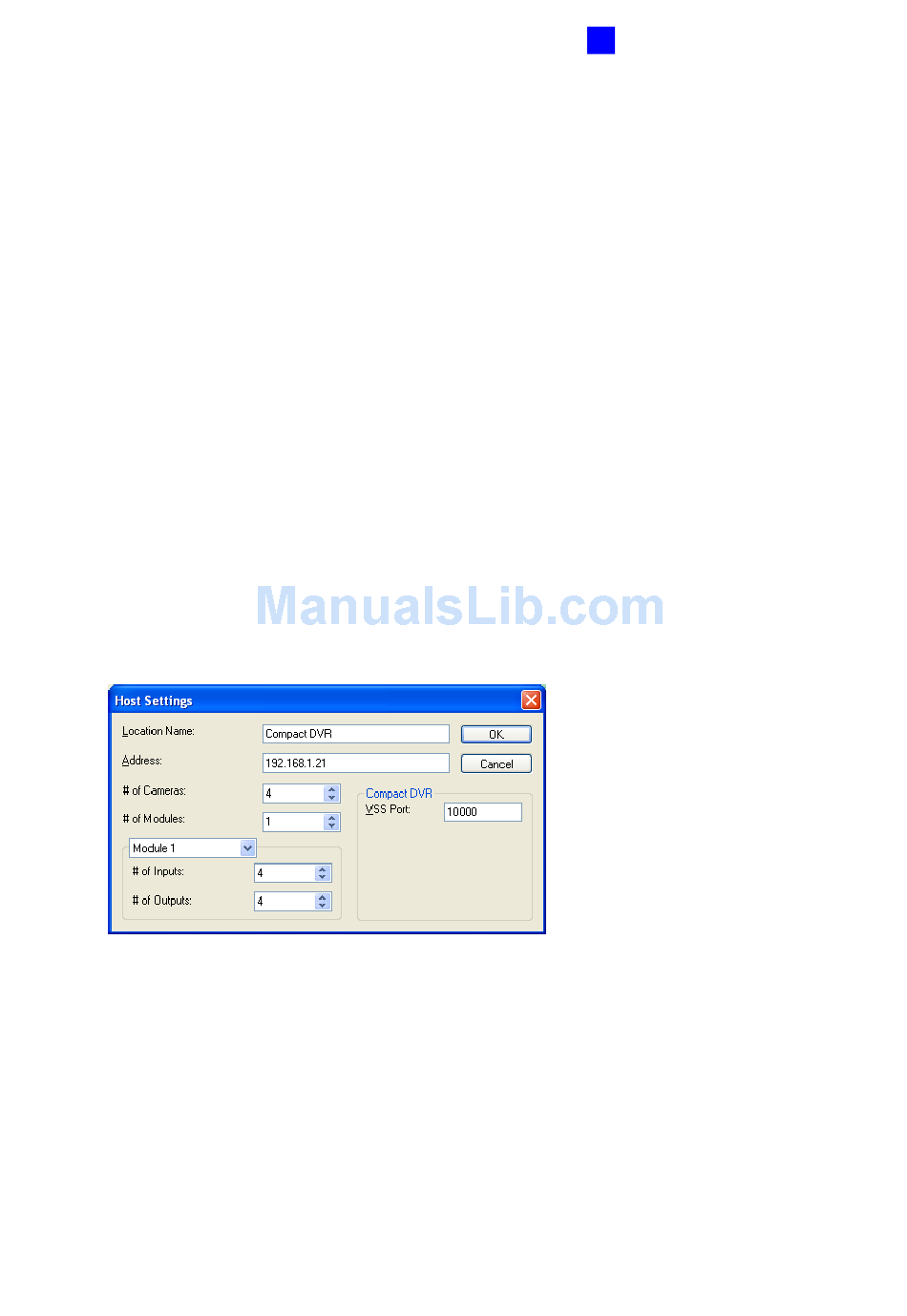

5. Right-click the created New Host in the Host View, and select Host Settings. This dialog
box appears.
6. Give the GV-Compact DVR V2 a location name, and type its IP address (or domain
name). Keep the default VSS port as 10000, or modify it to match that of GV-Compact
DVR V2.
7. Click OK to save the settings.
8. Expand the created host folder. Drag and drop the icons of cameras and I/O devices onto
the imported E-Map.
9. Close the E-Map Editor. Click Yes when you are promoted to save the file.
Figure 10-9
DVR Configurations
10
139
