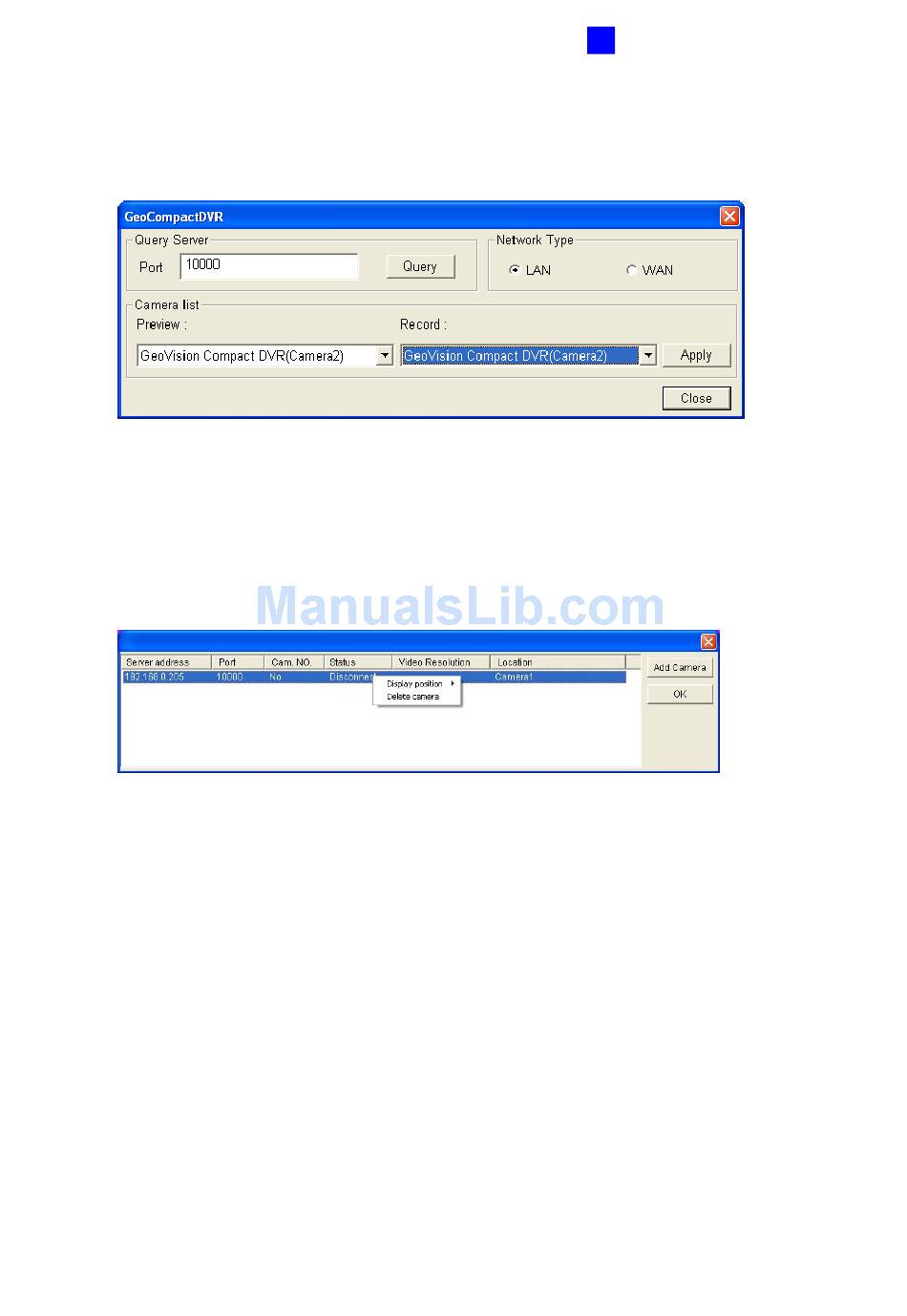

4. Type the IP address, username and password of the GV-Compact DVR V2. Modify the
default HTTP port if necessary. Select GeoVision Compact DVR from the Brand drop-
down list. This dialog box appears.
5. In the Network Type section, select your network environment WAN or LAN.
6. Click Query to detect the GV-Compact DVR V2.
7. In the Camera List section, select one camera for viewing and recording.
8. Click Apply, and then Close to exit the dialog box. The device information is displayed.
9. Click the device information, and select Display Position to map the IP camera to a
channel on the GV-System.
10. The Statue column now should display "Connected". Click OK.
Figure 10-5
Figure 10-6
