10.1 Setting up IP Cameras

To set up IP cameras on the GV-System, follow these steps:

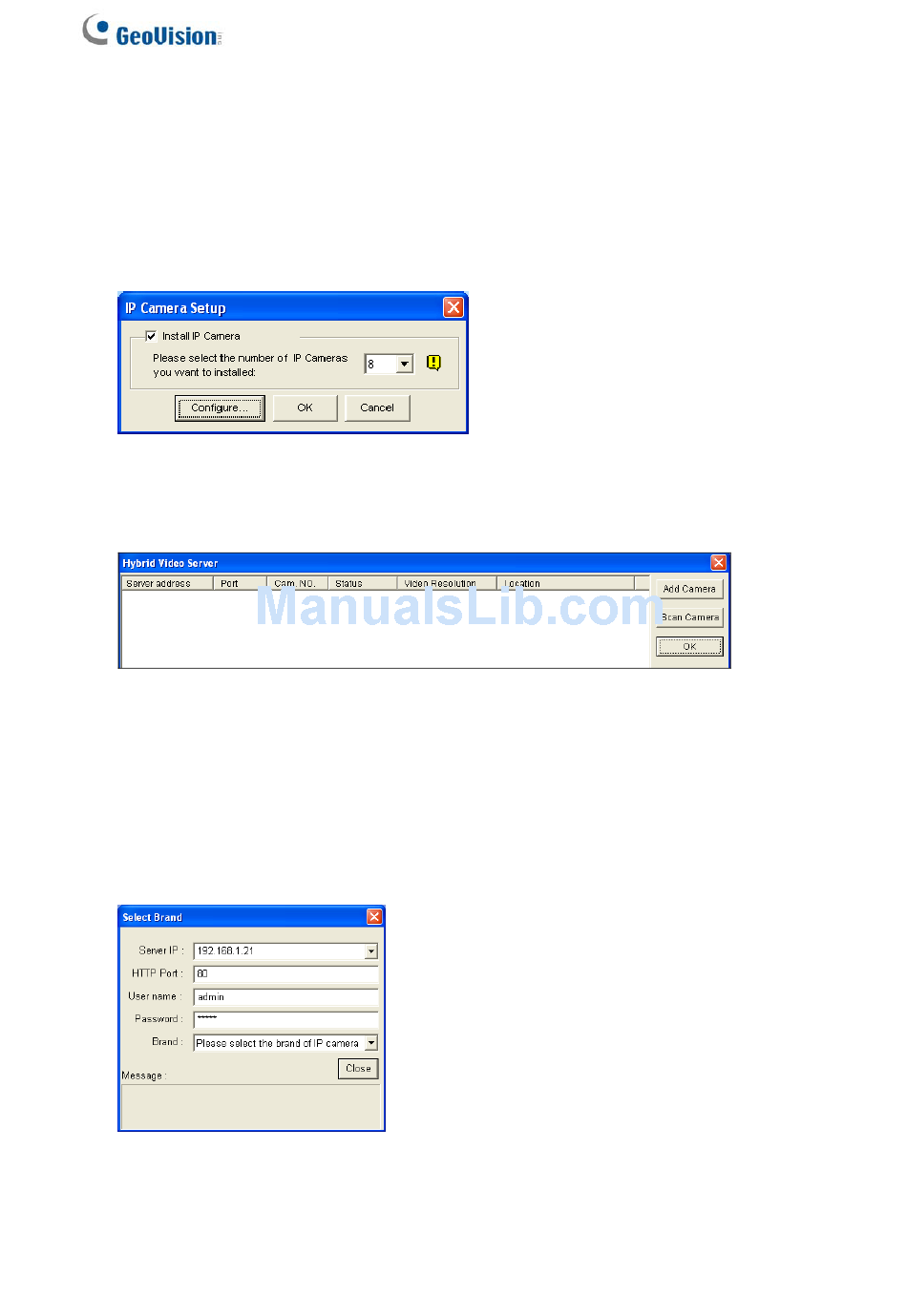

1. On the main screen, click the Configure button, select General Setting, select Camera
/ Audio Install and click IP Camera Install. This dialog box appears.
Figure 10-2
2. Check Install IP Camera, and select the number of IP Cameras you want to link to, and
click Configure. This dialog box appears.
•
To automatically set up the camera, click Scan Camera to detect any GV IP devices
on the LAN.
•
To manually set up the camera, click Add Camera.
The following steps are the example of manual setup.
3. Click Add Camera. This dialog box appears.
Figure 10-4
134
Figure 10-3
