GeoVision GV-Compact DVR V2 User Manual page 103

To enable the GV-GIS connection:
1. Activate Link: Enable the monitoring through GV-GIS.
2. Host Name or IP Address: Type the host name or IP address of GV-GIS.
3. Port Number: Match the communication port on GV-GIS. Or keep the default value 3356.
4. User Name: Type a valid user name to log into GV-GIS.
5. Password: Type a valid password to log into GV-GIS.
6. Click Apply. The Connection Status should display "Connected" and connected time.
These options you can also find on the GV-GIS setting page:
Cease motion detection messages from: Stops notifying GV-GIS of motion detection
from the selected camera(s).
Cease input trigger messages from: Stops notifying GV-GIS of input trigger from the
selected input(s).
96

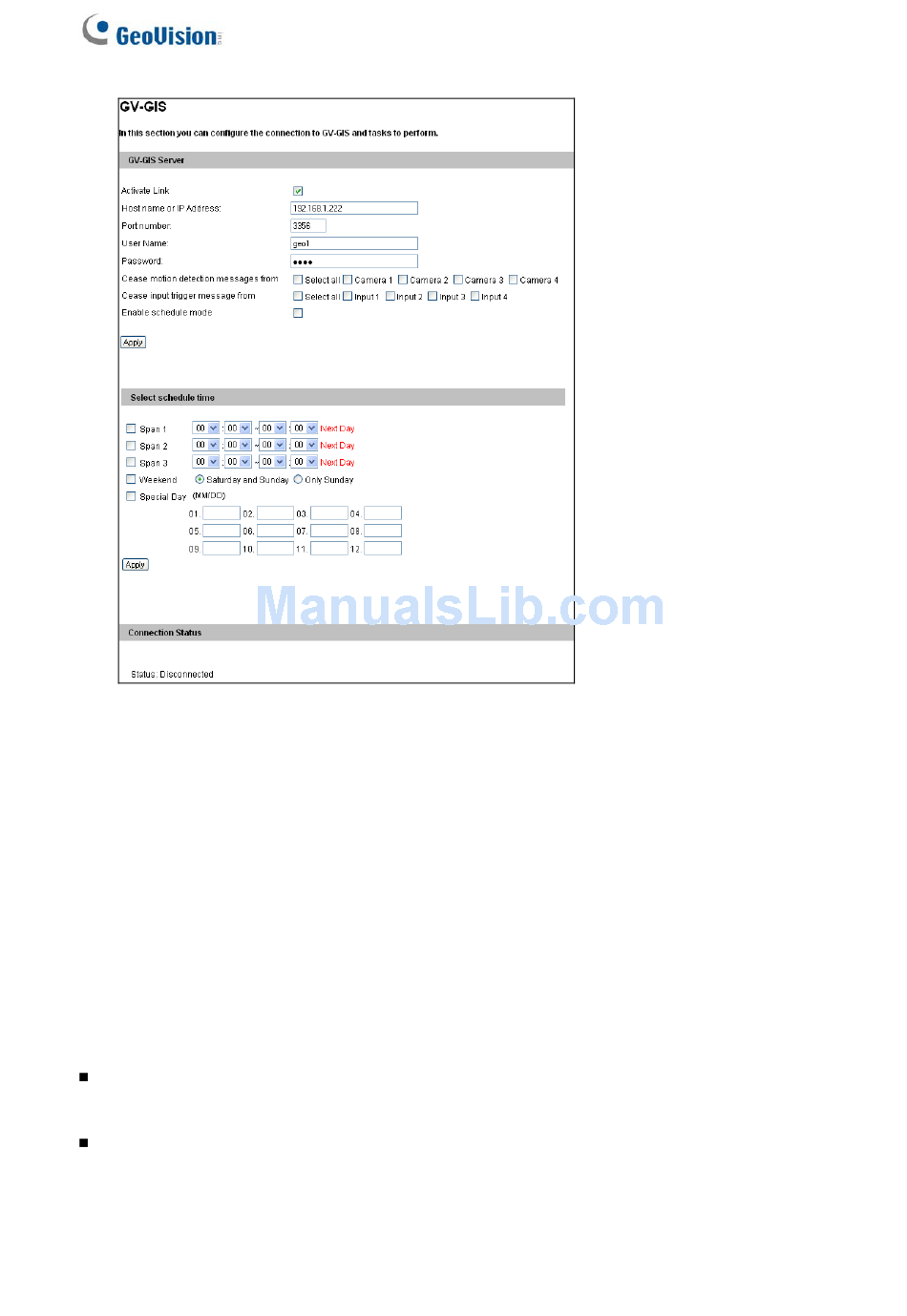

Figure 4-16
