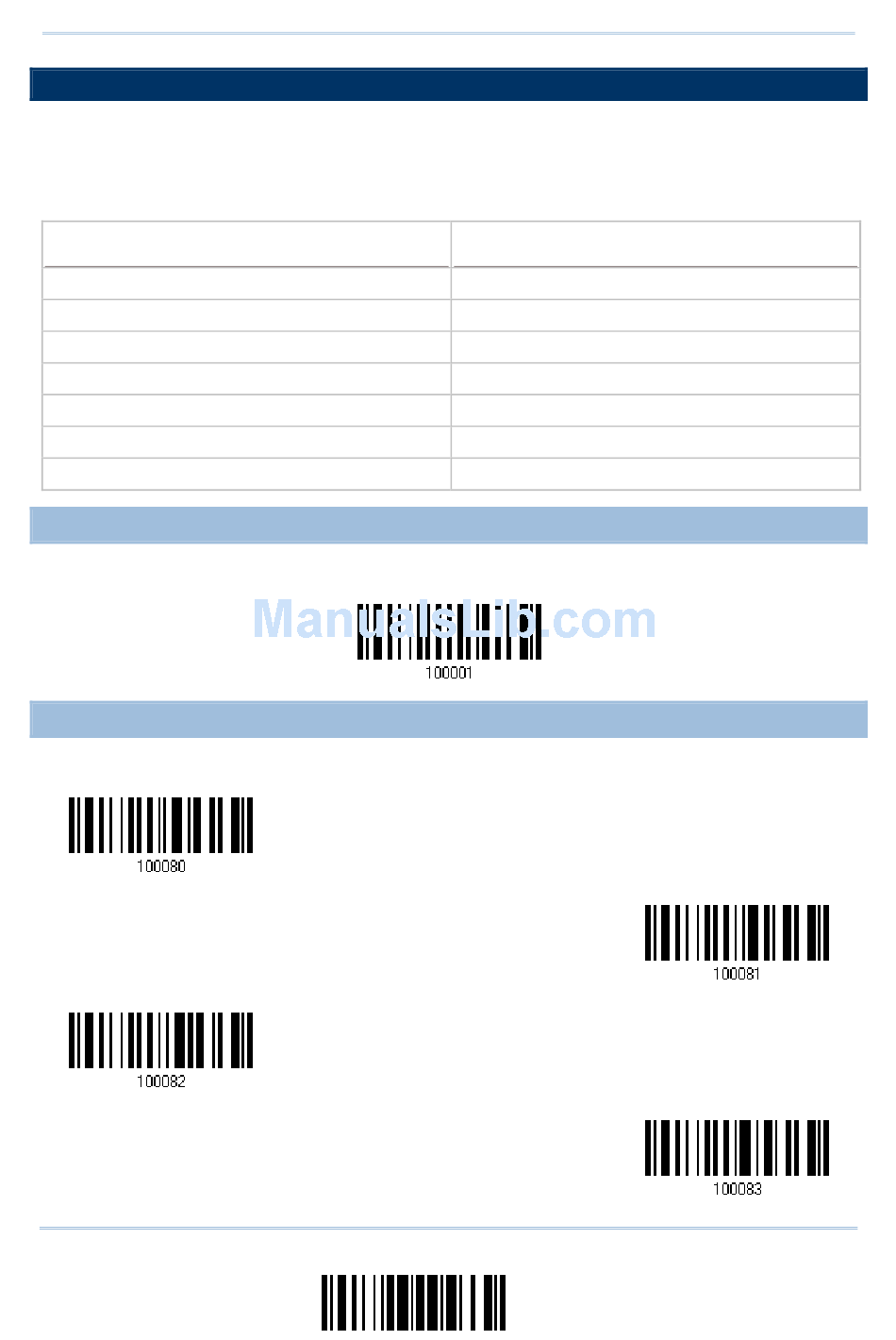

2.4 RS-232 VIA 3656
Use the RS-232 cable to connect the scanner via 3656 to the serial port of PC, and
connect the power supply cord. The associated RS-232 parameters must match those
configured on the computer. You may run HyperTerminal.exe on your computer, and the
scanned data will be transmitted to the computer.
RS-232 Settings
Baud Rate, Data Bit, Parity, Stop Bit
Flow Control
Inter-Character Delay
Inter-Function Delay
Send "NR" to Host
ACK/NAK Timeout
ACK/NAK Beep

2.4.1 ACTIVATE RS-232 INTERFACE

2.4.2 BAUD RATE

*115200 bps
38400 bps
Defaults
9600 bps, 8 bits, No parity, 1 stop bit
None
0 (ms)
0 (ms)
Disable
0
Disable
Activate RS-232 Interface
Chapter 2 Selecting Output Interface
57600 bps
19200 bps
Update
63
