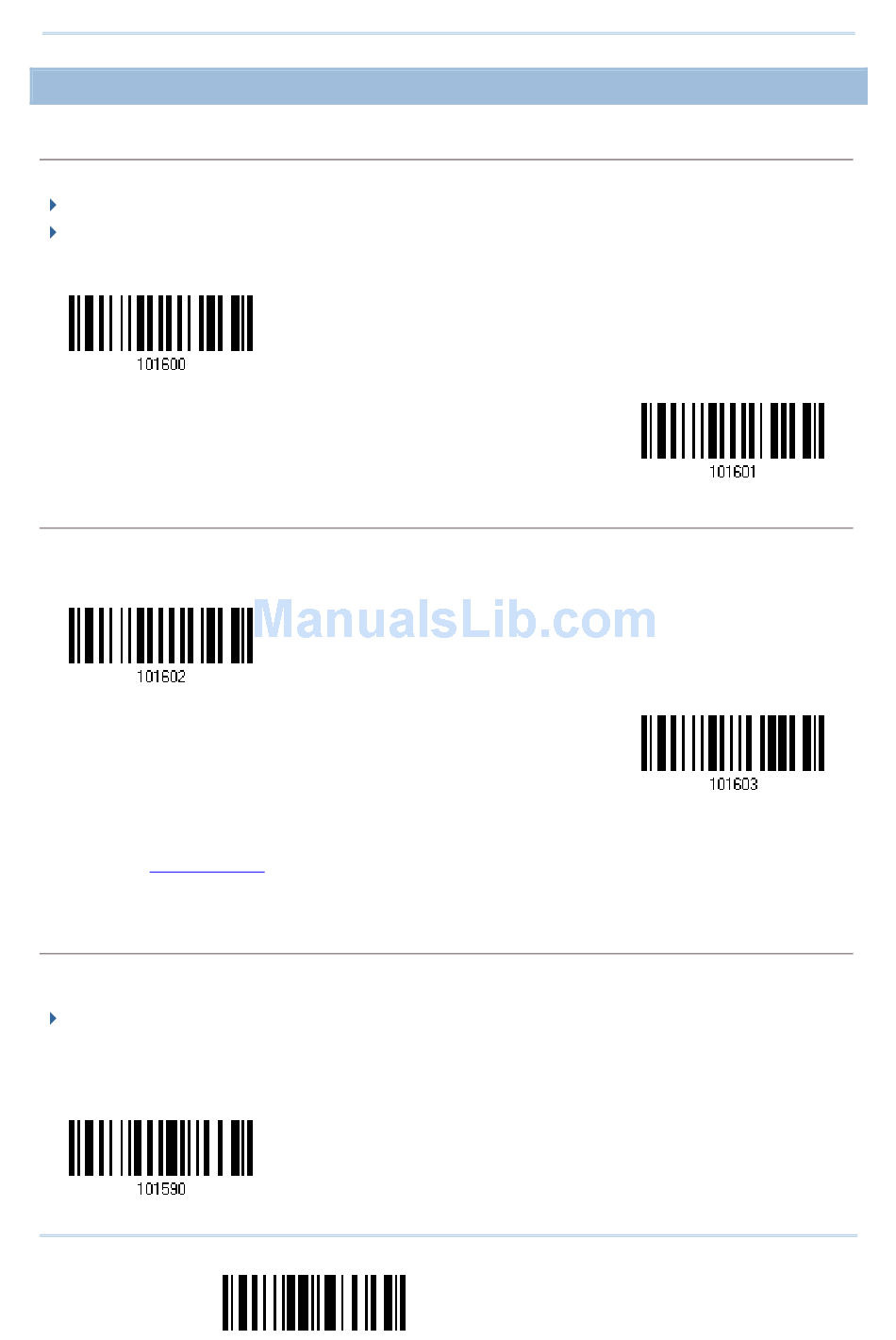

6.2.4 DIVIDE DATA INTO FIELDS

Start Position
Data can be divided into fields in one of the following direction –
from head (F1) to tail (F5)
from tail (F1) to head (F5)
*From Head
Field Adjustment
You may apply equal length to all fields, if necessary. It will add "Space" (0x20) to field when data
is found shorter than specified.
*No Adjustment
1. Read the label above to adjust field by length.
2. Read the "Decimal
3. Read the "Validate" label on the same page to complete this setting.
Total Number of Fields
Data can be divided into at most 6 fields; each of them is numbered from F1 to F6 accordingly.
However, only F1~F5 can be configured.
The total number of fields must be specified correctly. If three fields are configured for the
editing format, the data characters after F3 will be assigned to F4 automatically. This feature is
quite useful especially when data of variable lengths is processed by editing formats.
*One Field
158
User Guide
Value" label on page 189 for the desired field length.
End Programming Format
From Tail
Set Length to adjust
fields ... (*0)
