FAIRCHILD PT-19

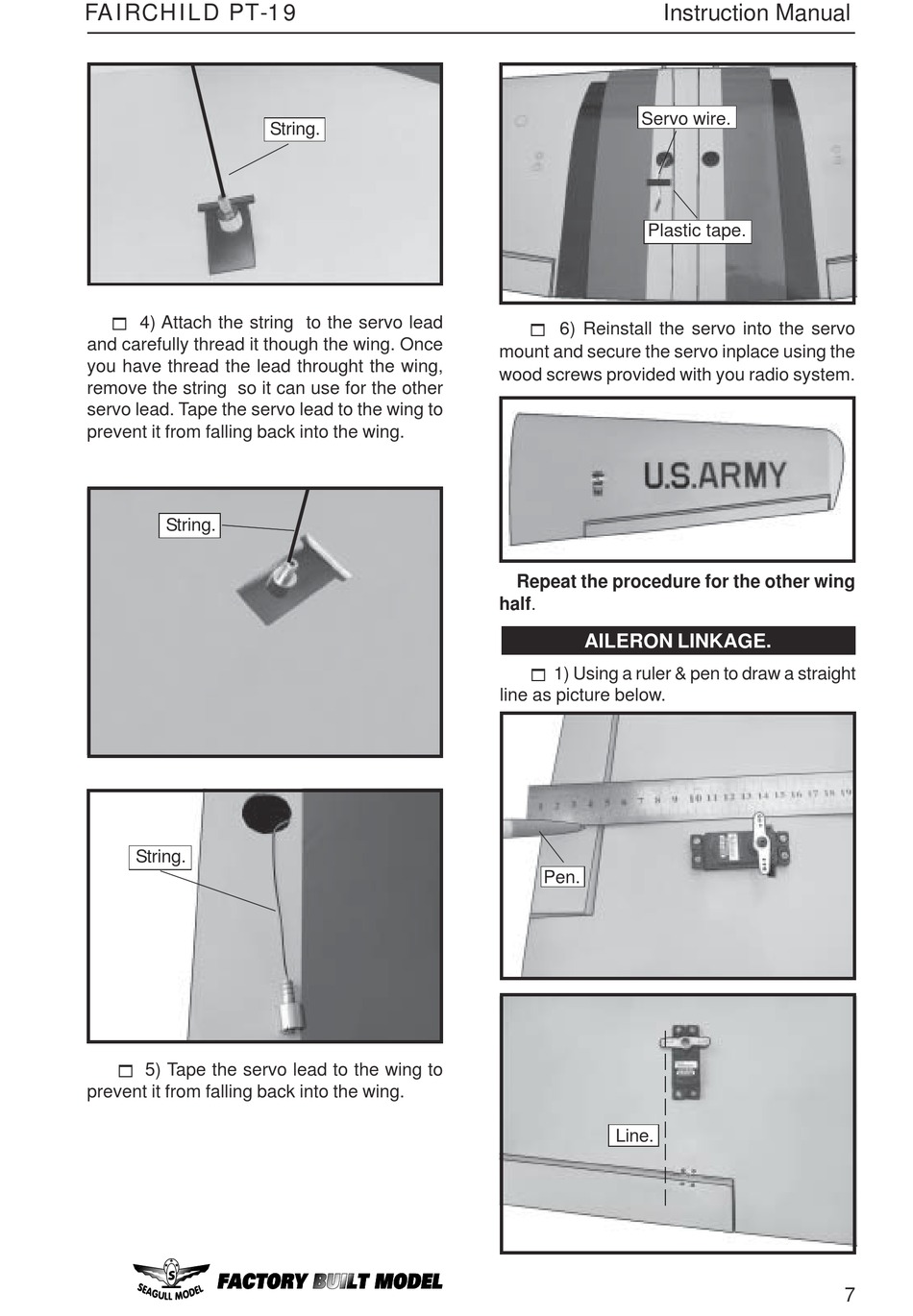

! 4) Attach the string to the servo lead
and carefully thread it though the wing. Once
you have thread the lead throught the wing,
remove the string so it can use for the other
servo lead. Tape the servo lead to the wing to
prevent it from falling back into the wing.
String.
String.
! 5) Tape the servo lead to the wing to
prevent it from falling back into the wing.
String.
Instruction Manual
Servo wire.
Plastic tape.
! 6) Reinstall the servo into the servo
mount and secure the servo inplace using the
wood screws provided with you radio system.
Repeat the procedure for the other wing
half.

AILERON LINKAGE.

! 1) Using a ruler & pen to draw a straight
line as picture below.
Pen.
Line.
7
