BOOMERANG EP

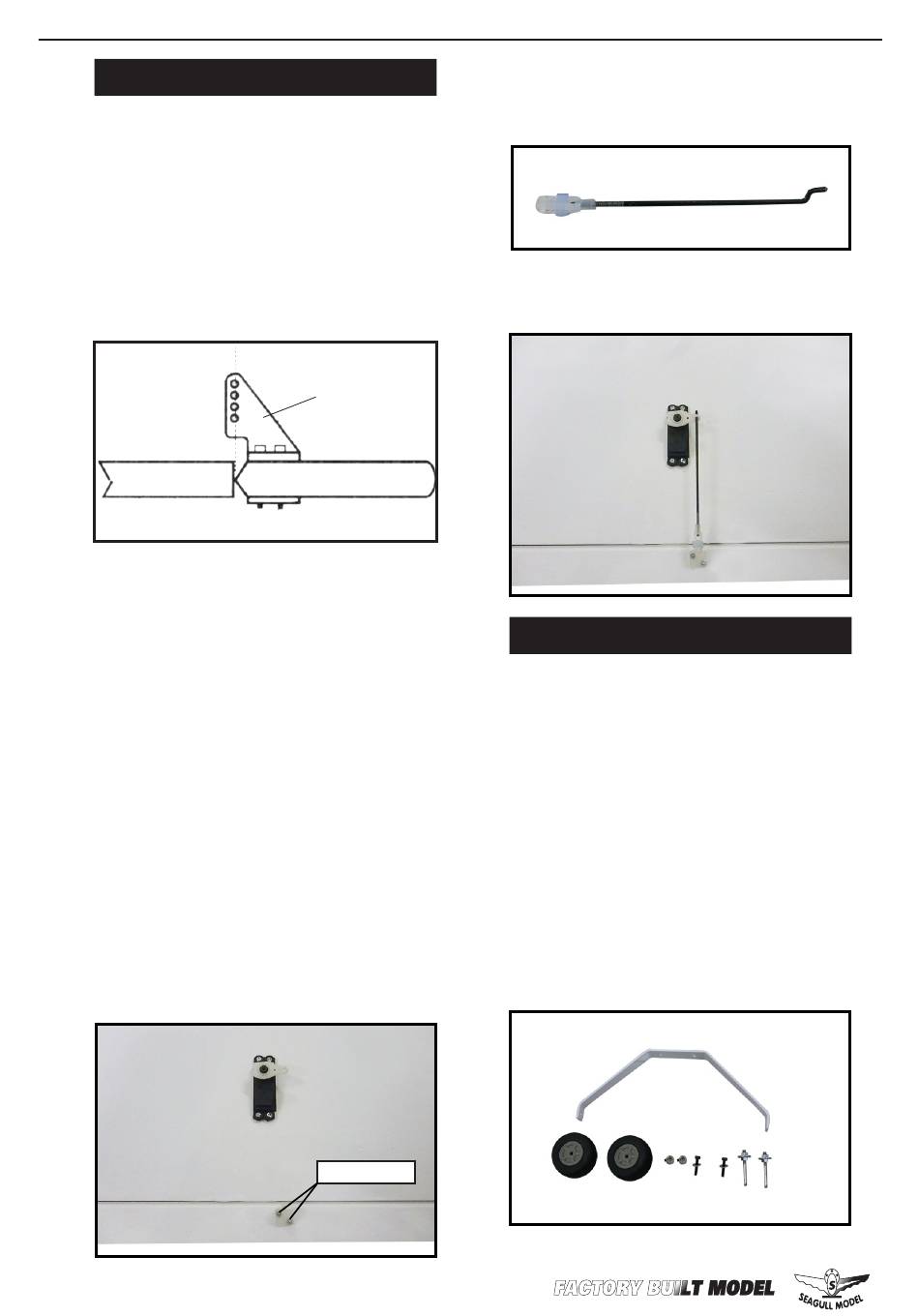

AILERON LINKAGE.

1) Using a ruler & pen to draw a straight line
as below picture.
2) Locate the two nylon control horns, two
nylon control horn backplates and four ma-
chine screws.
3) Position the aileron horn on the bottom
side of aileron. The clevis attachment holes
should be positioned over the hinge line.
Mounting Screws.
4) Using a 1mm drill bit and the control
horns as a guide, drill the mounting holes
through the aileron halves.
5) Mount the control horns by inserting the
screws through the control horn bases and
aileron halves, then into the mounting back-
plates. Do not overtighten the screws or the
backplates may crush the wood.
6) Thread one nylon adjustable control horn
onto each aileron control rod. Thread the
horns on until they are flush with the ends of
the control rods.
7) With the aileron servo centered and the
aileron even with the trailing edge of the
wing attach the clevis to the control horn.
Mark the control wire where it crosses the
servo arm hole.
6
Control Horn.
Mounting Plate.
2x15mm
Instruction Manual.
8) Make a 90-degree bend at the mark and
cut off the excess wire leaving 10mm past the
bend.
9) Connect the linkage as shown and secure
the control wire with a wire keeper.

INSTALLING THE LANDING GEAR.

1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount the
main landing gear to the fuselage.
3) Place the fuselage inverted on the work-
bench in a suitable stand. Set the landing
gear in place and use a screwdrive to secure
the landing gear to the fuselage using bolts
M4x20mm and washers. Make sure to use
the threadlock on the bolts so they don't vi-
brate loose.
