Epson SureColor T-Series User's Guide

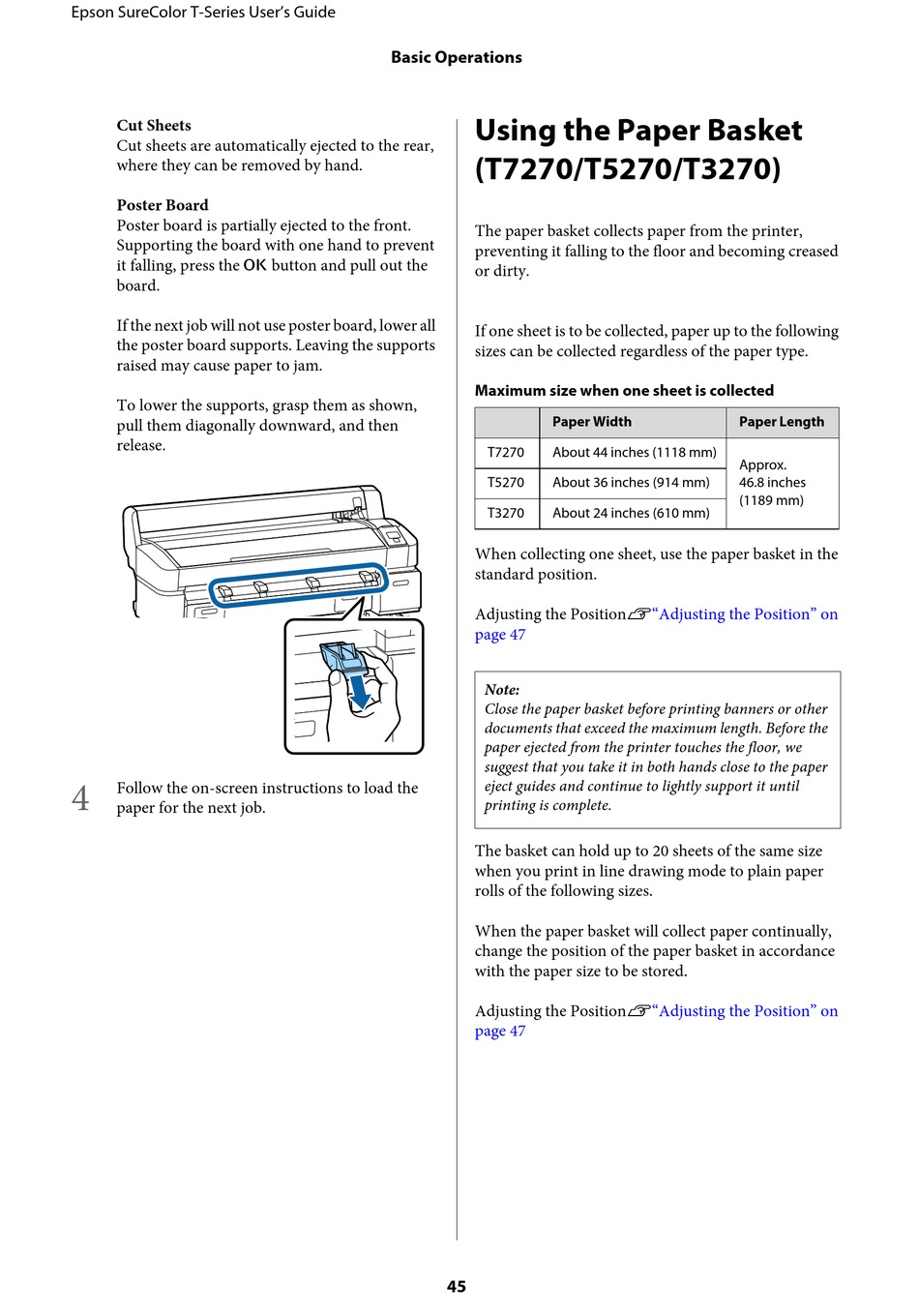

Cut Sheets
Cut sheets are automatically ejected to the rear,
where they can be removed by hand.
Poster Board
Poster board is partially ejected to the front.
Supporting the board with one hand to prevent
it falling, press the Z button and pull out the
board.
If the next job will not use poster board, lower all
the poster board supports. Leaving the supports
raised may cause paper to jam.
To lower the supports, grasp them as shown,
pull them diagonally downward, and then
release.
Follow the on-screen instructions to load the
4
paper for the next job.
Basic Operations
Using the Paper Basket
(T7270/T5270/T3270)
The paper basket collects paper from the printer,
preventing it falling to the floor and becoming creased
or dirty.
If one sheet is to be collected, paper up to the following
sizes can be collected regardless of the paper type.
Maximum size when one sheet is collected
Paper Width
T7270 About 44 inches (1118 mm)
T5270 About 36 inches (914 mm)
T3270 About 24 inches (610 mm)
When collecting one sheet, use the paper basket in the
standard position.
Adjusting the
page 47
Note:
Close the paper basket before printing banners or other
documents that exceed the maximum length. Before the
paper ejected from the printer touches the floor, we
suggest that you take it in both hands close to the paper
eject guides and continue to lightly support it until
printing is complete.
The basket can hold up to 20 sheets of the same size
when you print in line drawing mode to plain paper
rolls of the following sizes.
When the paper basket will collect paper continually,
change the position of the paper basket in accordance
with the paper size to be stored.
Adjusting the
page 47
45
Paper Length
Approx.
46.8 inches
(1189 mm)
PositionU"Adjusting the Position" on
PositionU"Adjusting the Position" on
