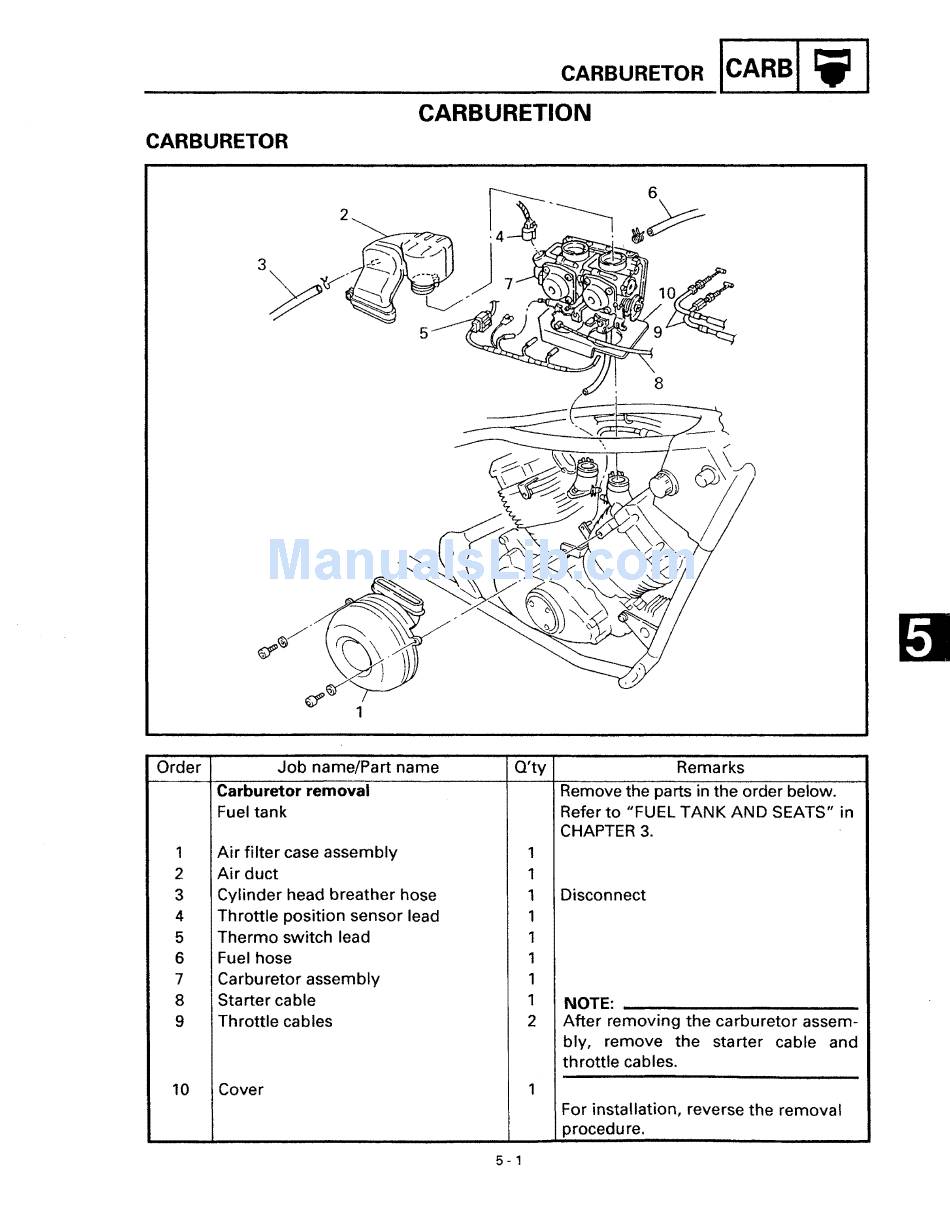

CARBURETOR
CARBURETOR
ICARBI
i11
CARBURETION
Order Job name/Part name Q'ty Remarks
Carburetor removal Remove the parts in the order below.
Fuel tank Refer to "FUEL TANK AND SEATS" in
CHAPTER 3.
1 Air filter case assembly
1
2
Air duct
1
3
Cylinder head breather hose
1 Disconnect
4
Throttle position sensor lead
1
5 Thermo switch lead 1
6 Fuel hose 1
7
Carburetor assembly 1
8 Starter cable
1
NOTE:
9 Throttle cables 2 After removing the carburetor assem-
bly, remove the starter cable and
throttle cables.
10 Cover 1
For installation, reverse the removal
procedure.
5 1
