General
8.2.1.11 CHANGING THE RELAY SWITCHING TIMES
The switching impulse times of the individual relays can be variably adjusted from 1s to 99s. This enables
you to adjust the duration of the opening impulse of the door according to your application.
All the relays on your ekey home control panel are preset at
Special feature relay time 0
If the value 0 is assigned to a relay in this menu, then a special function is active. In this case the relay is
bi-stable. This means that when a finger is recognized, the relay changes to its switched state and
remains there until another finger is recognized. That relay thereby works as a switch and does not emit
an impulse.
If there is a power cut or a RESET on the ekey home FS or the ekey home CP due to a
trouble signal in this operating mode (relay permanently closed), then the relay always
restarts in idle state once the power supply has been reconnected (or after the reset).
Contact NO = open!!
If you operate for instance an alarm system via relay permanent status (relay time =
0), then a power cut could deactivate the alarm system! You can also provoke a reset by
swiping 10 times in a row an unknown finger over the finger scanner! Therefore keep in
mind that this feature has limitations!!

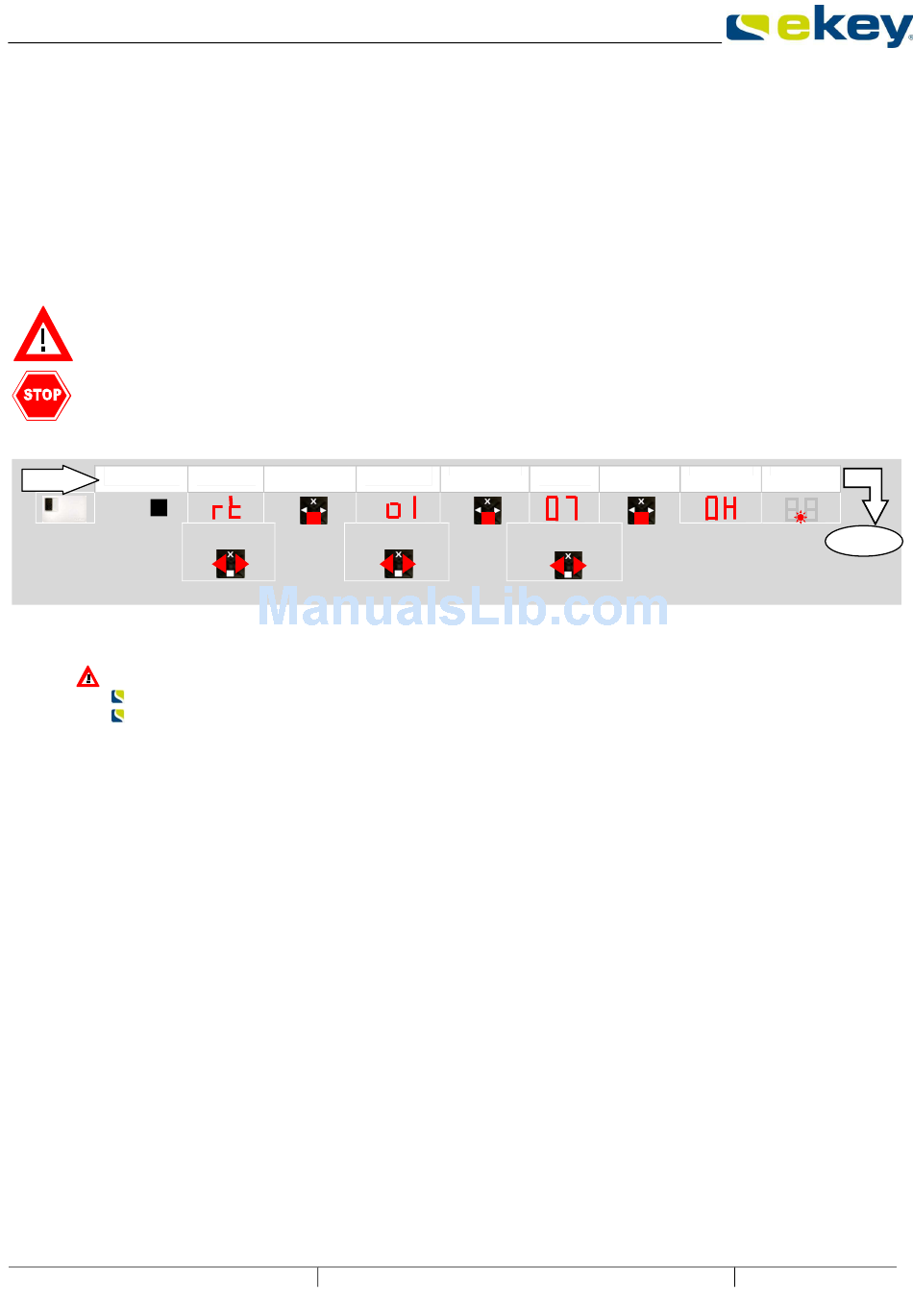

ENTER SE CURITY
STA RT
CODE
SEE
B:
1.) First enter the security code as per section 8.2.1.6
2.) Press the > button until "rt" is displayed
3.) Press the OK button
4.)
Only proceed with step 4 if you have an ekey home control panel with more than 1 relay:
ekey home CP IN 2
ekey home CP WM 3
Use the < and > buttons to select "o1", "o2", "o3" for the desired relay (NOT on ekey home CP
WM 1 and ekey home CP IN 1, as they only have one relay available!)
5.) Press the OK button
6.) Use the < and > buttons to set the desired duration of the switching impulse
0 = special feature „Switch"
1 = 1 sec
2 = 2 secs
.
.
99 = 99 secs
7.) Press the OK button
8.) "OK" will appear on the display for a short time. The device then returns to normal mode.
The duration of the impulse or the switching feature has therefore been set for the selected relay. Repeat
this procedure for each relay, the impulse duration of which you wish to change.
© ekey biometric systems GmbH
DISPLA Y +
KEY STROKE
SE TTING
Select MENU
Select RELAY
ITEM rt
Operating instructions ekey home
3
s impulse duration.
DISPLA Y +
KEY STROKE
DISPLA Y +
SE TTING
SE TTING
Switching time in
secs (0; 1-99)
KEY STROKE
DISPLA Y
DISPLA Y
Re laisschaltze it für das
ge wählte Re lais ist
e inge ste llt!
Page 22 / 41
FINISHED
