General
During the boot procedure (power up)

7.4 ELECTRIC CONNECTION

You can find further details such as the
pin assignment
wiring examples
either on the accompanying ekey home wiring diagram, or on the DVD as a .pdf file.
7.5 MOUNTING
You can find further information either on the accompanying ekey mounting instructions, or on the DVD
as a .pdf file.
ekey home control panels
8.

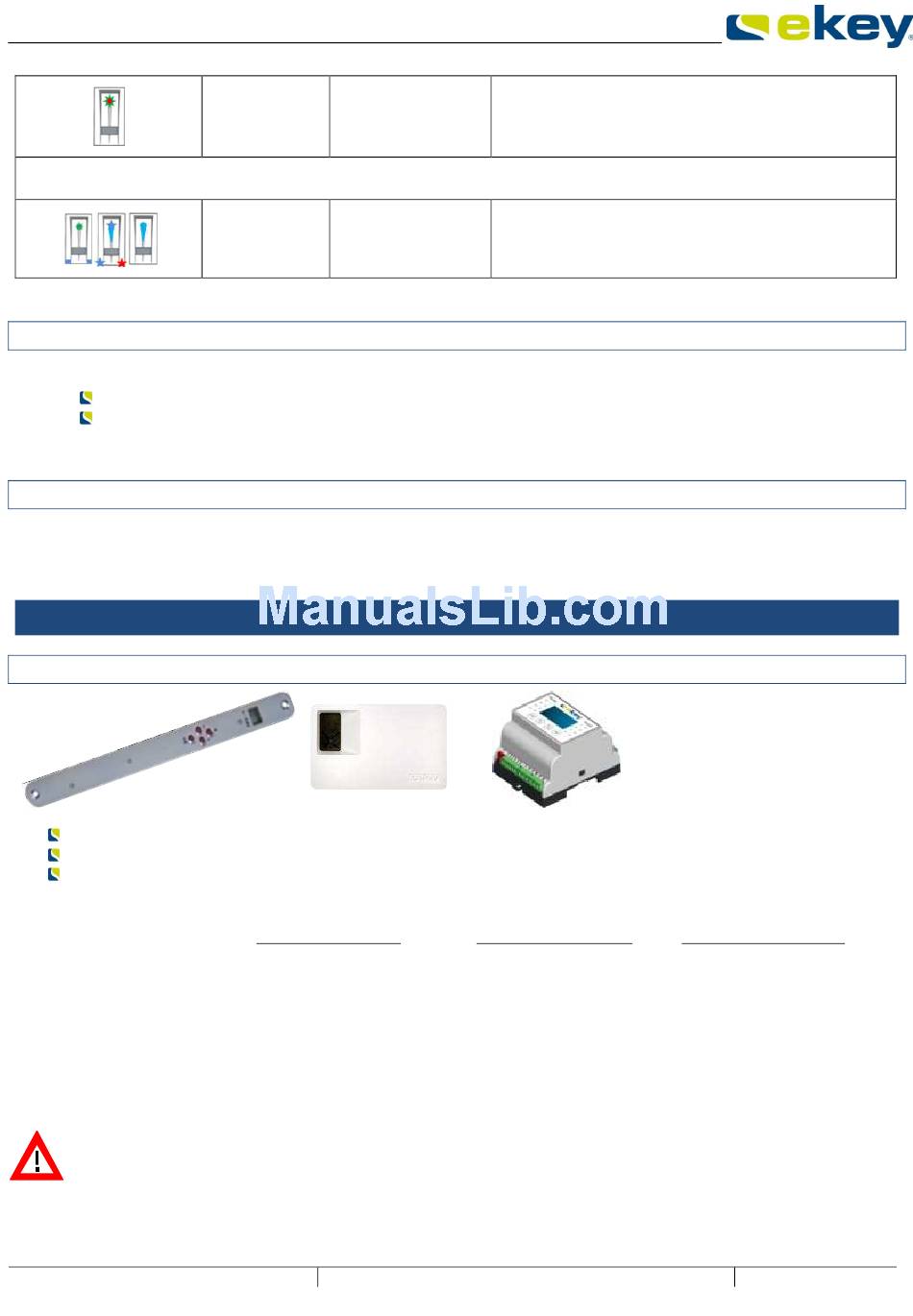

8.1 MODELS AND VERSIONS
There are 3 different ekey home control panel models.
ekey home CP IN – integrable into doors
ekey home CP WM – wall-mounted
ekey home CP DRM – 4HP DIN—rail mounted device
The individual control panels essentially differ in their method of installation. The method of operation,
however, is identical for the ekey home CP IN and the ekey home CP WM. The ekey home CP DRM is the
more recent model featuring an LCD display. In addition, the state of the relay outputs is indicated via
LEDs.
The ekey home control panels are the actuator units within the ekey home system. The finger scanner
transmits to the control panel which relay output has to be activated. This action is then executed on the
respective control panel. In addition, the system configuration is another important task of the ekey home
control panel. The respective settings (e.g. fingerprint enrollment, relay switching time, etc.) are defined
via the push buttons and the display.
The ekey home CP should always be mounted in a secured area (indoors). If you mount the control
panel outdoors, where anybody can have access to it, then unauthorized people could easily unlock
the door!
© ekey biometric systems GmbH
RED GREEN Left: OFF
flashing Right: OFF
Left: off – BLUE flash
GREEN
- off
BLUE flash
Right: off – RED flash
BLUE
- off
Operating instructions ekey home
The sensor is dirty, smudgy or wet. Clean the sensor!
The module is booting (powering up). It takes about 1-2s counting from
the moment when power supply is available.
Page 14 / 41
