ekey home

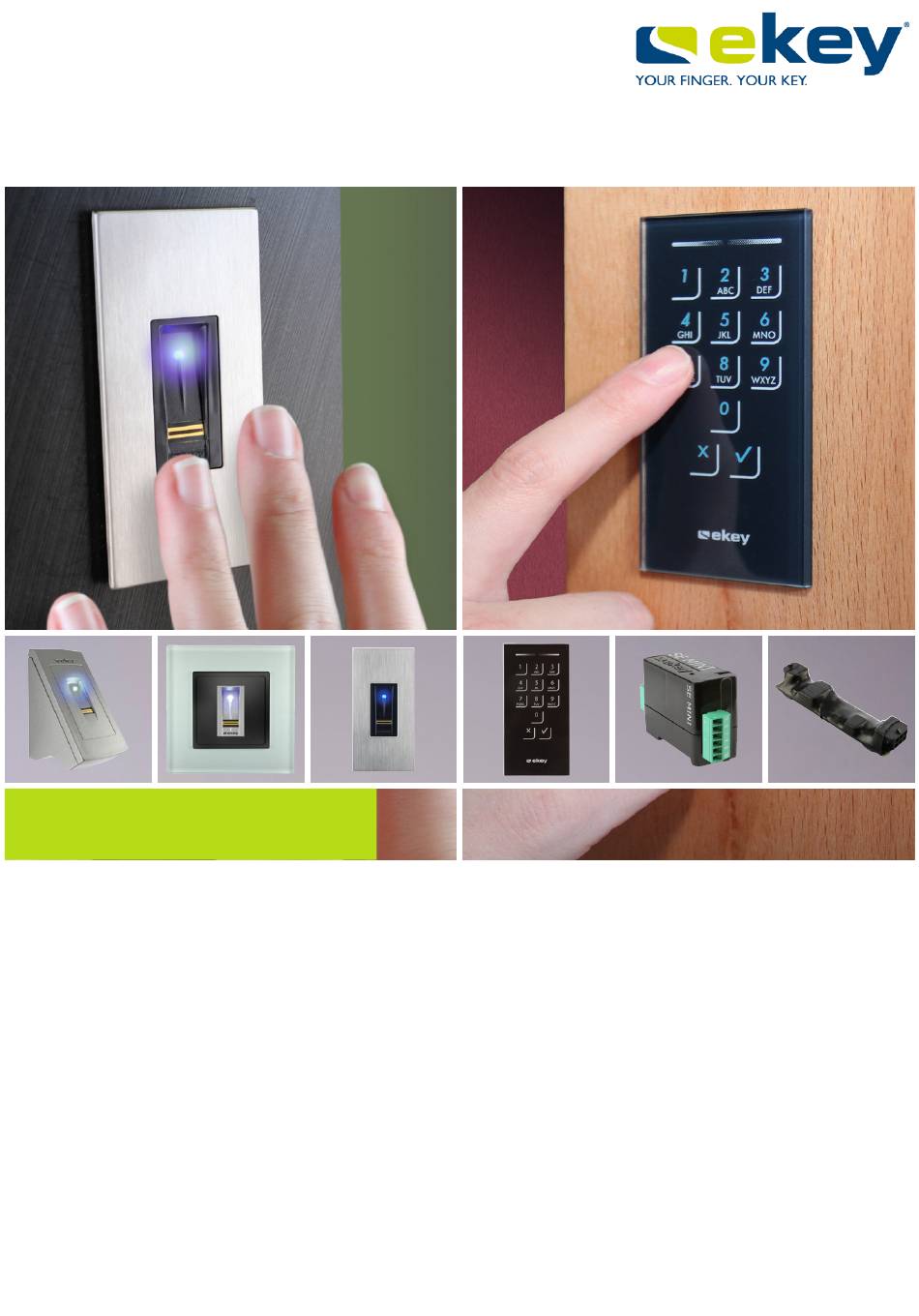

OPERATING INSTRUCTIONS
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the home series and is the answer not in the manual?

Questions and answers

Summary of Contents for eKey home series

  • Page 1 OPERATING INSTRUCTIONS...
  • Page 2: Table Of Contents

    English Translation of the original instructions – ID203/647/0/554 Table of contents General ..................3 Note ..................3 Declaration of conformity ............3 Product liability and limitation of liability ........3 Warranty and manufacturer's guarantee ........3 Copyright protection ..............3 Notices, symbols, and abbreviations ..........
  • Page 3 Via the finger scanner ............... 55 Via the code pad ..............57 Via the control panel ..............58 Via the digital input (ekey home control panel micro 1 only).... 59 Updating the software ..............59 Error displays and troubleshooting ..........60 Finger scanner .................
  • Page 4: General

    All content, artwork, and any ideas contained in these operating instructions are subject to applicable copyright laws. Any transmission, relinquishment, or transfer of this content or parts thereof to any third party requires the prior written consent of ekey biometric systems GmbH. Translation of the original documentation. en│3...
  • Page 5: Notices, Symbols, And Abbreviations

    References to sections of these instructions References to the mounting instructions References to the wiring diagram □ Listing without specified order, 1st level Displayed values Displayed value ekey home CP Product names mini MENU ITEM Menu items Buttons Button 4│en...
  • Page 6: Safety Information

    Registration unit Finger scanner or code pad Safety information DANGER All ekey home devices are to be operated with safety extra-low Risk of voltage (SELV). Only use power supplies rated protection class 2 electrocution according to VDE 0140-1. Failure to do so will create a risk of fatal electrocution.
  • Page 7: Product Description

    Product description System overview Fig. 1: Overview of the system 1 Registration unit 2 Power supply 3 Control panel 4 Distributor box 5 Motorized lock 6 Cable transfer 7 Connecting cable □ Registration unit Scope of delivery □ RFID transponder for finger scanners with RFID function □...
  • Page 8: Finger Scanner

    Finger scanner Function of the finger scanner 1 Front phalanx 2 Fingerprint Fig. 2: Fingerprint The finger scanner detects the fingerprint by means of a line sensor and subsequently processes it. It compares the result with that of the biometric information saved from the reference fingerprint image and opens the door in the event of a match.
  • Page 9 Correct operation of the finger scanner Incorrect operation will impair the function of the finger scanner. 'Swiping the finger': Step Figure Description Hold your finger straight and place it centrally between the guiding edges. Do not twist the finger. Place the joint of the front phalanx directly onto the sensor.
  • Page 10 'Holding up the RFID transponder': NOTICE The 'holding up the RFID transponder' option is only available for finger scanners with an RFID function. Step Figure Description Hold the RFID transponder face parallel to the finger swipe area of the finger scanner at a distance of 1 to 5 cm.
  • Page 11: Code Pad

    Code pad Function of the code pad The code pad captures the pin code with the capacitive keypad. The code pad compares what has been entered with the stored reference codes. The code pad can handle pin codes containing 4 to 8 digits. The digits in the pin code cannot all be the same;...
  • Page 12 Admin menu structure of the code pad There is a range of menu items available in the Admin menu for programming purposes. These can be called via the buttons. Button Menu item Store user code Delete user code Change admin code Reset system to default settings Set code pad (back-illumination, relay switching duration, acoustic and optical signal when button is pressed, acoustic...

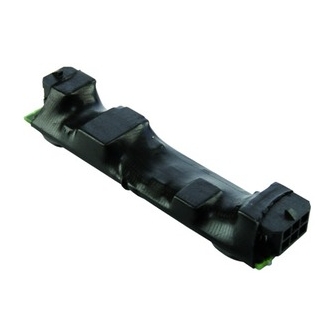

  • Page 13: Control Panels

    Button operation Function Press and hold button for Reset to default settings. 4 sec. Table 5: Button operation of ekey home CP mini 1/2 and ekey home CP micro 1 12│en...
  • Page 14: Technical Specifications

    Fingers RFID 99 (only for FS with RFID function) transponders Security 1:10,000,000 1:100 IP code WM, IN: 54 (front side) OM: 44 (with ekey frame FS OM) Reaction time 1–2 Operational Finger scans Approx. 10 million lifetime RFID Interface ISO14443A...
  • Page 15 VDC/A Temperature range °C -20 to -20 to -25 to IP code Digital inputs (only Quantity potential-free contacts may be connected) Table 8: Technical specifications: ekey home control panel mini 1/2 and ekey home control panel micro 1 14│en...
  • Page 16: Installation And Commissioning

    Close the covers. Connect the power supply to the The top status LED on the mains. ekey home CP mini 1 and ekey home CP mini 2 alternates between flashing green and orange and the LED on the ekey...
  • Page 17 Close the covers. Connect the power supply to the The top status LED on the mains. ekey home CP mini 1 and ekey home CP mini 2 alternates between flashing green and orange and the LED on the ekey...
  • Page 18: Performing Test Mode

    CP mini 1 or ekey home CP mini 2 lights up green and the LED on the ekey home CP micro 1 lights up green. The relay switches. NOTICE This means that you can keep your finger on the sensor for up to 5 sec. If the finger is kept on the sensor for longer than this, the relay will not switch.
  • Page 19: Operating Concept

    – administration of the finger scanner by means of administrator fingers □ ekey admin code – administration of the code pad by means of shortcuts. Go to the operating concept that relates to the registration unit you have purchased.
  • Page 20: Configuration Of Normal Mode And Usage Of The Finger Scanner With The App

    Configuration of normal mode and usage of the finger scanner with the app NOTICE The ekey home app can only be used in conjunction with the Bluetooth finger scanner. The system must have been commissioned before you start your system administration.
  • Page 21: Coupling A Mobile Device For The First Time

    NOTICE The intuitive ekey home app is now all you need for the administration of your Bluetooth finger scanner. Tap the required functions in the app and follow the instructions on the display.
  • Page 22: Changing Security Codes

    Changing You can change all security codes at any time: security codes □ the app security code □ the admin coupling code □ the user coupling code □ the control panel security code NOTICE The 4 to 6-digit app security code is required for the app security prompt. You can disable the prompt to enter the app security code under ADMINISTRATION if your mobile device supports secure lock...
  • Page 23: Storing Fingers

    Storing fingers You can store administrator and user fingers with the ekey home app. Step Instruction Select ADMINISTRATION. Select USER ADMINISTRATION. Press (Android) or (iOS). Enter the user name. Press New admin authorization New access authorization Select the relay to be switched.
  • Page 24: Disabling Bluetooth

    LED lights up orange. The coupling between the Bluetooth finger scanner and the mobile device is established. You can now start programming and managing the finger scan access control system via the ekey home app. en│23...
  • Page 25: Managing Multiple Bluetooth Finger Scanners

    Managing The ekey home app allows you to manage multiple Bluetooth finger multiple scanners. To switch between two Bluetooth finger scanners, you must Bluetooth reset the coupling between the Bluetooth finger scanner and the mobile finger device. scanners NOTICE When you reset the coupling, any relay names and user images that have been stored will be deleted.
  • Page 26: Storing The User Coupling Code

    Change the app security code □ Reset the coupling between the finger scanner and their mobile device. Step Instruction Start the ekey home app. Select ADMINISTRATION. Select CHANGE SECURITY CODES. Enter the required user coupling code in the corresponding field.
  • Page 27: Protecting The System In The Event That The Mobile Device Is Lost

    Step Instruction Start the ekey home app on the second mobile device. Couple the second mobile device with the Bluetooth finger scanner. Select ADMINISTRATION. Select CHANGE SECURITY CODES.
  • Page 28: Opening A Door

    Using the app The system is in normal mode. Step Instruction Start the ekey home app. The mobile device connects to the Bluetooth finger scanner. Select ACCESSES. Slide the slider of the door to be opened to the right.
  • Page 29 Using an RFID transponder NOTICE You can only open a door using an RFID transponder for finger scanners with an RFID function. The system is in normal mode. Step Action Description Display Hold a stored RFID The status LED lights up transponder up to the green.
  • Page 30: Configuration Of Normal Mode And Usage Of The Finger Scanner With Administrator Fingers

    Configuration of normal mode and usage of the finger scanner with administrator fingers The devices must have been commissioned before you start your system administration. See “Commissioning the system”, page 15. The finger scanner is ready to store the administrator fingers. The administrator fingers are used for programming the system.
  • Page 31 Step Action Description Display Administrator finger 1 was not stored. Swipe the finger over the sensor again. No action Status LED required. lights up orange, function LEDs flash green. To store administrator Status LED lights up blue. fingers 2, 3, and 4, carry out steps 2 and 3 for administrator fingers 2, 3, and 4.
  • Page 32: Storing User Fingers

    Storing user The system enables a maximum of 99 user fingers to be stored. fingers A user finger is any finger which is used for triggering an action on the control panel, e.g., opening a door. We recommend storing 2 fingers in each case.
  • Page 33 Status LED No action required. lights up blue. The user finger was stored. The system is in normal mode. NOTICE You can only store user fingers for relay 2 on the ekey home CP mini 2. 32│en...
  • Page 34: Storing Rfid Transponders

    Storing RFID The system enables a maximum of 99 RFID transponders to be stored. transponders An RFID transponder is able to trigger an action on the control panel, e.g., opening a door. NOTICE You can only store an RFID transponder with finger scanners with an RFID function.
  • Page 35 1. No action Status LED required. lights up blue. The RFID transponder was stored. The system is in normal mode. NOTICE You can only store RFID transponders for relay 2 on the ekey home CP mini 2. 34│en...
  • Page 36: Opening A Door

    Opening a The primary purpose of the product is to open doors. This can be carried door out using the finger scanner, an RFID transponder, or the digital input. The system is in normal mode. Using the finger scanner Step Action Description Display...
  • Page 37 You can also open the door using the digital input on the ekey home CP mini 1 and ekey home CP micro 1. The relay switches for at least 3 sec. If the digital input is activated for more than 3 sec, the relay switches for as long as the digital input is enabled.
  • Page 38: Deleting User Fingers

    Deleting user You can only delete individual fingers of a user if the person is present. fingers The system is in normal mode. Step Action Description Display Perform three Finger Status LED lights up blue, function Touches on the sensor LEDs light up within 5 sec.
  • Page 39: Deleting Rfid Transponders

    Deleting RFID You can only delete an individual RFID transponder if you have the RFID transponders transponder to hand. NOTICE You can only delete RFID transponders on finger scanners with an RFID function. The system is in normal mode. Step Action Description Display...
  • Page 40: Deleting All User Fingers And Rfid Transponders

    Step Action Description Display No action Status LED lights required. up blue. The RFID transponder was deleted. The system is in normal mode. Deleting all All user fingers and RFID transponders stored in the system are deleted. user fingers The administrator fingers are retained. and RFID The system is in normal mode.
  • Page 41 Step Action Description Display Swipe any user Status LED lights up red. finger/RFID transponder over the sensor in order to verify. No finger/RFID transponder should now be able to gain access. No action Status LED lights required. up blue. All user fingers and RFID transponders were deleted. The system is in normal mode.
  • Page 42: Configuration Of Normal Mode And Usage Of The Code Pad With Shortcuts

    Configuration of normal mode and usage of the code pad with shortcuts The devices must have been commissioned before you start your system administration. See “Commissioning the system”, page 15. The system is in normal mode. The keypad is used for programming the system.
  • Page 43 The system is in normal mode. Step Action Description Display Press to start the Status LED lights ✓ up yellow on the process of entering left. the admin code. Enter the admin code on the keypad. Press ✓. Status LED lights up green on the left.
  • Page 44: Changing The Admin Code

    Changing the This function allows you to change the existing admin code. The admin admin code code may contain between 4 and 8 digits. The digits cannot all be the same; at least one of them must be different. The admin code can be changed via the Admin menu. Enter the admin code to access the Admin menu.
  • Page 45 Step Action Description Display Enter the new admin code again on the keypad. Press ✓. Status LEDs light up green. Status LEDs light up red. The two entries do not match. The new admin code was not saved. Enter the admin code from the beginning again.
  • Page 46: Setting The Automatic Back-Illumination

    Setting the The brightness threshold for switching on the automatic back-illumination automatic can be set using percentage values. By default, the brightness threshold back- is set to 50%. Enter the required percentage value: illumination □ = automatic back-illumination off □ = brightness threshold settings between highly sensitive and highly insensitive.
  • Page 47: Setting The Brightness Of The Back-Illumination

    Setting the The brightness of the back-illumination can be set using 4 predefined brightness of modes. By default, the back-illumination is set to 100%. Enter the the back- number of the required illumination: illumination □ = back-illumination off □ 1 = back-illumination at 33% □...
  • Page 48: Setting The Relay Switching Duration

    No action Status LEDs are required. off. The relay switching duration was set. The system is in normal mode. NOTICE You can only set the relay switching duration for relay 2 on the ekey home CP mini 2. en│47...
  • Page 49: Setting The Signaling That Indicates When A Button Has Been Pressed

    Setting the 4 predefined modes can be used to set the acoustic and optical signaling signaling that that indicates when a button has been pressed. By default, the acoustic indicates when and optical signals indicating that a button has been pressed are on. Enter a button has the number of the required mode: been pressed...
  • Page 50: Setting An Acoustic Signal For Opening

    Setting an The acoustic signal for opening can be switched off and on. By default, the acoustic signal acoustic signal is switched on. Enter the number of the required status: for opening □ for switching off □ for switching on. The acoustic signal for opening is set via the Admin menu.
  • Page 51: Storing The User Code

    Storing the The system enables a maximum of 99 user codes to be stored. user code A user code is any pin code which is used for triggering an action on the control panel, e.g., opening a door. The user code may contain between 4 and 8 digits.
  • Page 52 Step Action Description Display Enter the required user code again on the keypad. Press ✓. Status LEDs light up green. Status LEDs light up red. The two entries do not match. The user code was not stored. Enter the admin code from the beginning again.
  • Page 53: Opening A Door

    If the digital input is enabled for longer than the defined relay switching duration, the relay switches for as long as the digital input is enabled. NOTICE This function does not exist for the ekey home CP mini 2, as there is no digital input available. 52│en...
  • Page 54: Deleting The User Code

    Deleting the You can delete individual user codes for a user. To do this, you require the user code user code to be deleted. A user code is deleted via the Admin menu. Enter the admin code to access the Admin menu. See “Entering the admin code”, page 41.
  • Page 55: Resetting The System To Default Settings

    You can reset the system to its default settings either via the app (Bluetooth finger scanners only), the registration unit, the control panel, or the digital input (ekey home control panel micro 1 only). Use whichever device is most easily accessible.
  • Page 56: Via The App

    The process of resetting to the default settings is initiated via the app. NOTICE The process of resetting to the default settings via the app is only possible for Bluetooth finger scanners. Step Instruction Start the ekey home app. Connect to the Bluetooth finger scanner. Select ADMINISTRATION. Select RESET SYSTEM.
  • Page 57 2. Wait for 5 sec. Status LED flashes blue. No action The top status required. LED on the ekey home CP mini 1/2 flashes orange/green and the LED on the ekey home CP micro 1 flashes green slowly.
  • Page 58: Via The Code Pad

    No action Status LEDs flash required. green alternately. No action The top status required. LED on the ekey home CP mini 1/2 flashes orange/green and the LED on the ekey home CP micro 1 flashes green slowly. The system was reset to its default settings. You can now recommission the system.
  • Page 59: Via The Control Panel

    Step Action Description Display The status LED Press the button using of the finger the operating rod (ekey scanner flashes home CP mini 1/2) or a blue and the small screwdriver (ekey status LEDs of the code pad home CP micro 1) and...
  • Page 60: Via The Digital Input (Ekey Home Control Panel Micro 1 Only)

    Step Description only) Disconnect the ekey home CP micro 1 from the mains supply. Press and hold the request-to-exit button or short-circuit the pins for the digital input and keep them in this state. Connect the ekey home CP micro 1 to the mains supply.
  • Page 61: Error Displays And Troubleshooting

    If these remedies do not solve the problem, contact your dealer. If the system has to be returned to ekey biometric systems GmbH, ensure that it is correctly packaged. Improper packaging can lead to the warranty being voided.
  • Page 62: Code Pad

    If these remedies do not solve the problem, contact your dealer. If the system has to be returned to ekey biometric systems GmbH, ensure that it is correctly packaged. Improper packaging can lead to the warranty being voided.
  • Page 63: Maintenance

    Maintenance The system is largely maintenance-free. The sensor surface of the finger scanner is essentially self-cleaning due to repeated use (swiping of fingers). However, if the finger scanner becomes soiled, clean it with a damp (not wet), non-abrasive cloth. Q-tips, microfiber cloths, and glasses-cleaning cloths are suitable for this purpose.
  • Page 64 Via Copernico, 13/A, I-39100 Bolzano Tel.: +39 0471 922 712 italia@ekey.net ID 203/647/0/554: Version 3, 2017-12-18 Media Center ID: 3004 www.ekey.net Made in Austria ekey biometric systems GmbH operates a quality management system in compliance with EN ISO 9001:2015 and is certified accordingly.
