Summary of Contents for eKey TOCAnet

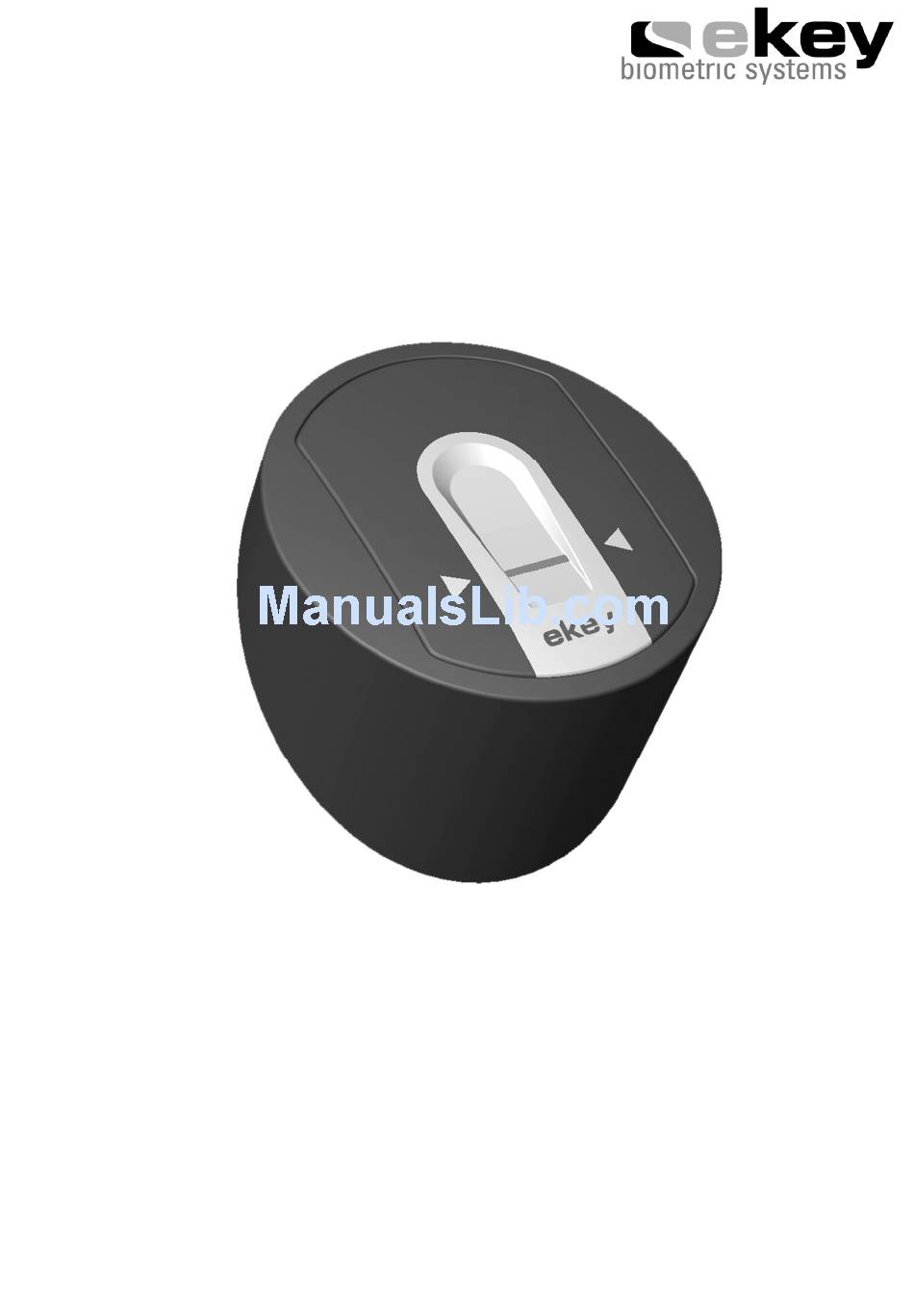

- Page 1 INSTALLATION MANUAL ekey TOCAnet ® Networked access system with fingerscan...
-
Page 2: Table Of Contents
Index of contents INDEX OF CONTENTS..............2 SCOPE OF SUPPLY ..............3 DEVICE OVERVIEW..............5 INSTALLATION ...............6 OPERATION ................8 POSSIBLE PROBLEM AREAS AND SOLUTIONS......9 TECHNICAL DATA ..............10 FURTHER INFORMATION ............10 NOTES ..................11 - 2 -... -
Page 3: Scope Of Supply
Scope of supply 1. Scope of supply Outside unit (“OU”) • Mounting plate for inside and outside unit • Inside unit (“IU”) • 4 screws and pins for outside unit • External power supply • User list • Warranty card •... - Page 4 Scope of supply Additional components which are necessary for operating ® an ekey TOCAnet installation In order to set up a fully functioning ekey TOCAnet installation the ® following hardware and software components are necessary. LAN/RS-485 converter Power supply for converter ®...
-
Page 5: Device Overview
Each of your fingers is unique and differs from the fingers of other persons. Relays ekey TOCAnet provides 3 relays for controlling external switchgear. ® The relays are equipped with a change-over contact, which is freely usable, the maximum switching power is 250V~5A. -
Page 6: Installation
Installation 3. Installation 3.1. Wall mounting of outside unit The ideal installation height is at approximately 135 cm / 52 inches (upper edge). At this height the fingerprint reader is ergonomically positioned for better reading of 180 cm 135 cm the finger surface as it is being swept. -
Page 7: Electrical Connection
The inside unit has to be supplied with electricity; its voltage is 9 VAC. Please use the “9VAC – in” connecting clamps and only use the power supply provided with your TOCAnet product. Inside and outside units have to be connected to the RS-485 bus using a bell wire or Cat 5/6 cable (see the connection scheme below). -
Page 8: Operation
Operation 4. How to swipe a finger correctly over the sensor In order for the reader to properly scan and recognize a particular finger, the finger needs to be positioned and swept correctly over the sensor as outlined below: a. Locate the reader sensor between the 2 green illuminated arrows. b. -
Page 9: Possible Problem Areas And Solutions
LED of external unit is Data lines Rx and Tx are Interchange data lines illuminating orange connected in the wrong although the software order to the outside unit. ® configuration in “ekey TOCAnet Admin” is done correctly - 9 -... -
Page 10: Technical Data
• FAR: approx. 1,0 x 10 -5 at FRR 1,4 x 10 -2 Lifyecycle • approx. 1 million uses Further information Please find further information on our homepage www.ekey.net. There you can find up-to-date hints and FAQ’s. - 10 -... -
Page 11: Notes
Notes 7. Notes - 11 -... - Page 12 Copyright by ekey biometric systems, subject to changes, errors and omissions excepted. No responsibility is accepted for the correctness of the information given. ekey biometric systems GmbH & Co KG Lunzerstraße 64 A-4030 Linz www.ekey.net - 12 -...
