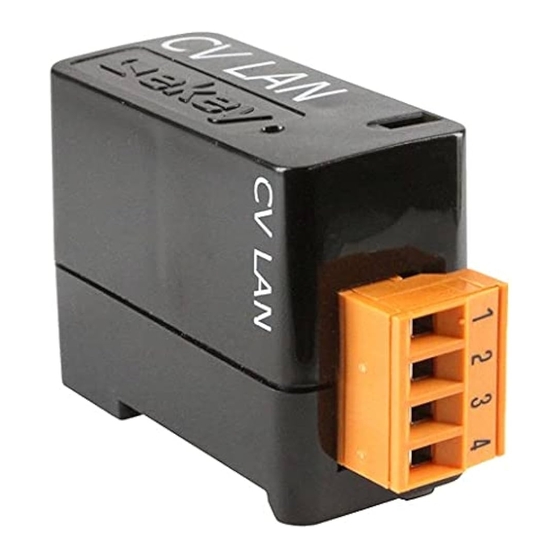

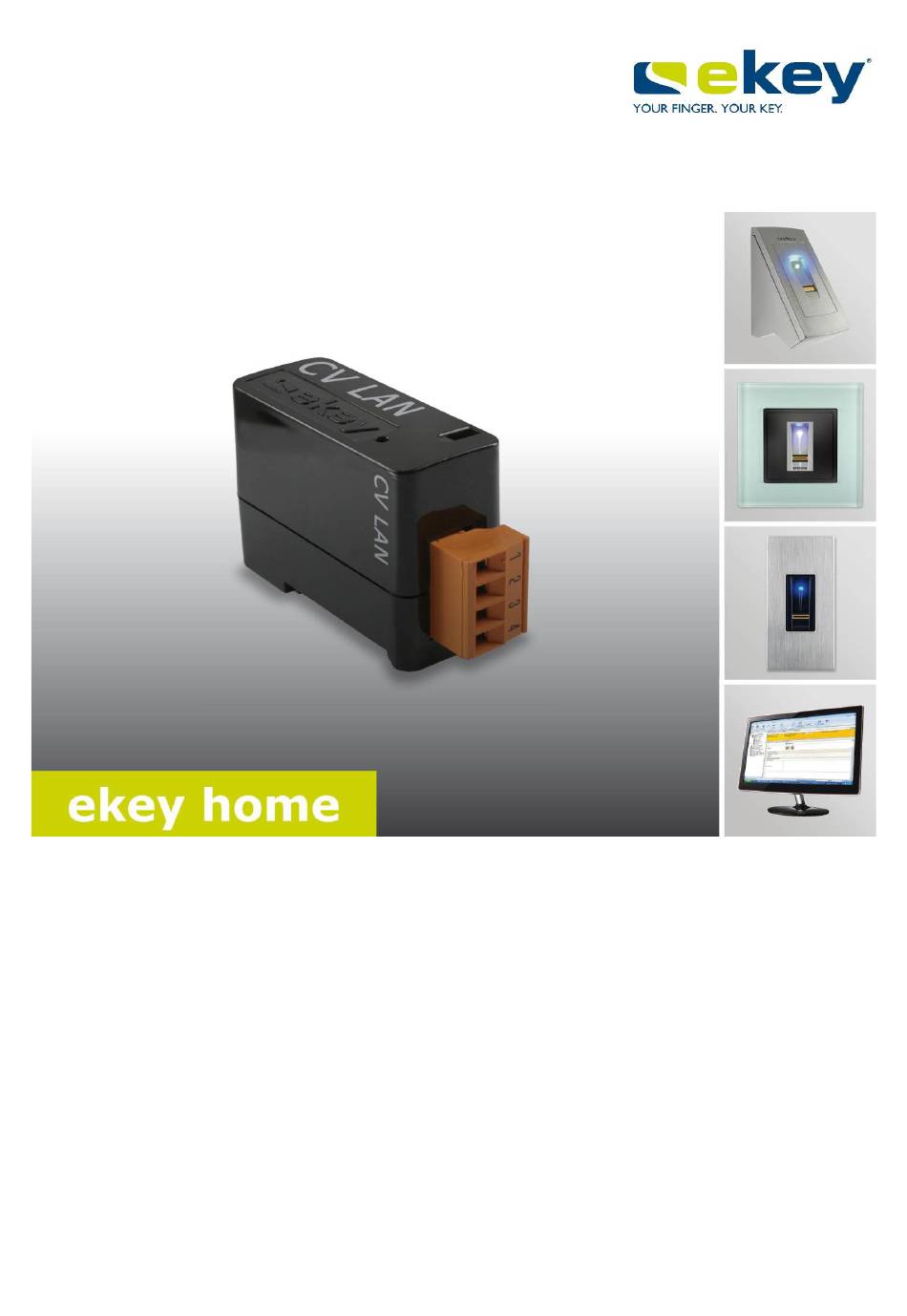

- Page 1 OPERATING ekey home converter LAN INSTRUCTIONS RS-485 ID 51/491/0/326: Version 4, 2015-11-12; Media Center ID: 3009...
-
Page 2: Table Of Contents
4.8.2 Software requirement ..................13 Technical specifications .................... 13 System setup ......................14 ekey home variant ....................14 ekey multi variant ....................15 Converter configuration .................... 16 Preparing for configuration ..................16 Integrating the converter into the network .............. 17 Configuring data packets .................. -
Page 3: General
General ekey biometric systems GmbH operates a quality management system in compliance with EN ISO 9001:2008 and is certified accordingly. Note These instructions form a component of the product. Ensure that they are stored in a safe place. Please contact your dealer for further information about the product. -
Page 4: Notices, Symbols, And Abbreviations
ID. RS-485 bus Totality of all ekey home/multi devices which are networked serially via a 2-core cable, including the ekey home converter LAN RS-485 User Datagram Protocol. The User Datagram Protocol is used to send unique data packets to applications on the network. -
Page 5: Safety Information
Life-threatening danger resulting from electricity DANGER All ekey home devices are to be operated with safety extra-low voltage (SELV). Only use power supplies rated protection class 2 according to VDE 0140-1 to supply ekey home devices. Failure to do so will create a risk of electrocution. -
Page 6: Scope Of Delivery
Requirements for the user No particular skills or knowledge are needed to use the ekey home or ekey multi system with LAN RS-485 converter. No alterations or servicing should be carried out after the system has been correctly commissioned by qualified personnel, unless the fundamental system properties (network structure, addressing, etc.) change. -
Page 7: Lan Rs-485 Converter
Ethernet network. A receiver (data sink) can interpret this data packet and set a defined event. The converter supports three protocol types: rare, home, and multi. Configuration of the protocol type and the network settings is carried out using the ekey home converter LAN config software. -
Page 8: Default Settings
10/100 LED off. LAN speed 10 Mb. 10/100 LED on. LAN speed 100 Mb. Table 2: Visual signals of ekey home CV LAN RS-485 4.6.3 Default settings The LAN RS-485 converter comes with the following default settings. ekey converter LAN RS-485 IP address 192.168.1.250... -
Page 9: Protocol Types
The spacer takes effect in the home and multi protocols. 4.7.1 Structure of a data packet with the rare protocol The rare protocol can only be used in ekey home systems. This protocol has the following structure: Position Data set... - Page 10 Calculating the address of the finger scanner The serial number of the finger scanner is required to calculate the address. This can be found on the label attached to the finger scanner. The serial number is composed of multiple parts: Part no.
-
Page 11: Structure Of A Data Packet With The Home Protocol
Structure of a data packet with the home protocol The home protocol can only be used in ekey home systems. Data packets are created for each recognized finger and every time a refusal takes place at the finger scanner. The data fields within the data packet are ASCII-encoded. -
Page 12: Structure Of A Data Packet With The Multi Protocol
Structure of a data packet with the multi protocol The multi protocol can only be used in ekey multi systems and is essential for this system. Data packets are sent for each recognized finger or each time a refusal takes place at the finger scanner, and when the digital input is enabled. -
Page 13: Configuration Tool
1_0003_JOSEPH---_1_7_2_80156809150025_GAR-_3_- Configuration tool The ekey home converter LAN config software serves as a configuration tool. This can be found on the CD supplied with the ekey home converter LAN RS-485 and is also available to download from the ekey homepage. Click on the following link to go to the download area: http://www.ekey.net. -
Page 14: System Setup
5 Third-party system 6 Control panel The ekey home variant comprises a finger scanner, a control panel, a converter, and an interface to the third-party system. The converter transmits the defined data packet from the finger scanner to the third-party system. -
Page 15: Ekey Multi Variant
5 Finger scanner 1-4 6 Control panel The ekey multi variant comprises up to four finger scanners, a control panel, a converter, and an interface to the third-party system. The converter transmits the defined data packet from each finger scanner to the third-party system. -
Page 16: Converter Configuration
Network cable; □ Power supply. The PC must be on the same network as the ekey home converter LAN RS-485 if you have already commissioned your system. NOTICE Connect the ekey home converter LAN RS-485 to your PC without a router. -
Page 17: Integrating The Converter Into The Network
Select the converter and go to step Variant b: The start screen is displayed and no ekey home converter LAN RS-485 is displayed in the device list on the left. - Page 18 Instruction The input screen opens on the right-hand side of the configuration tool. Specify the MAC address of the ekey home converter LAN RS-485. The 12-digit MAC address can be found on the label on the bottom of the converter.
-
Page 19: Configuring Data Packets
Step Instruction After a few seconds, the configured ekey home converter LAN RS-485 appears in the device list on the left. The ekey home converter LAN RS-485 is accessible on the network and ready for data packet configuration. Serial# Version 169.254.224.99... - Page 20 Only data transmission works with the ekey home converter LAN RS-485. The communication type must therefore remain set to data transmission only NOTICE Adapt the data packet in line with the options for the receiver (data sink). See the documents provided by the third-party system supplier for information on how to do this.
- Page 21 Step Instruction Enter the receiver port and receiver IP address in the input fields. Select a spacer and the protocol type. Click on Apply. Configuration of the data packet is complete. The converter is ready for installation. If the converter is already integrated into the system, installation is not required. en│21...
-
Page 22: Installation
Installation ATTENTION Mount and cable the product correctly before connecting power. Possible property damage! Do not connect the grid supply beforehand! Mount the system in accordance with the supplied mounting instructions. Cable the system in accordance with the supplied wiring diagram. Step Figure Description... -
Page 23: Updating The Software
The software update is initiated via the configuration tool. The system must be prepared for the update. See Preparing for configuration, page 16. Step Instruction Start the ekey home converter LAN config software. The start screen is displayed. Select the converter you want to update. Click on Update x.x.x.x. -
Page 24: Restarting The Converter
Step Instruction After a few seconds, the updated ekey home converter LAN RS-485 appears in the device list on the left. The converter has been updated. 10 Restarting the converter A restart is initiated via the converter. The configured settings of the converter remain unaffected. -
Page 25: Resetting Default Settings
See Preparing for configuration, page 16. Step Instruction Start the ekey home converter LAN config software. The start screen is displayed. Select the converter you want to reset. Click on Assign IP / reset converter. -
Page 26: Resetting Via The Hardware
The default settings are displayed on the input screen. Click on Apply. After a few seconds, the ekey home converter LAN RS-485, which is not configured, appears in the device list on the left. The converter has been reset to its default settings. You can now recommission the system. -
Page 27: Maintenance
All content, artwork, and any ideas contained in these operating instructions are subject to applicable copyright laws. Any transmission, relinquishment, or transfer of this content or parts thereof to any third party requires the prior written consent of ekey biometric systems GmbH. Translation of the original documentation. - Page 28 Via Copernico, 13/A, I-39100 Bolzano Phone: +386 1 530 94 89 Phone: +39 0471 922 712 info@ekey.si italia@ekey.net www.ekey.net Made in Austria ekey biometric systems GmbH operates a quality management system in compliance with EN ISO 9001:2015 and is certified accordingly.
